DTC P0011: [BP] CMP - Timing Over-Advanced: Notes

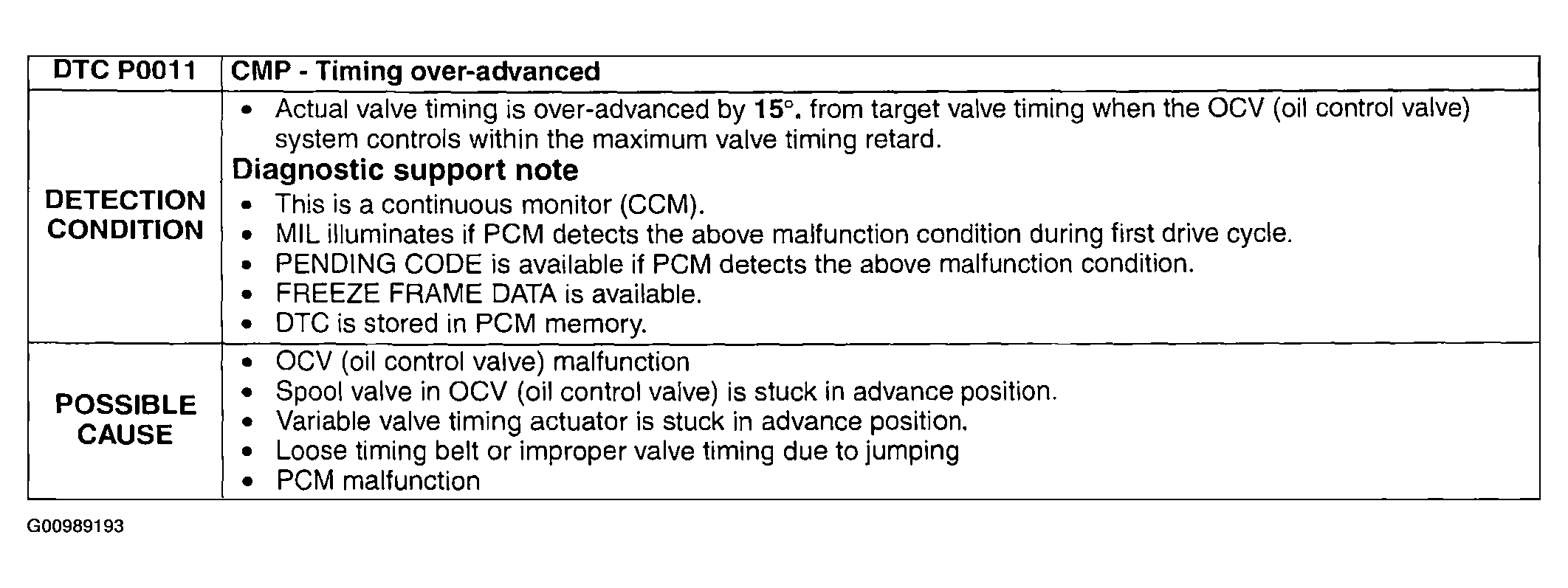

Fig 1: Possible Causes - DTC P0011 [BP]

G00989193

Courtesy of MAZDA MOTORS CORP.
