Combination Switch Connector End View

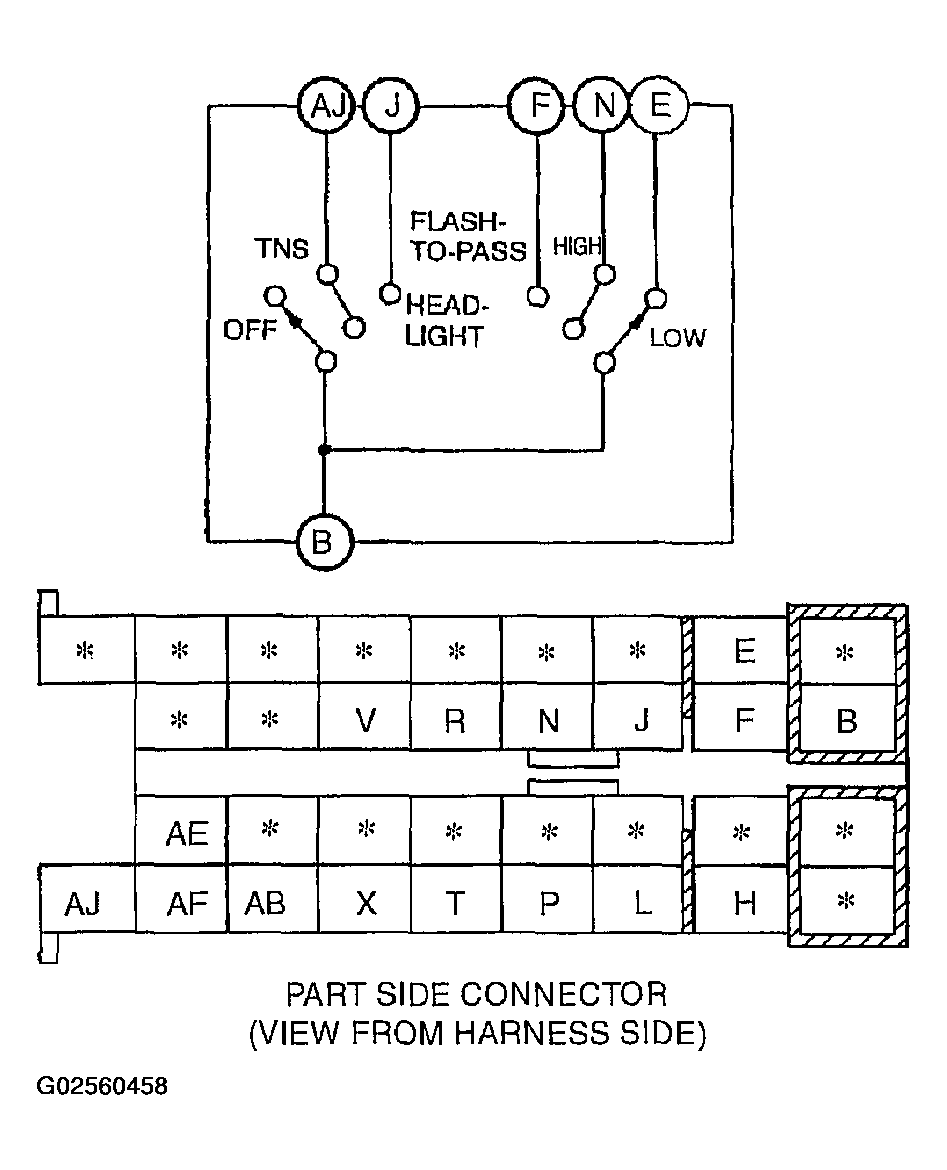

Fig 1: Combination Switch Connector End View

G02560458

Courtesy of MAZDA MOTORS CORP.
