Diagnostic Procedure

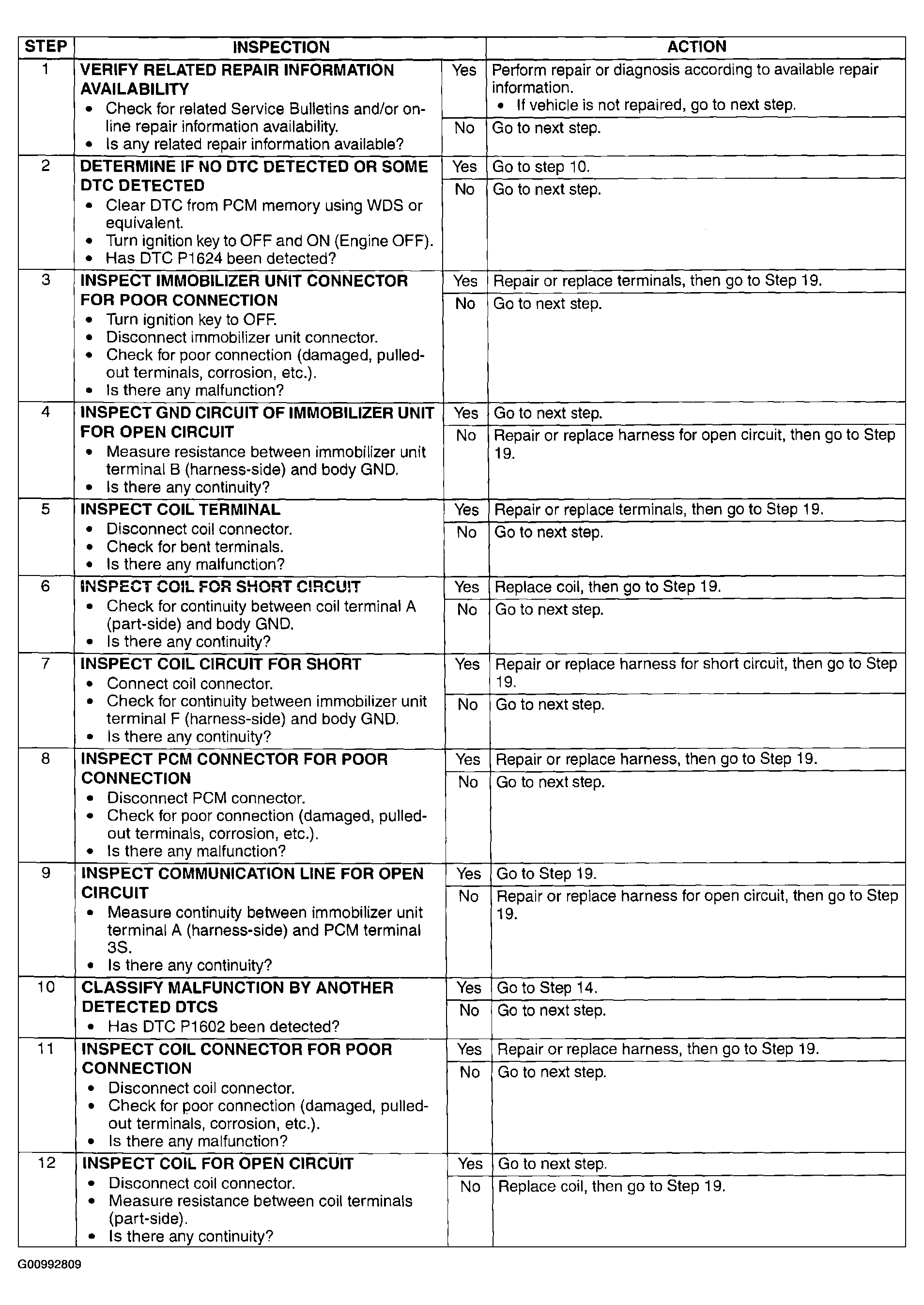

Fig 1: Diagnostic Procedure - DTC P1602 [BP, BP With TC] (Steps 1-12)
G00992809Courtesy of MAZDA MOTORS CORP.

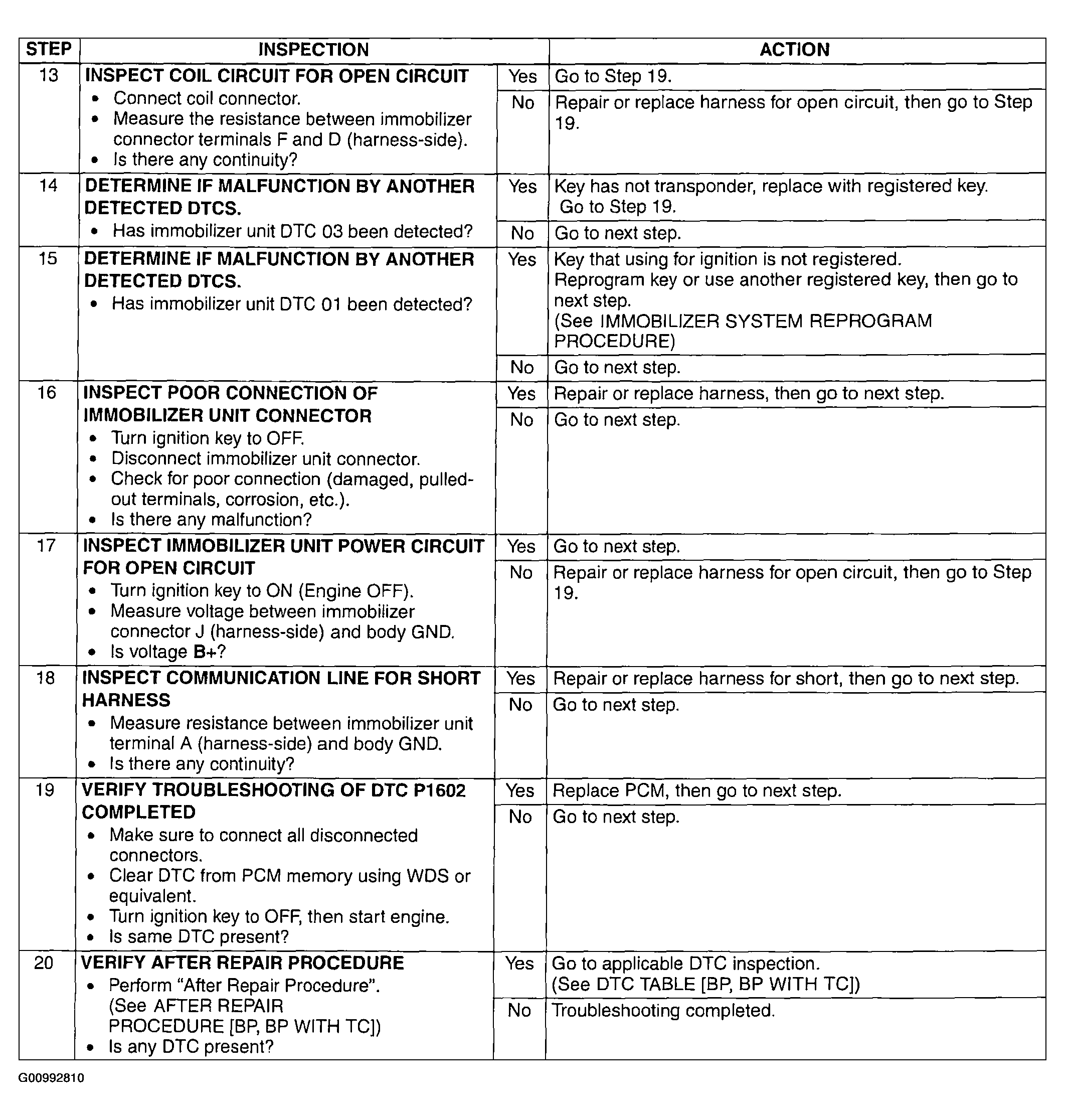

Fig 2: Diagnostic Procedure - DTC P1602 [BP, BP With TC] (Steps 13-21)
G00992810Courtesy of MAZDA MOTORS CORP.
