DTC P0443: Evaporative Emission Control System Vent Control Malfunction
>>
Notes
DTC P0443: Evaporative Emission Control System Vent Control Malfunction: Notes

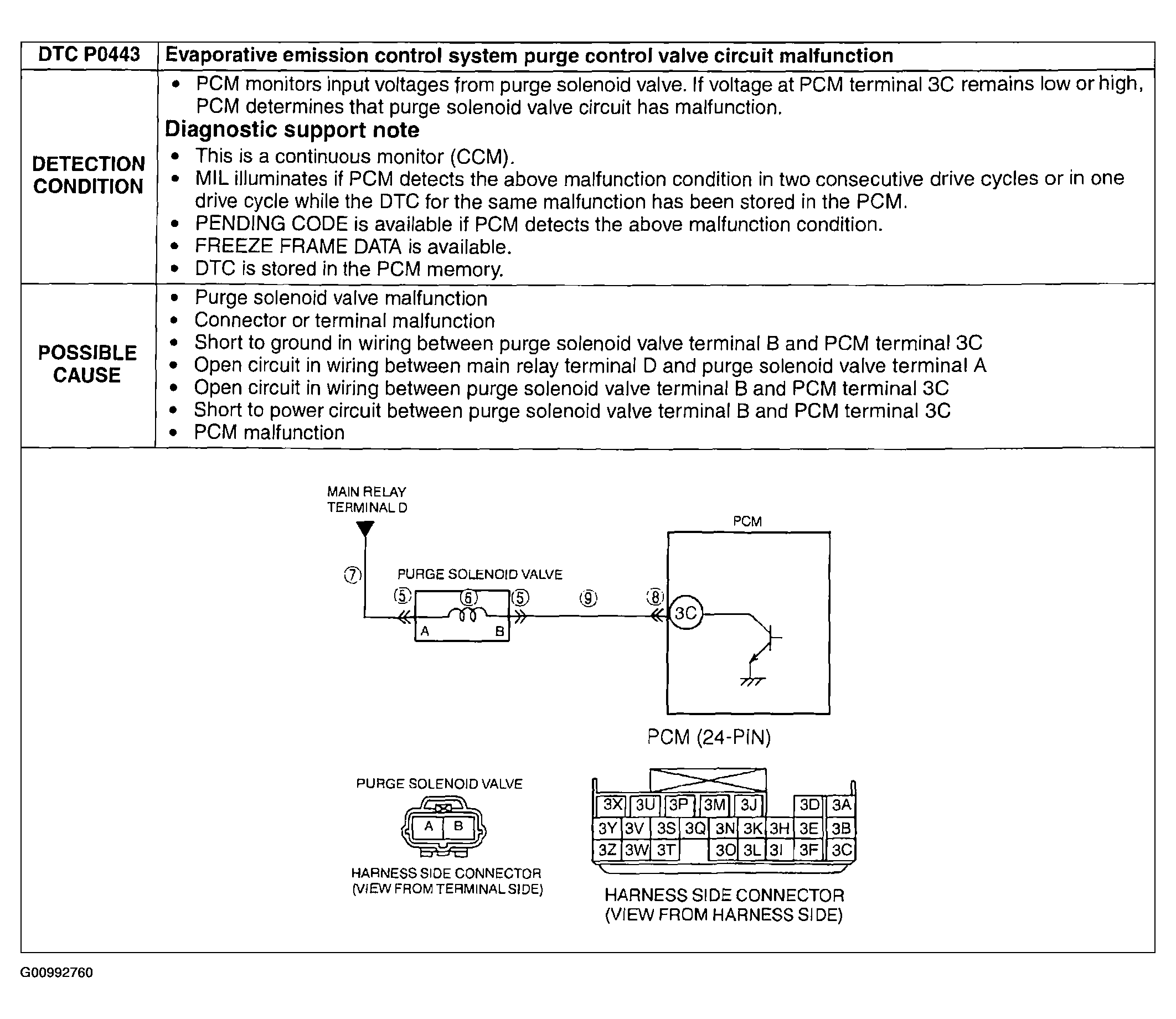

Fig 1: Possible Causes - DTC P0443 [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
