Home >> Mazda >> 2004 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic (Engine Control System BP, BP With TC] >> DTC P0096: [BP With TC] IAT No.2 Circuit Performance Problem >> Notes

DTC P0096: [BP With TC] IAT No.2 Circuit Performance Problem: Notes

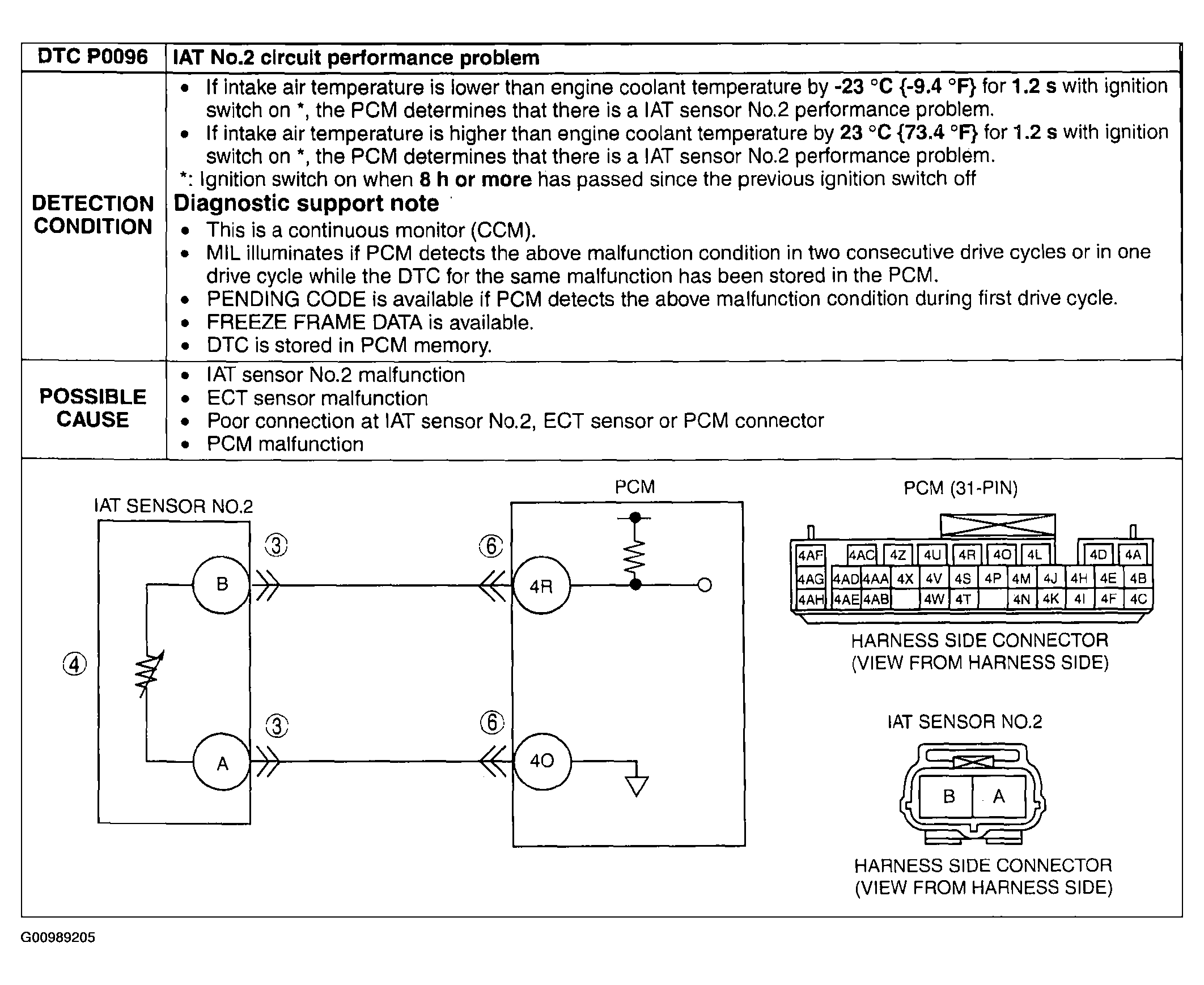

Fig 1: Possible Causes - DTC P0096 [BP With TC]

G00989205

Courtesy of MAZDA MOTORS CORP.
