MX-5 Miata Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic (Engine Control System BP, BP With TC]
>>
Control System Wiring Diagram [BP With TC]
Control System Wiring Diagram [BP With TC]

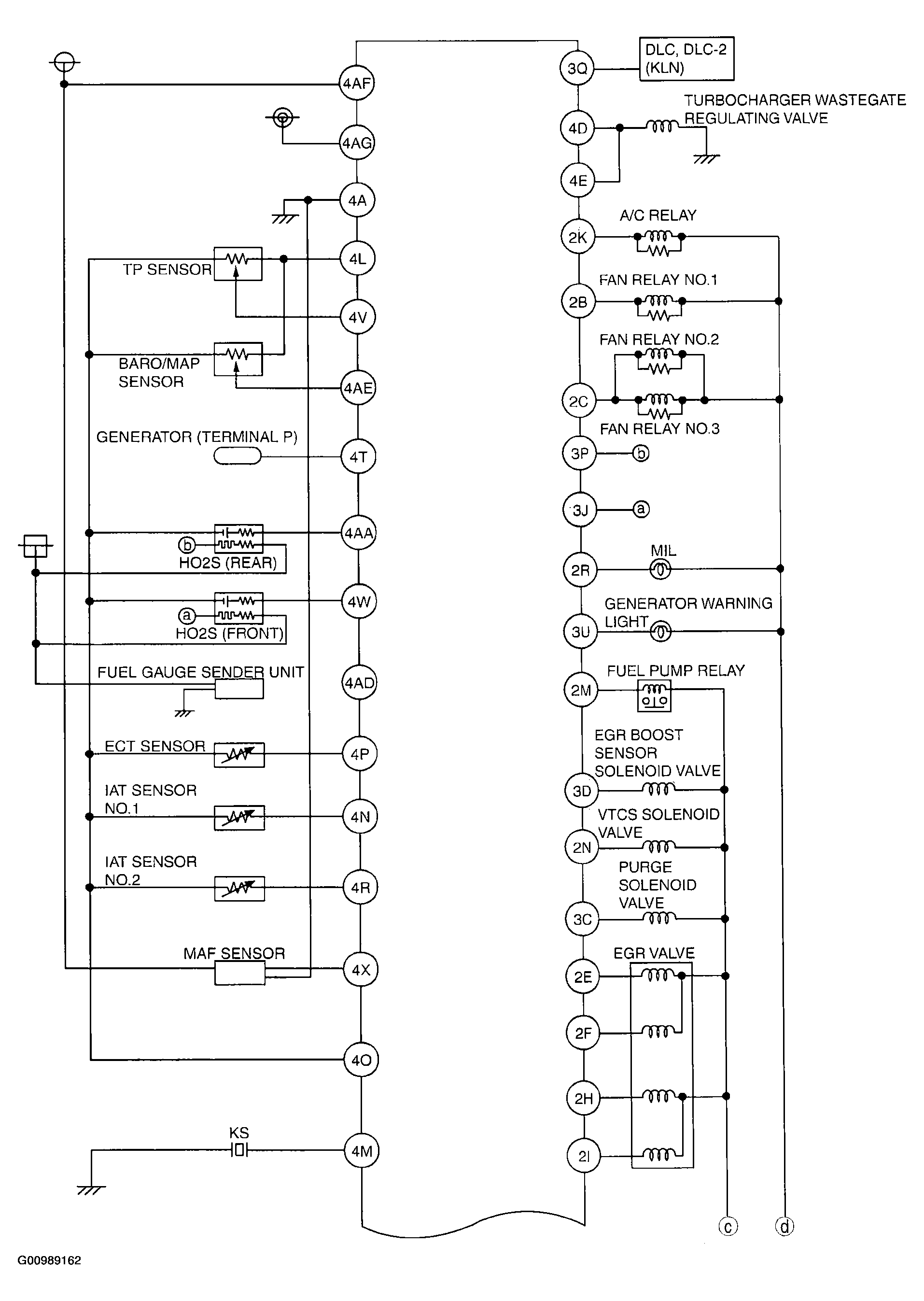

Fig 1: Control System Wiring Diagram - BP With TC (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

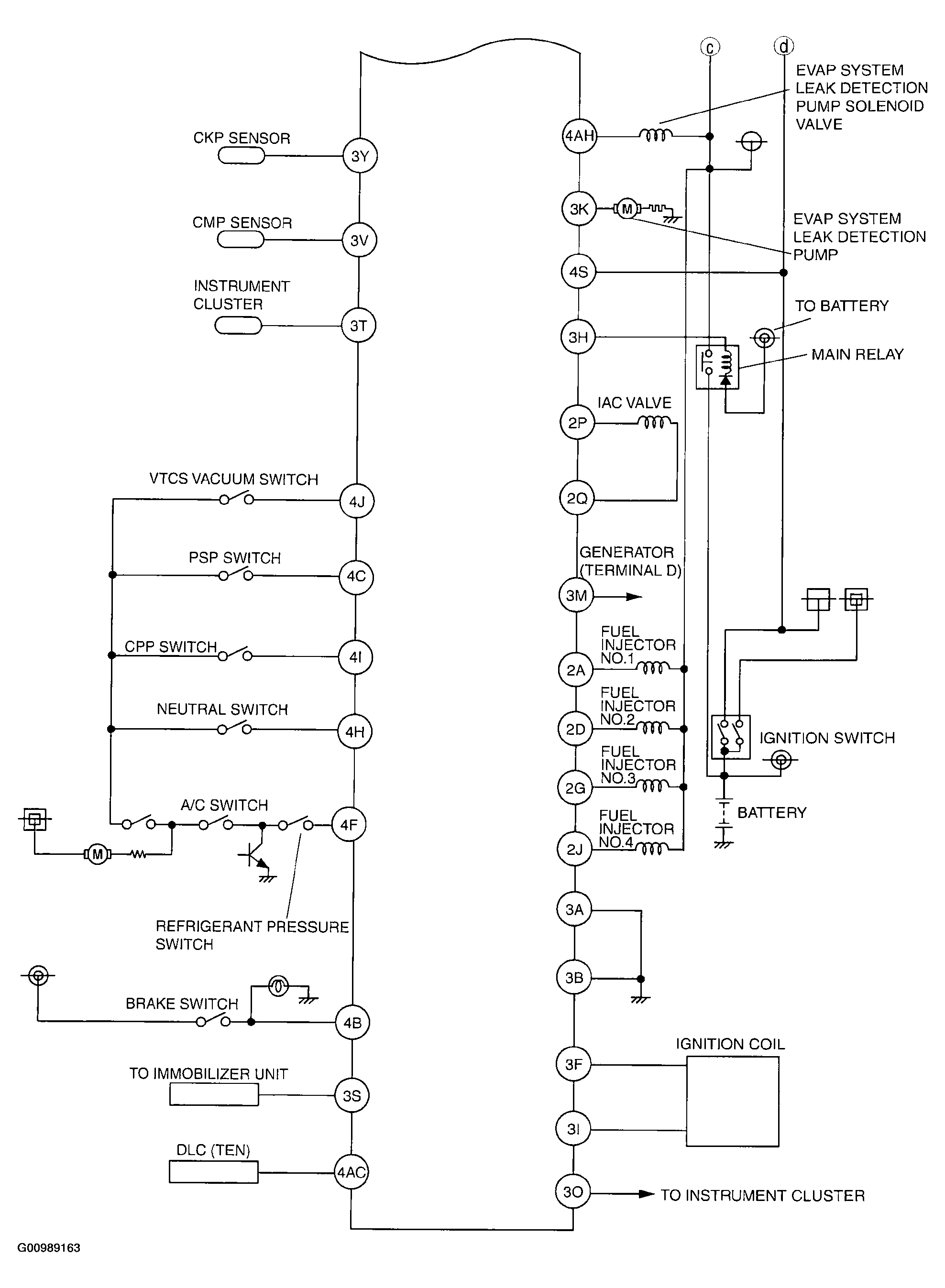

Fig 2: Control System Wiring Diagram - BP With TC (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
