DTC 12: Cruise Control Switch (Resume/ACCEL Switch)

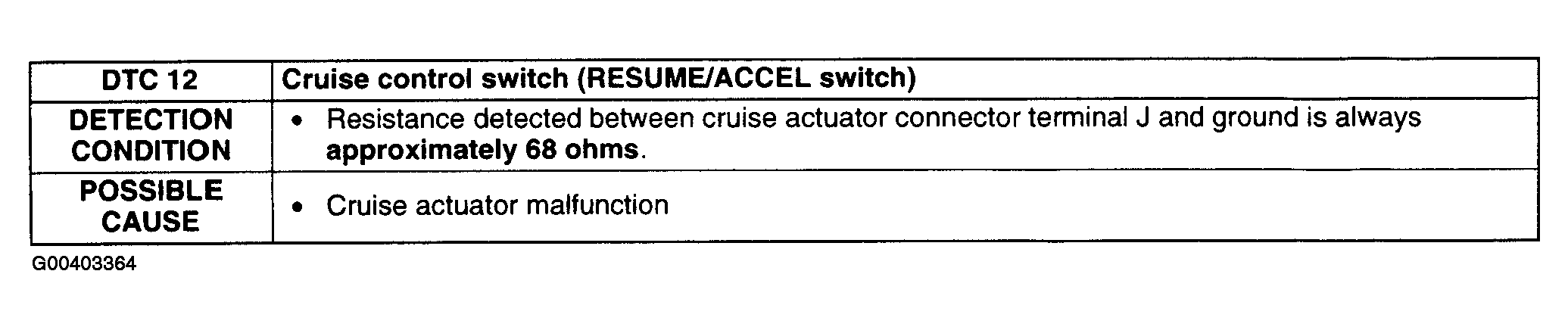

Fig 1: DTC 12 Detection Condition & Possible Cause

G00403364

Courtesy of MAZDA MOTORS CORP.

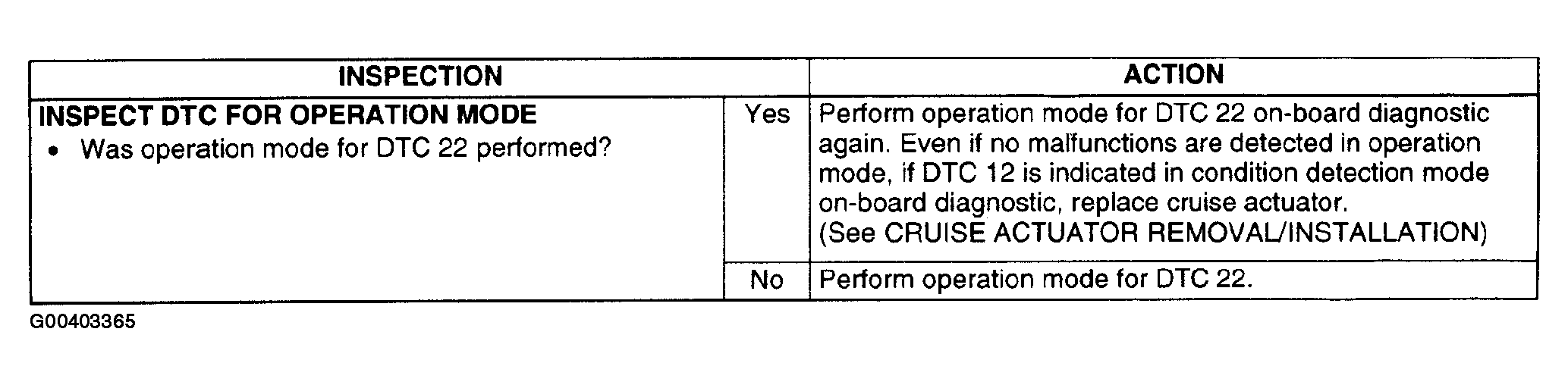

Fig 2: DTC 12 Diagnostic Procedure

G00403365

Courtesy of MAZDA MOTORS CORP.
