MPV ES
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Symptom Troubleshooting [Automatic Transaxle]
>>
Automatic Transaxle Symptom Troubleshooting
>>
Diagnostic Index
Diagnostic Index
Use, the chart below to verify the symptoms of the trouble in order to diagnose the appropriate area.

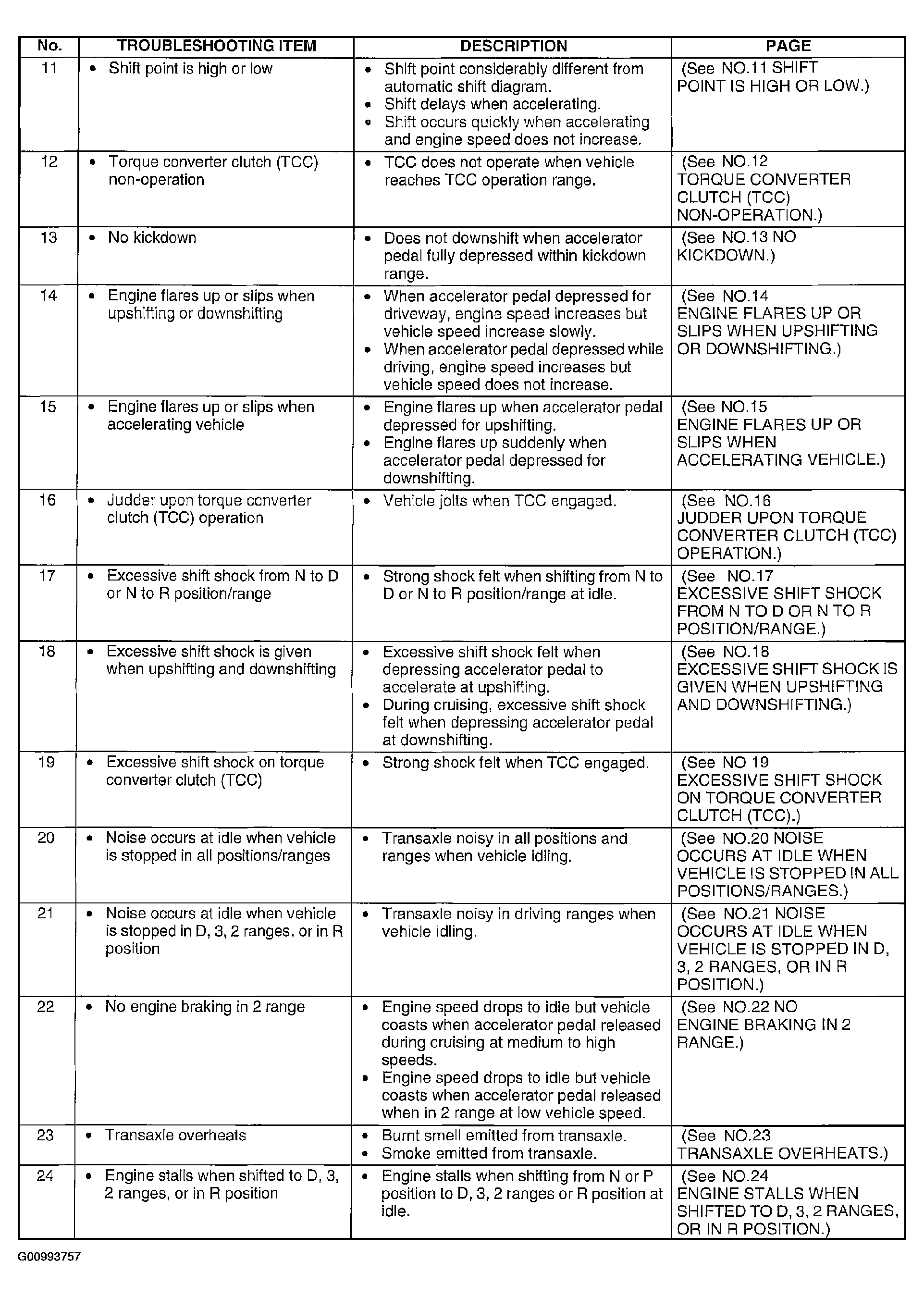

Fig 1: Automatic Transaxle Symptom Troubleshooting (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

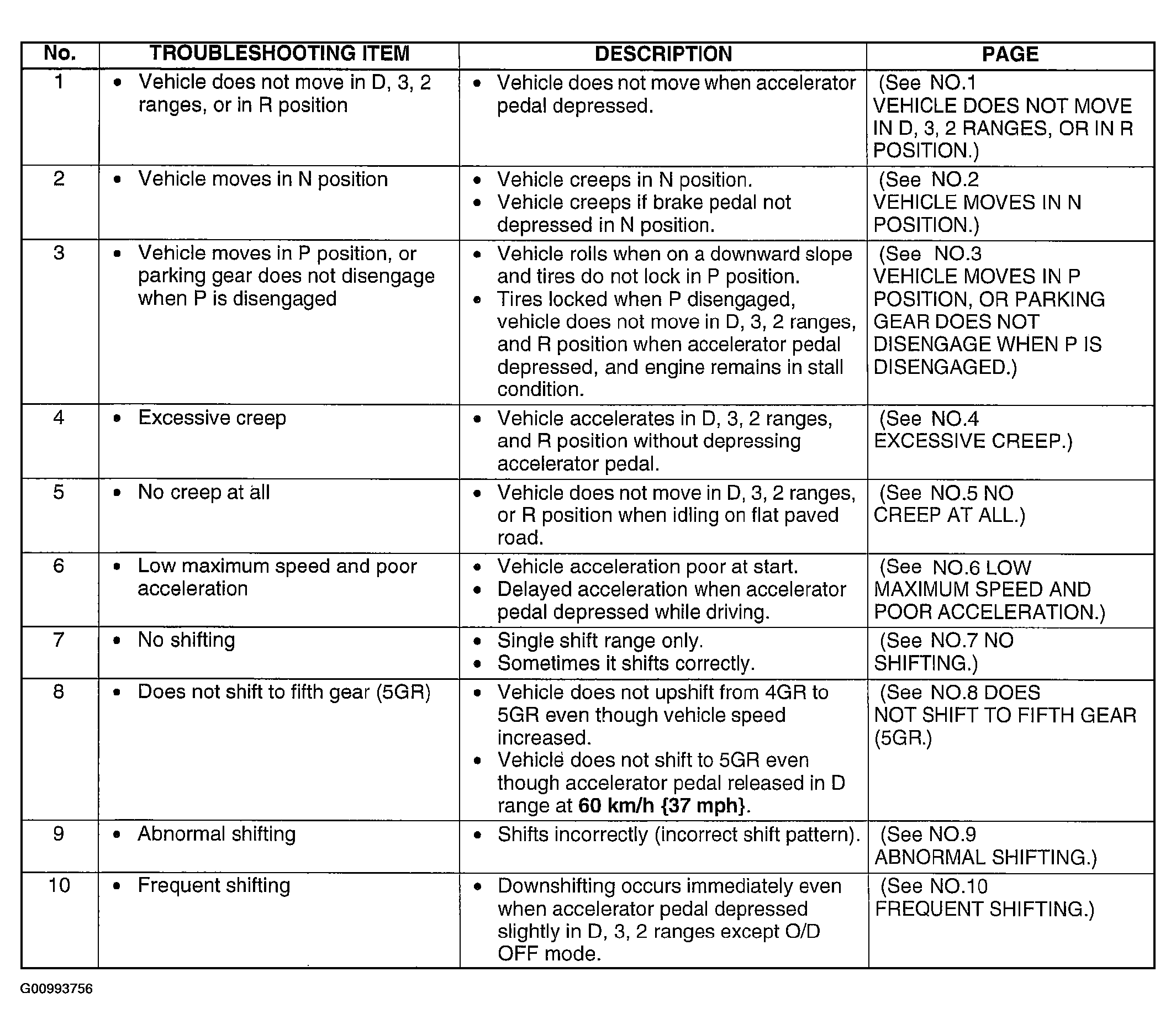

Fig 2: Automatic Transaxle Symptom Troubleshooting (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

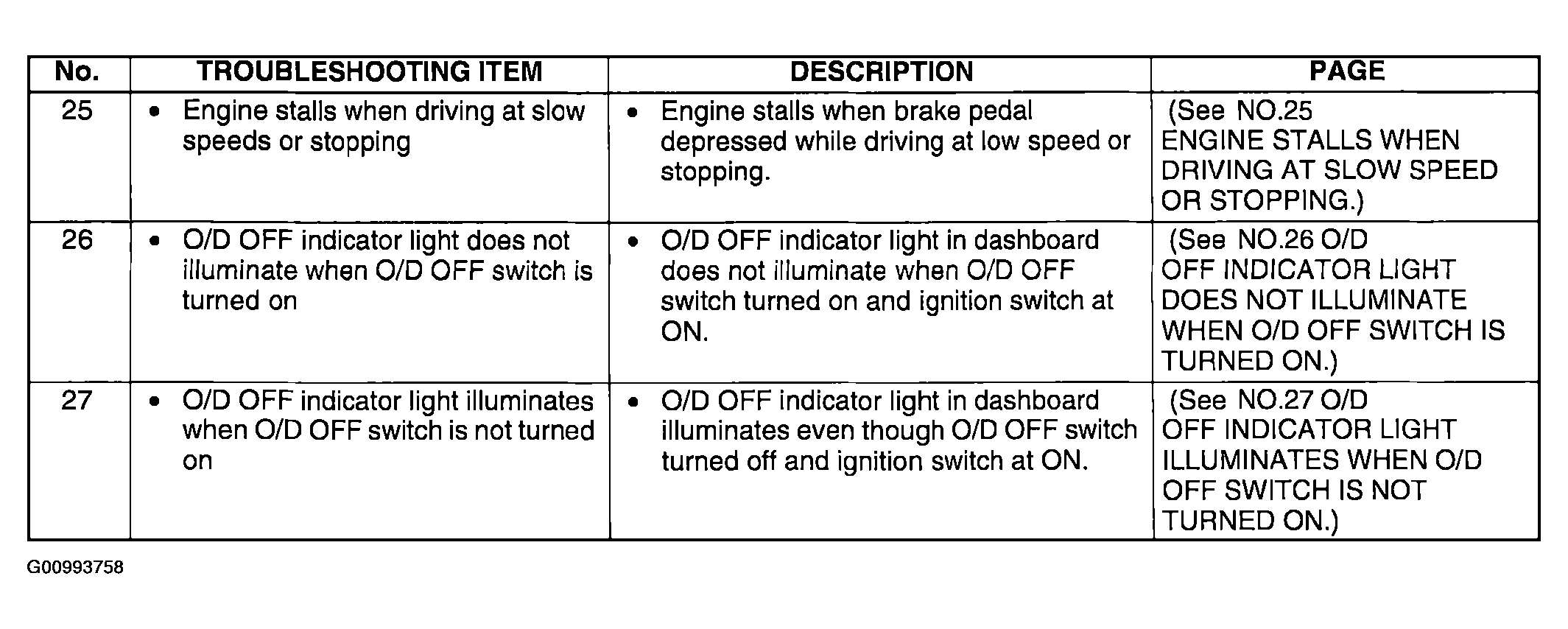

Fig 3: Automatic Transaxle Symptom Troubleshooting (3 Of 3)
Courtesy of MAZDA MOTORS CORP.
