Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Transmission >> Automatic Trans >> On-Board Diagnostic [Automatic Transmission] >> DTC P0791: Intermediate Sensor Circuit Malfunction (Open Circuit/Short Circuit) >> Notes

DTC P0791: Intermediate Sensor Circuit Malfunction (Open Circuit/Short Circuit): Notes

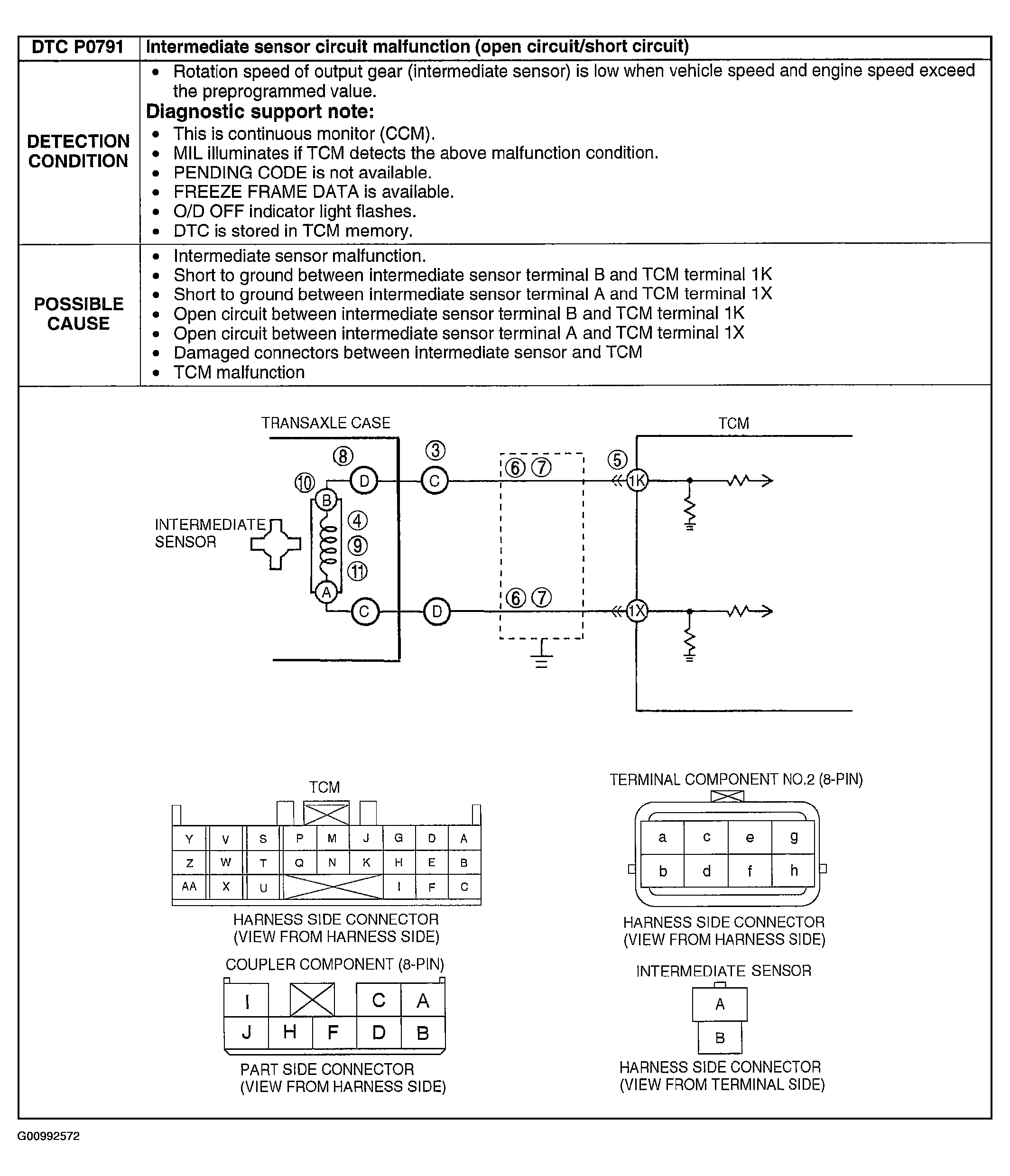

Fig 1: Possible Cause - DTC P0791

G00992572

Courtesy of MAZDA MOTORS CORP.
