DTC P0715: Input/Turbine Speed Sensor Circuit Malfunction: Notes

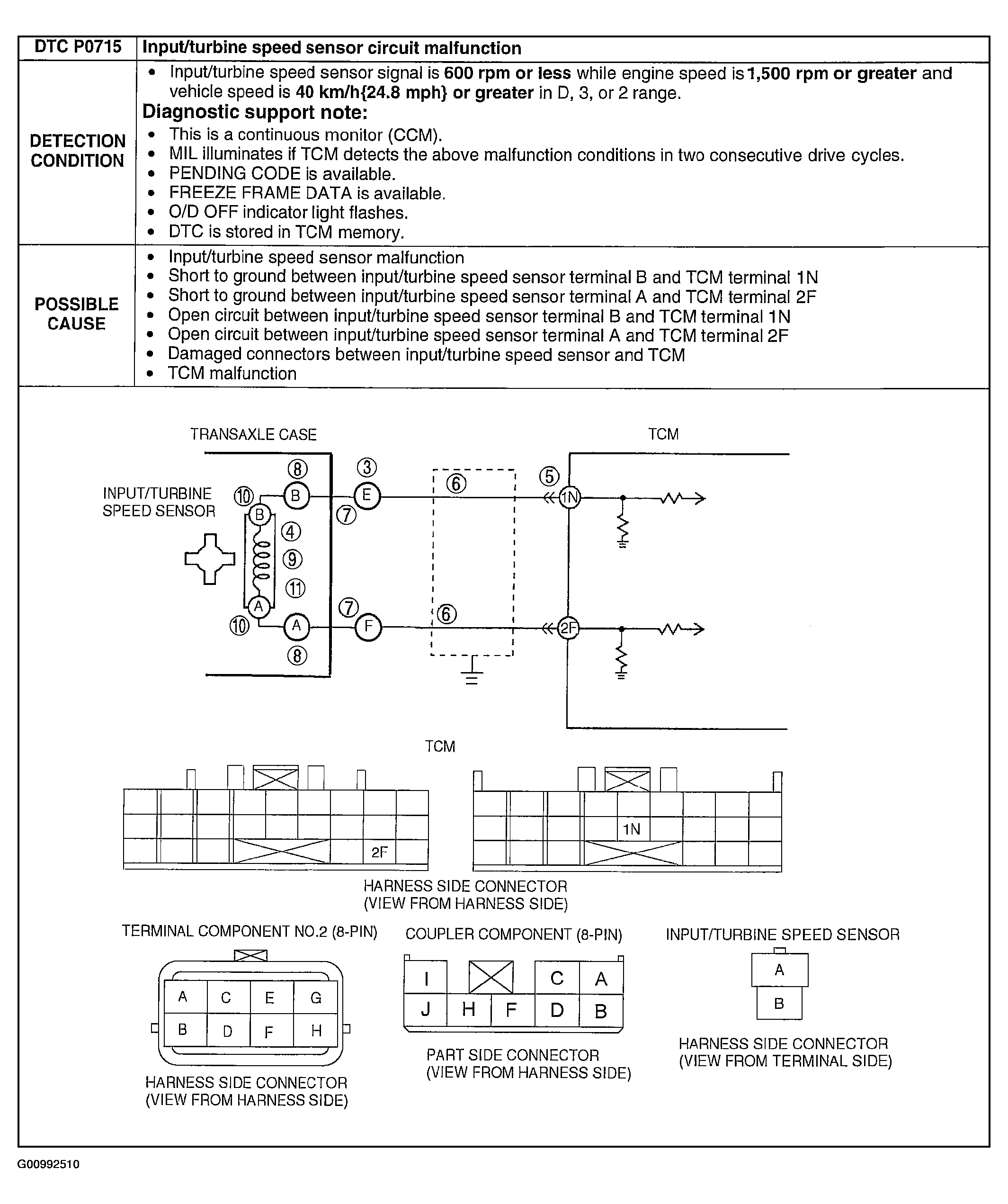

Fig 1: Possible Cause - DTC P0715

G00992510

Courtesy of MAZDA MOTORS CORP.
