High Clutch Solenoid Valve Signal

TCM terminal: 2U (+)-2P (-).
Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X).
Measuring condition: Idle after warm-up.

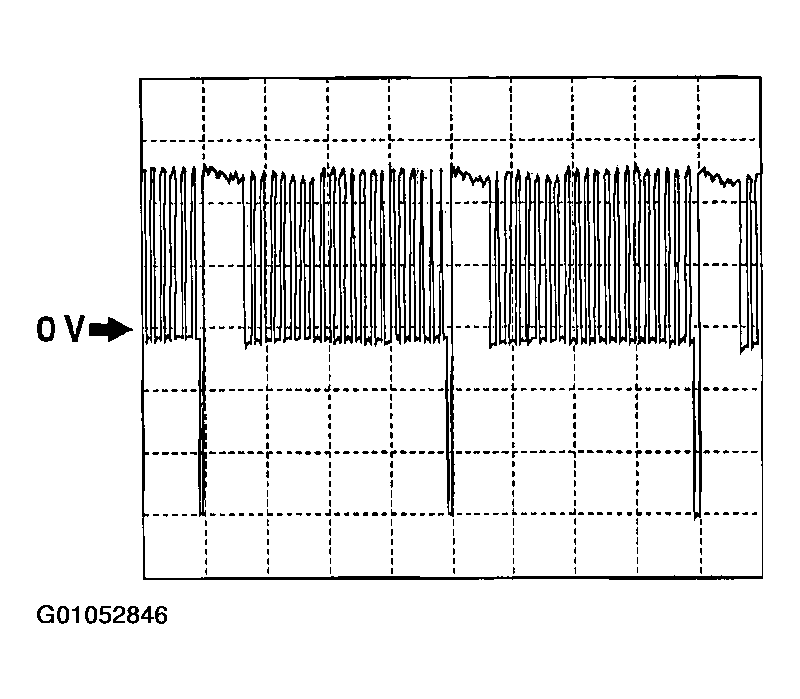

Fig 1: Inspecting High Clutch Solenoid Valve Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
