Evaluation Of Time Lag Test

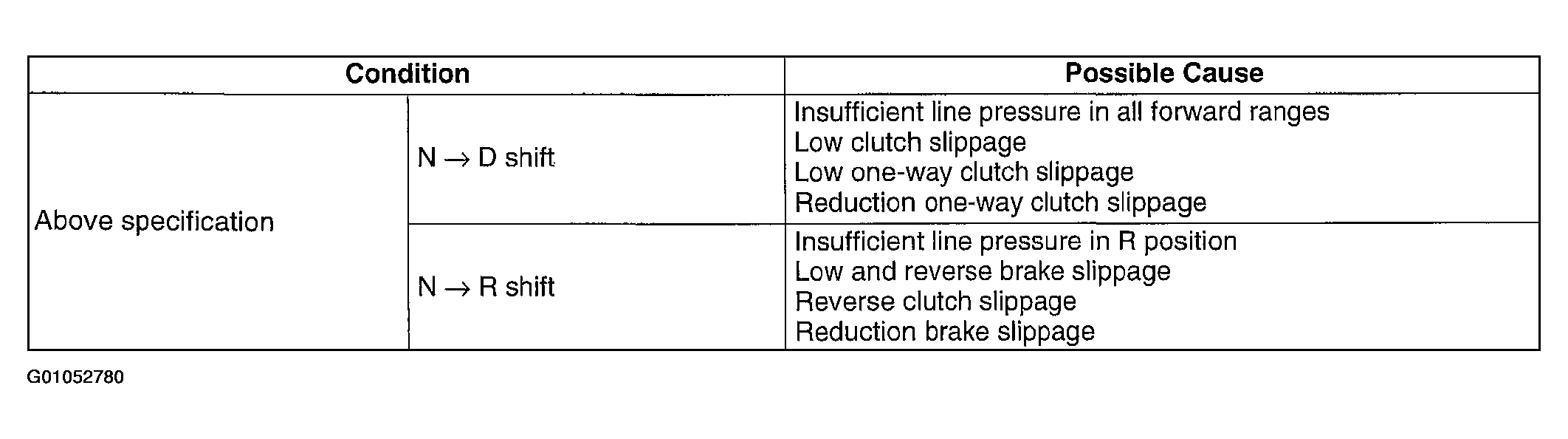

Fig 1: Evaluation Of Time Lag Test

G01052780

Courtesy of MAZDA MOTORS CORP.
