Steering Lock Mounting Bolts And Bracket Removal Note

  1. Make a groove in the heads of the steering lock mounting bolts using a chisel and a hammer.

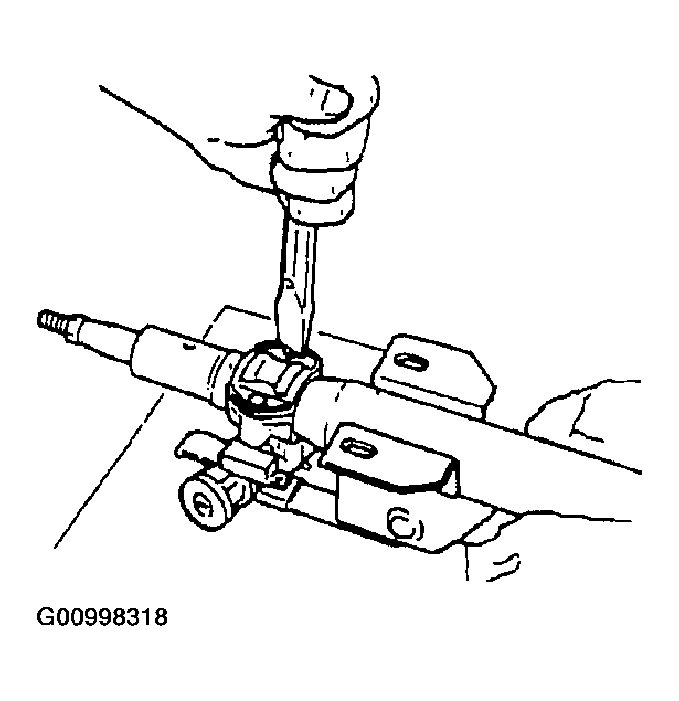

    Fig 1: Making Groove In Heads Of Steering Lock Mounting Bolts
    G00998318Courtesy of MAZDA MOTORS CORP.
  2. Remove the bolts using a screwdriver.
  3. Disassemble the steering lock component.
