Pinion Shaft Component Disassembly Note

  1. Remove the pinion shaft component by tapping lightly on the head of the pinion shaft using a plastic hammer.

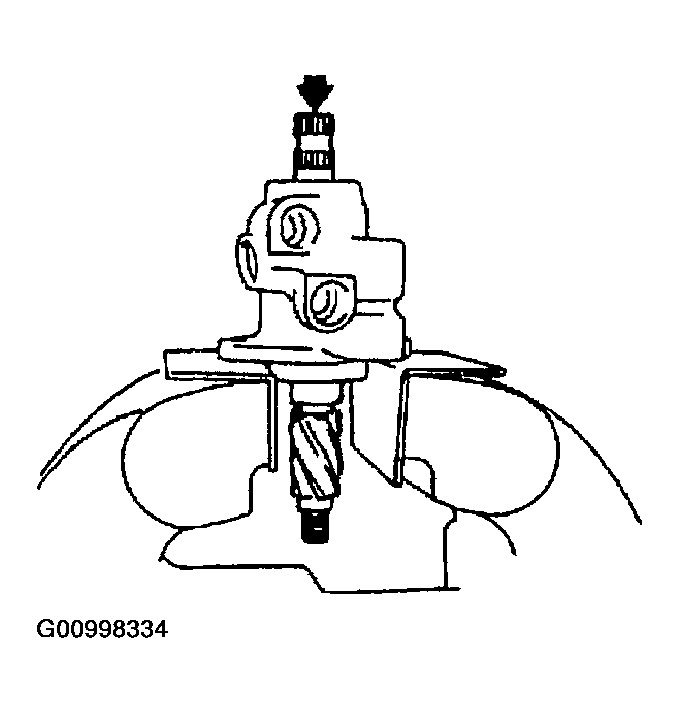

    Fig 1: Removing Pinion Shaft Component
    G00998334Courtesy of MAZDA MOTORS CORP.
