Wiper & Washer Switch Connector End View

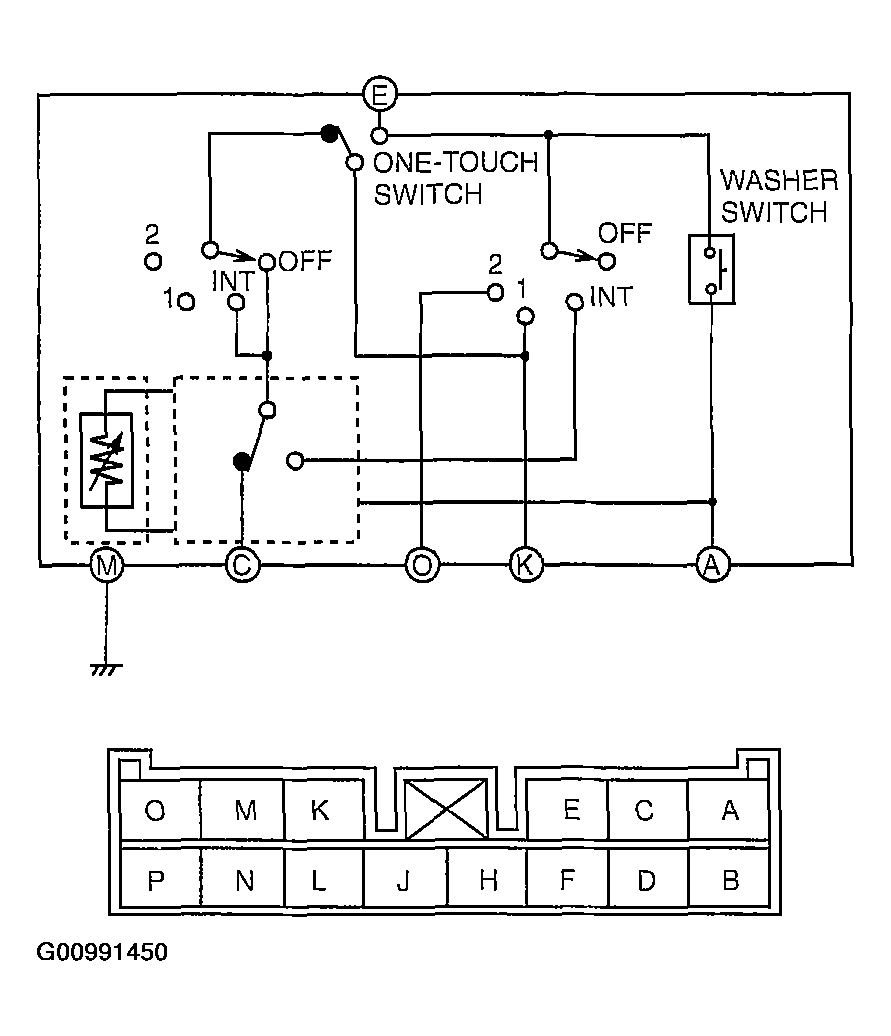

Fig 1: Wiper & Washer Switch Connector End View

G00991450

Courtesy of MAZDA MOTORS CORP.
