Inner Garnish Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Pull the inner garnish outward and detach clip A.
  3. Detach the tab.
  4. Disconnect the tweeter connector and remove the inner garnish.
  5. Install in the reverse order of removal.

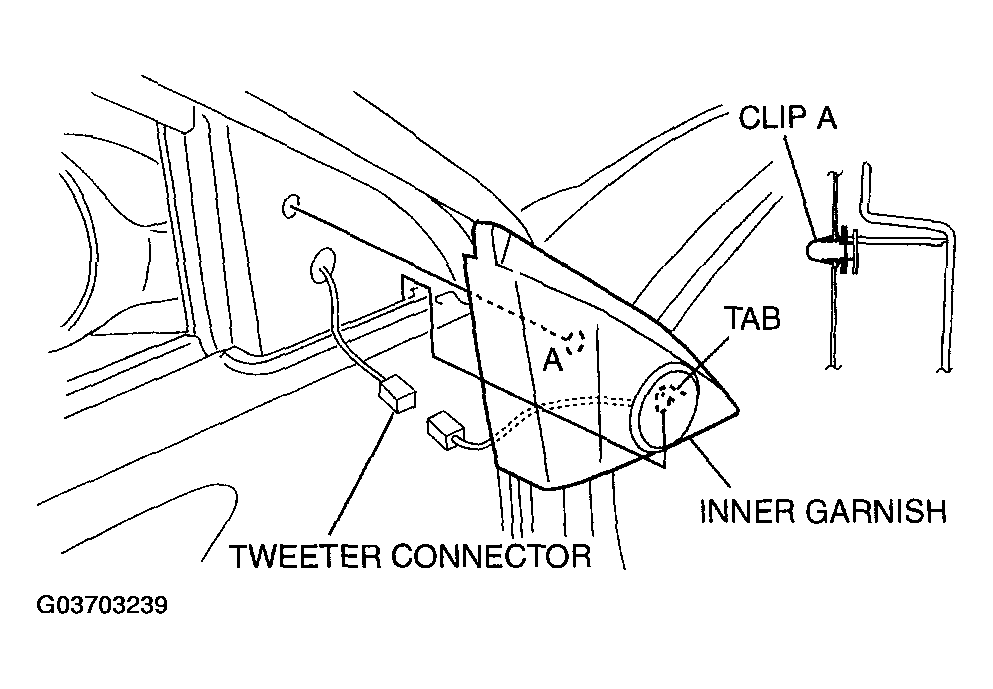

    Fig 1: Removing Inner Garnish
    G03703239Courtesy of MAZDA MOTORS CORP.
