Diagnostic Procedure

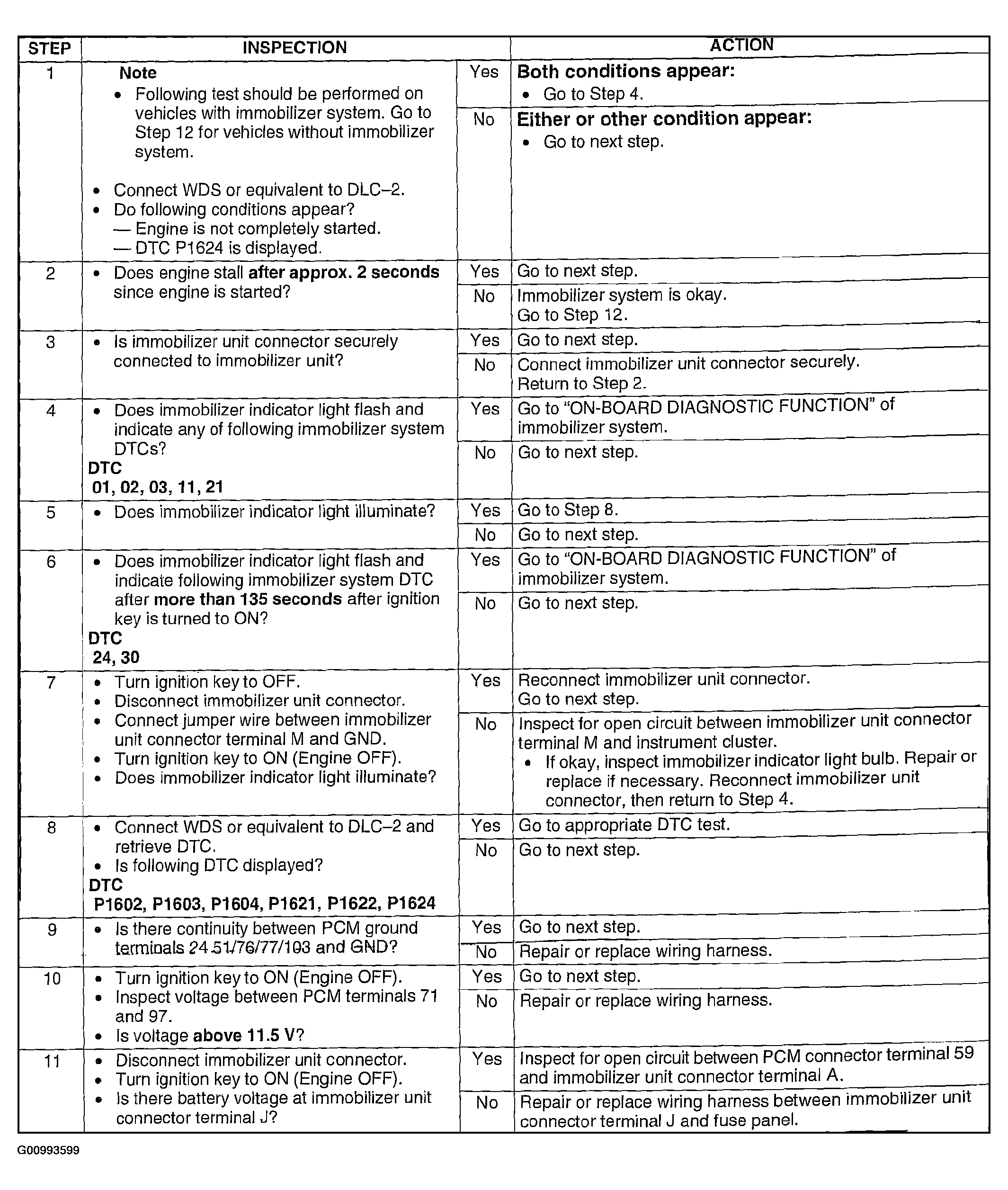

Fig 1: Symptom No.5 Diagnostic Procedure Chart (Step 1-11)
G00993599Courtesy of MAZDA MOTORS CORP.

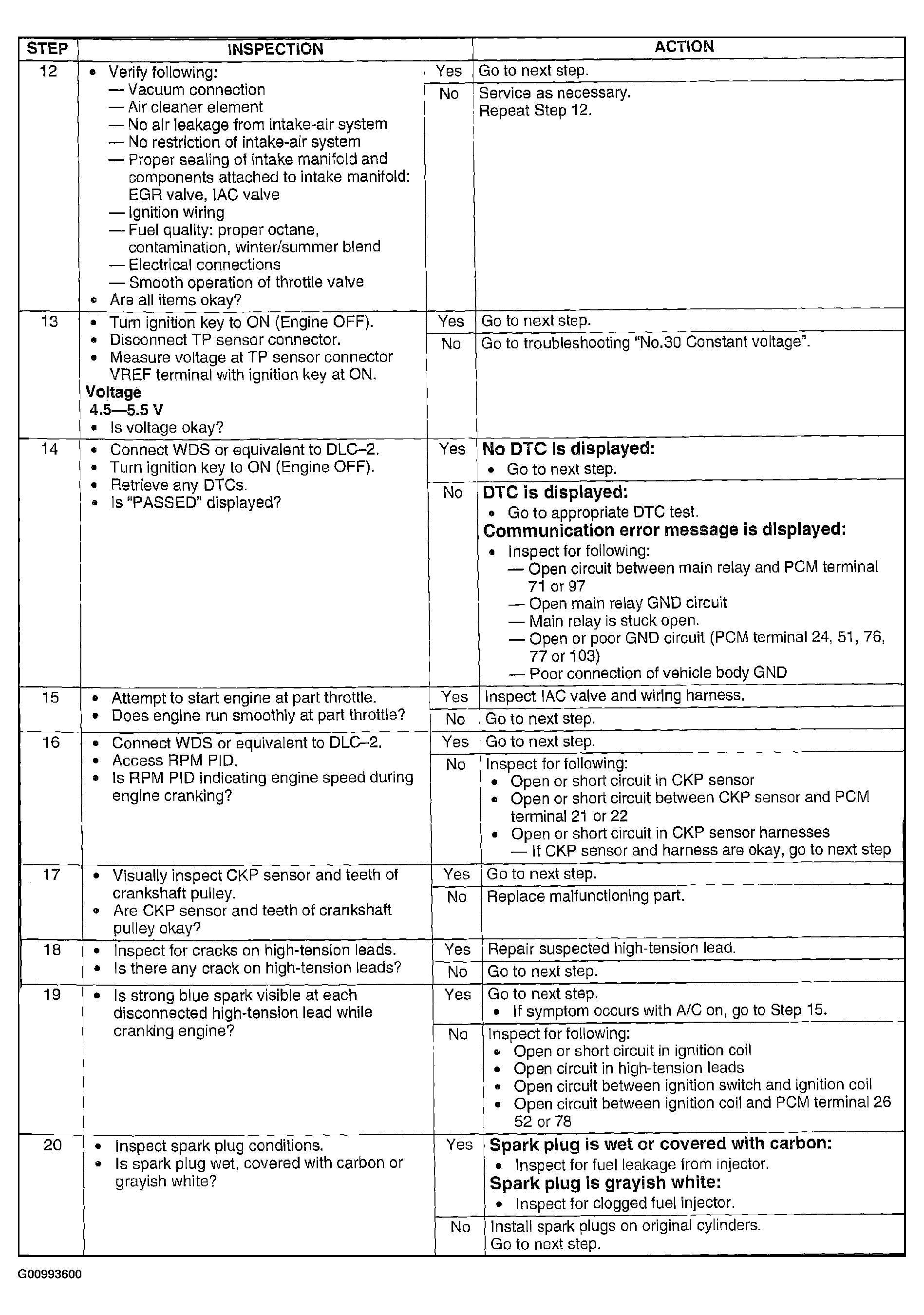

Fig 2: Symptom No.5 Diagnostic Procedure Chart (Step 12-20)
G00993600Courtesy of MAZDA MOTORS CORP.

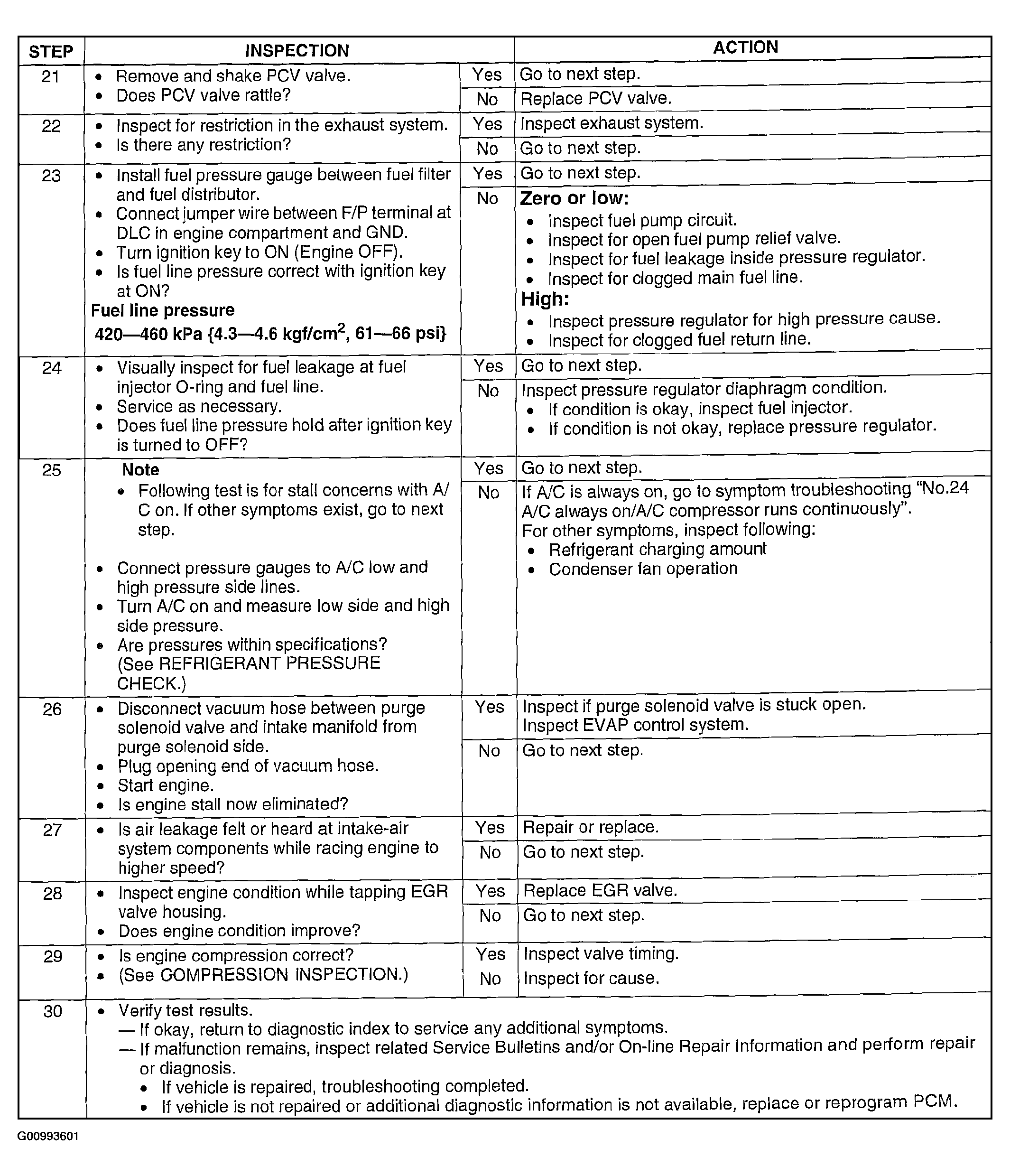

Fig 3: Symptom No.5 Diagnostic Procedure Chart (Step 21-30)
G00993601Courtesy of MAZDA MOTORS CORP.
