Symptom Troubleshooting [Engine Control System AJ]
>>
No. 28 Fuel Filling Shut Off Issues
>>
Diagnostic Procedure
Diagnostic Procedure

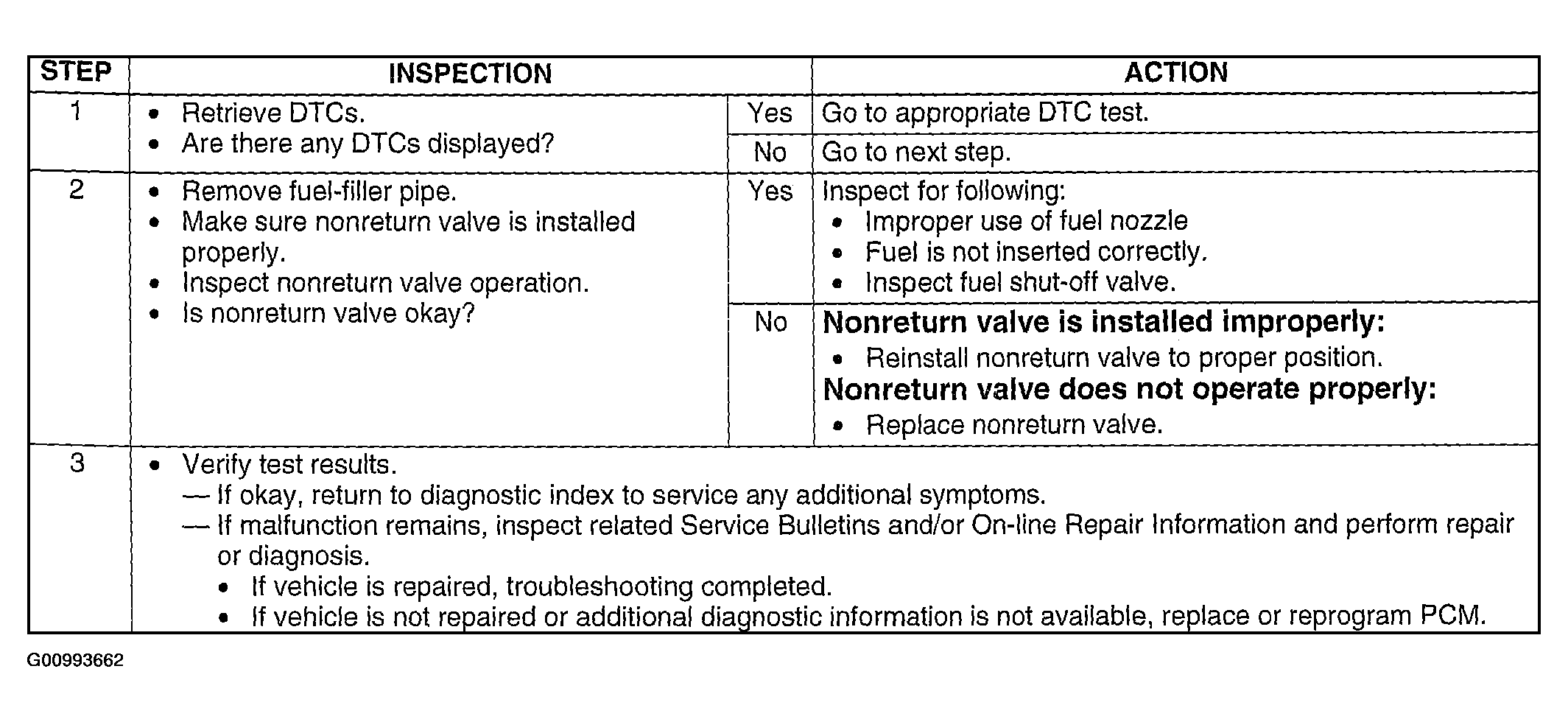

Fig 1: Symptom No.28 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
