Symptom Troubleshooting [Engine Control System AJ]
>>
No. 14 Poor Fuel Economy
>>
Diagnostic Procedure
Diagnostic Procedure

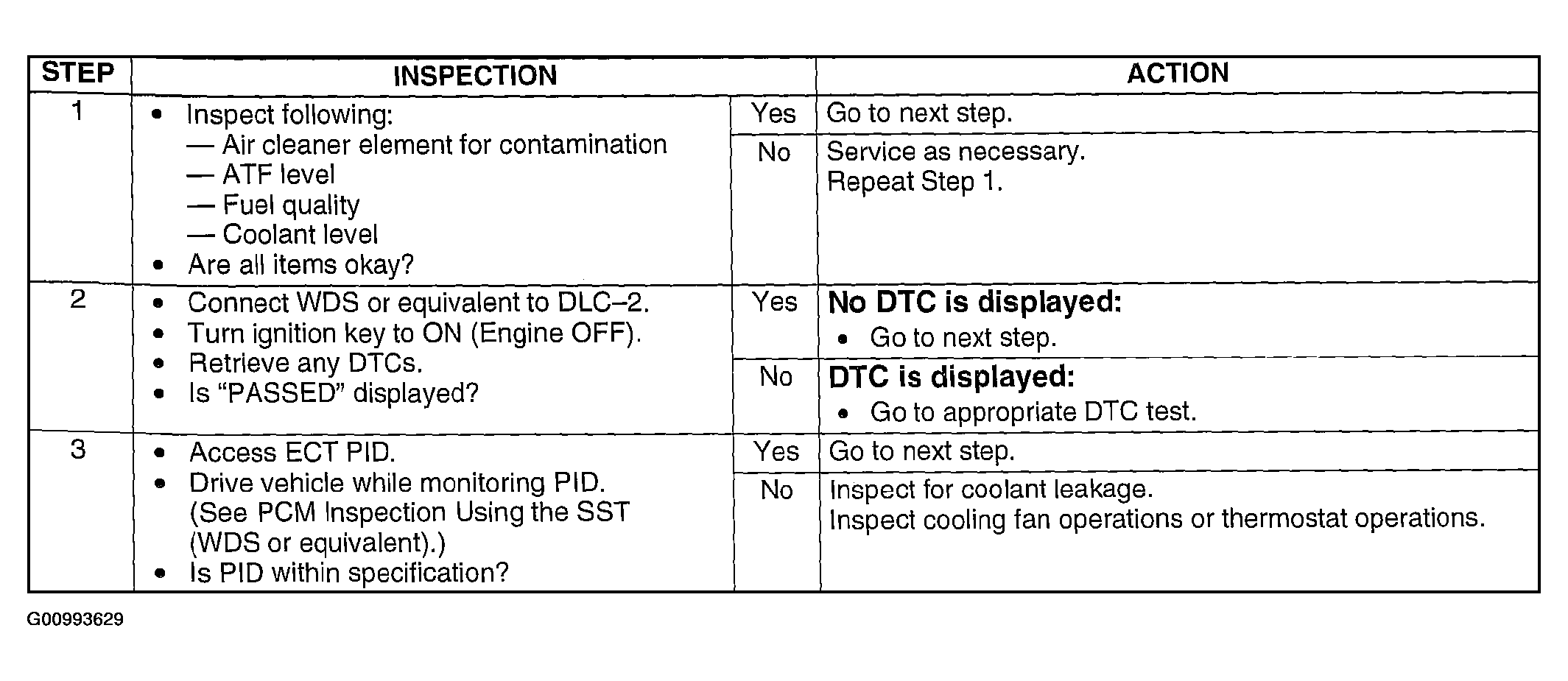

Fig 1: Symptom No.14 Diagnostic Procedure Chart (Step 1-3)
Courtesy of MAZDA MOTORS CORP.

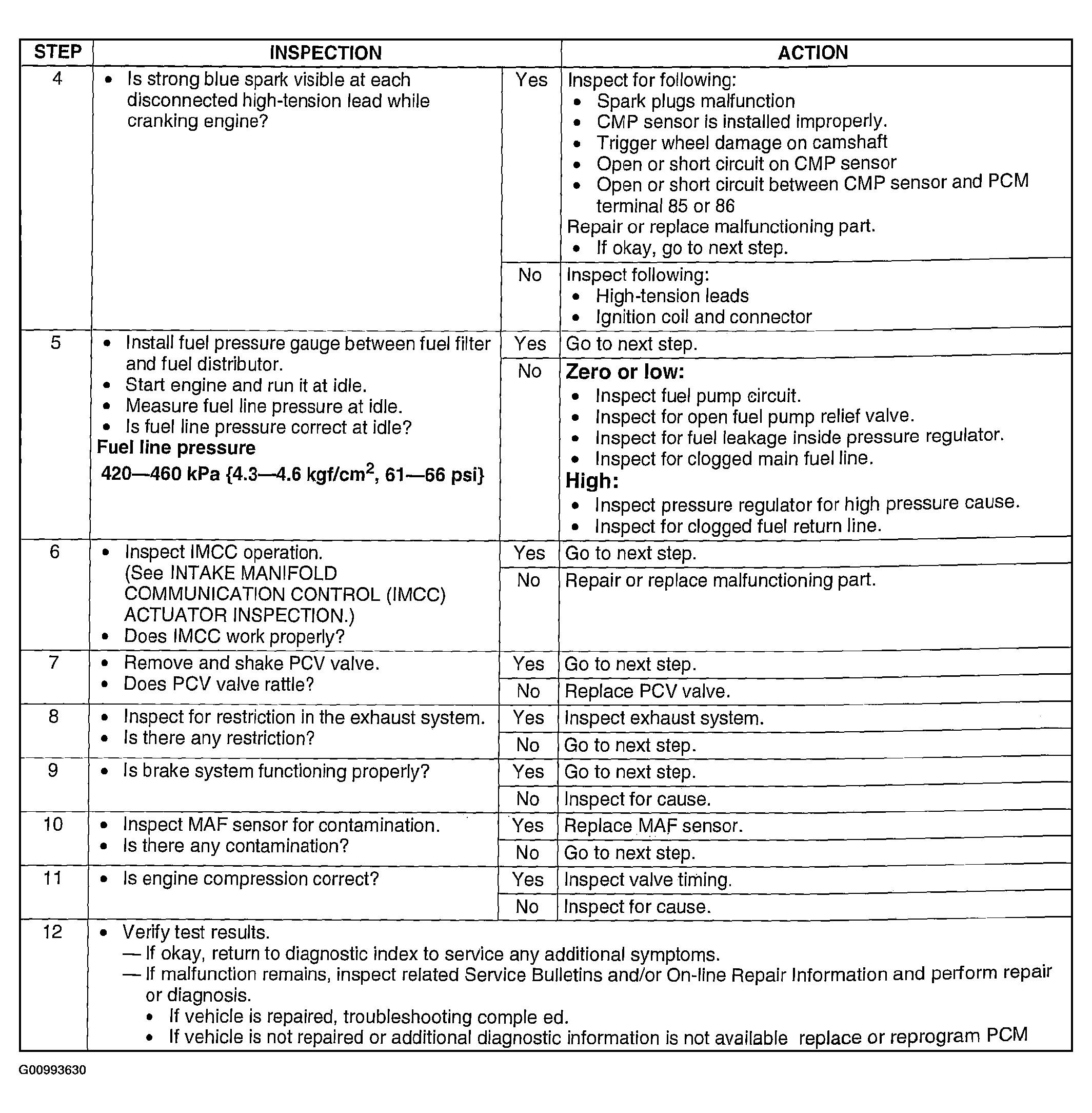

Fig 2: Symptom No.14 Diagnostic Procedure Chart (Step 4-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
