Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P2405: Evaporative Emissions System Leak Detection Pump Orifice Fallen Off >> Notes

DTC P2405: Evaporative Emissions System Leak Detection Pump Orifice Fallen Off: Notes

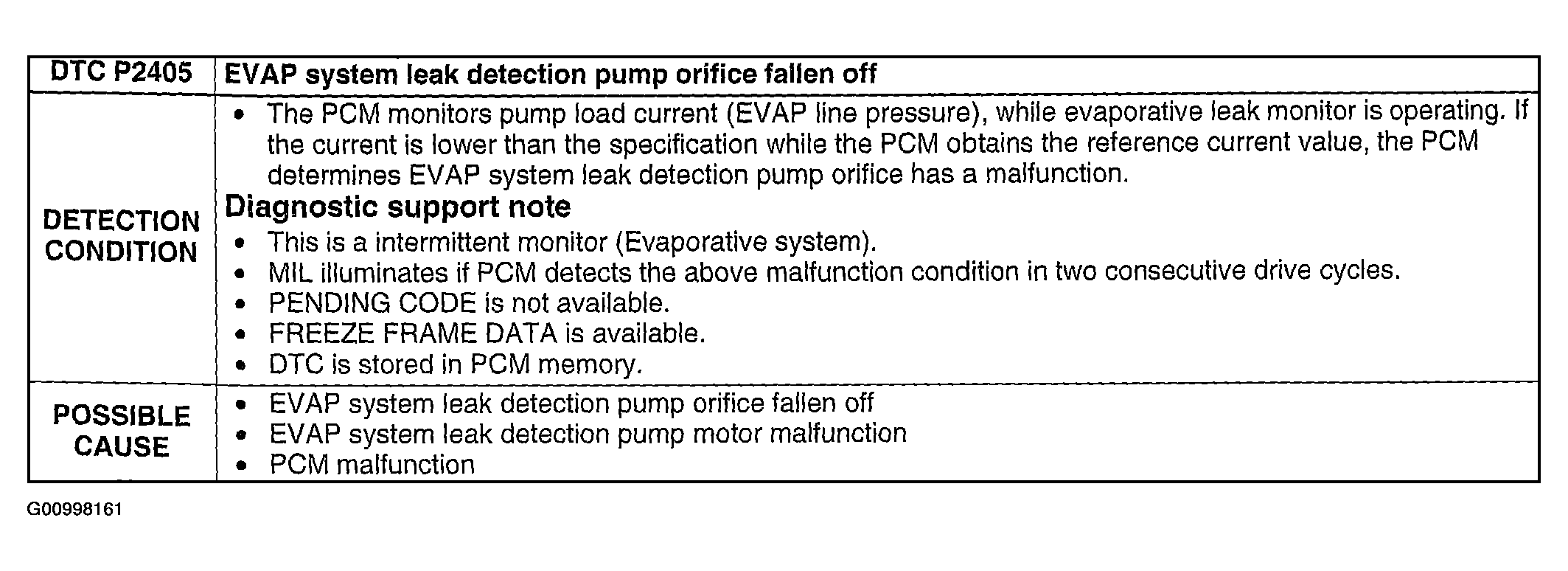

Fig 1: DTC P2405 Detection Condition & Possible Causes Chart

G00998161

Courtesy of MAZDA MOTORS CORP.
