On-Board Diagnostic [Engine Control System AJ]
>>
DTC P1624: Immobilizer System Communication Counter = 0
>>
Diagnostic Procedure
Diagnostic Procedure

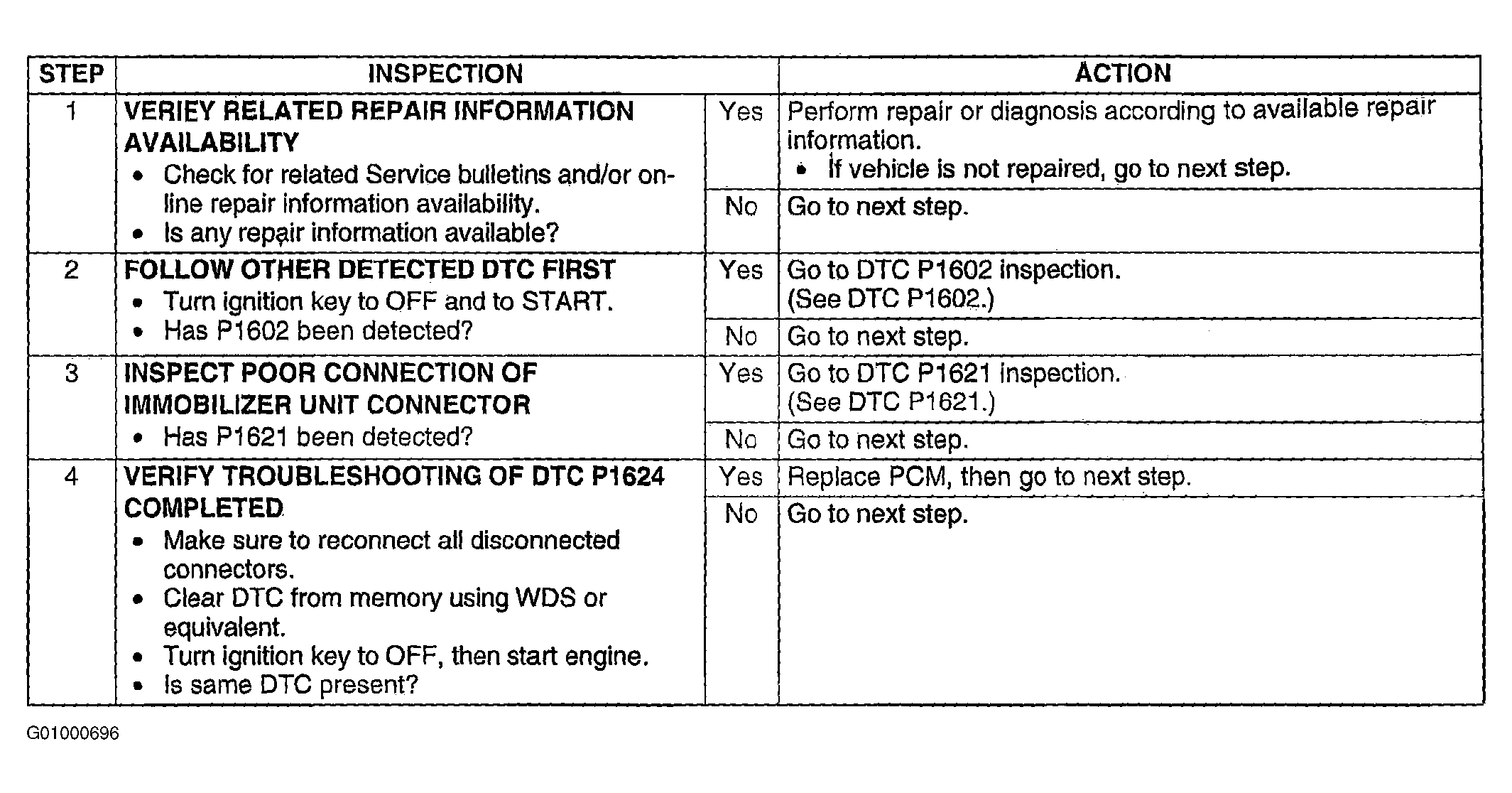

Fig 1: DTC P1624 Diagnostic Procedure Chart (Step 1-4)
Courtesy of MAZDA MOTORS CORP.

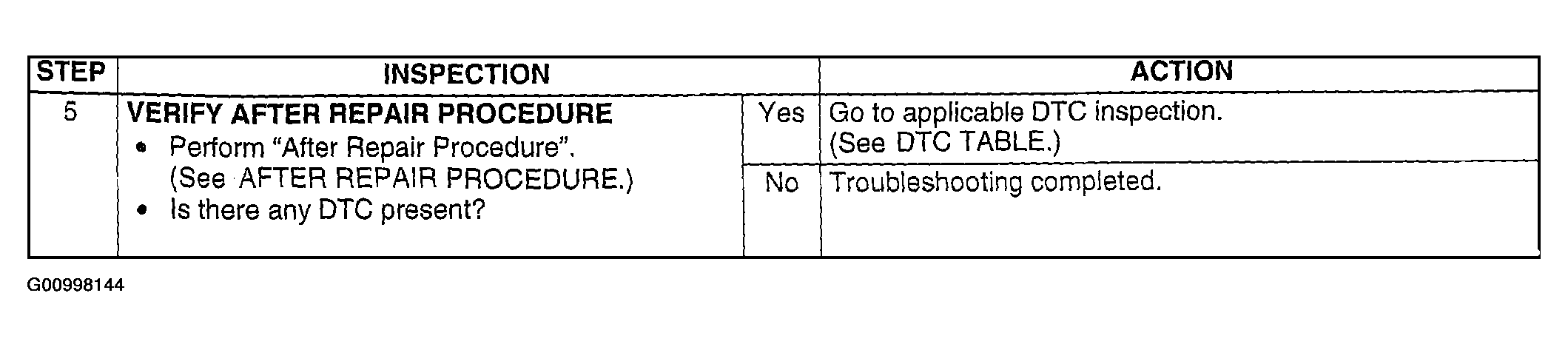

Fig 2: DTC P1624 Diagnostic Procedure Chart (Step 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
