DTC P0403: EGR Valve (Stepper Motor) Circuit Malfunction: Notes

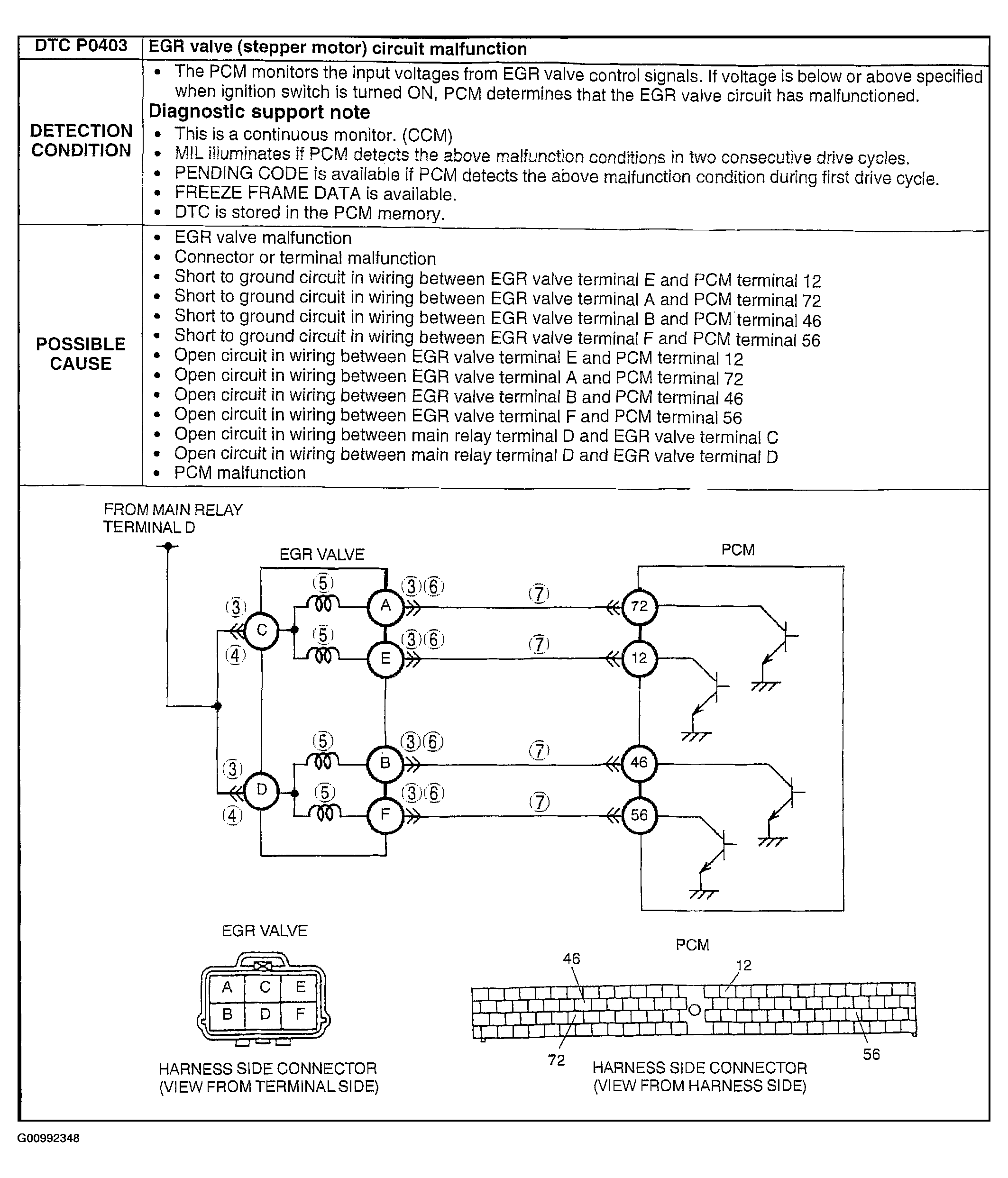

Fig 1: DTC P0403 Detection Condition & Possible Causes Chart

G00992348

Courtesy of MAZDA MOTORS CORP.
