PID/DATA Monitor Table

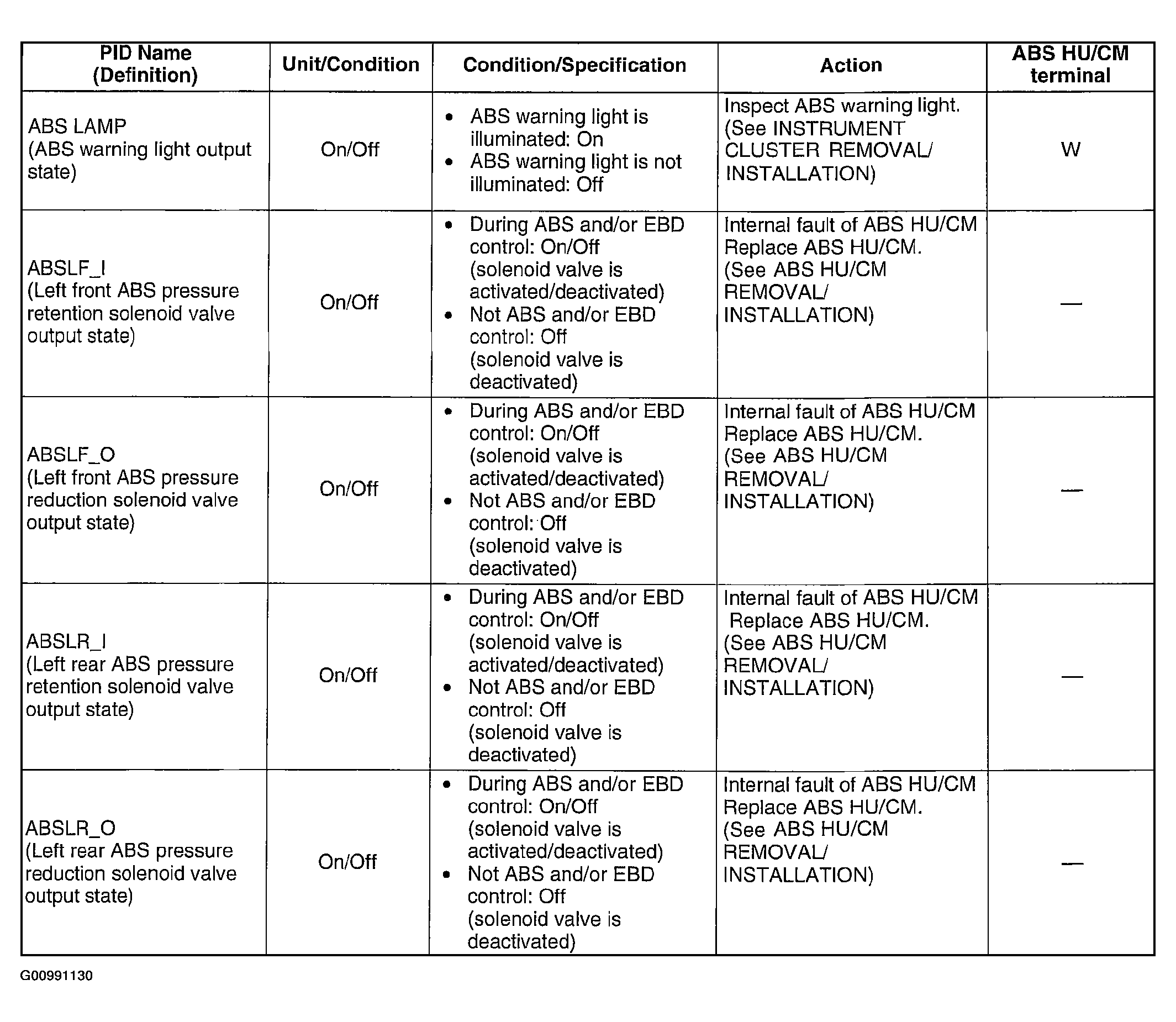

Fig 1: PID/DATA Monitor Table (1 Of 3)
G00991130Courtesy of MAZDA MOTORS CORP.

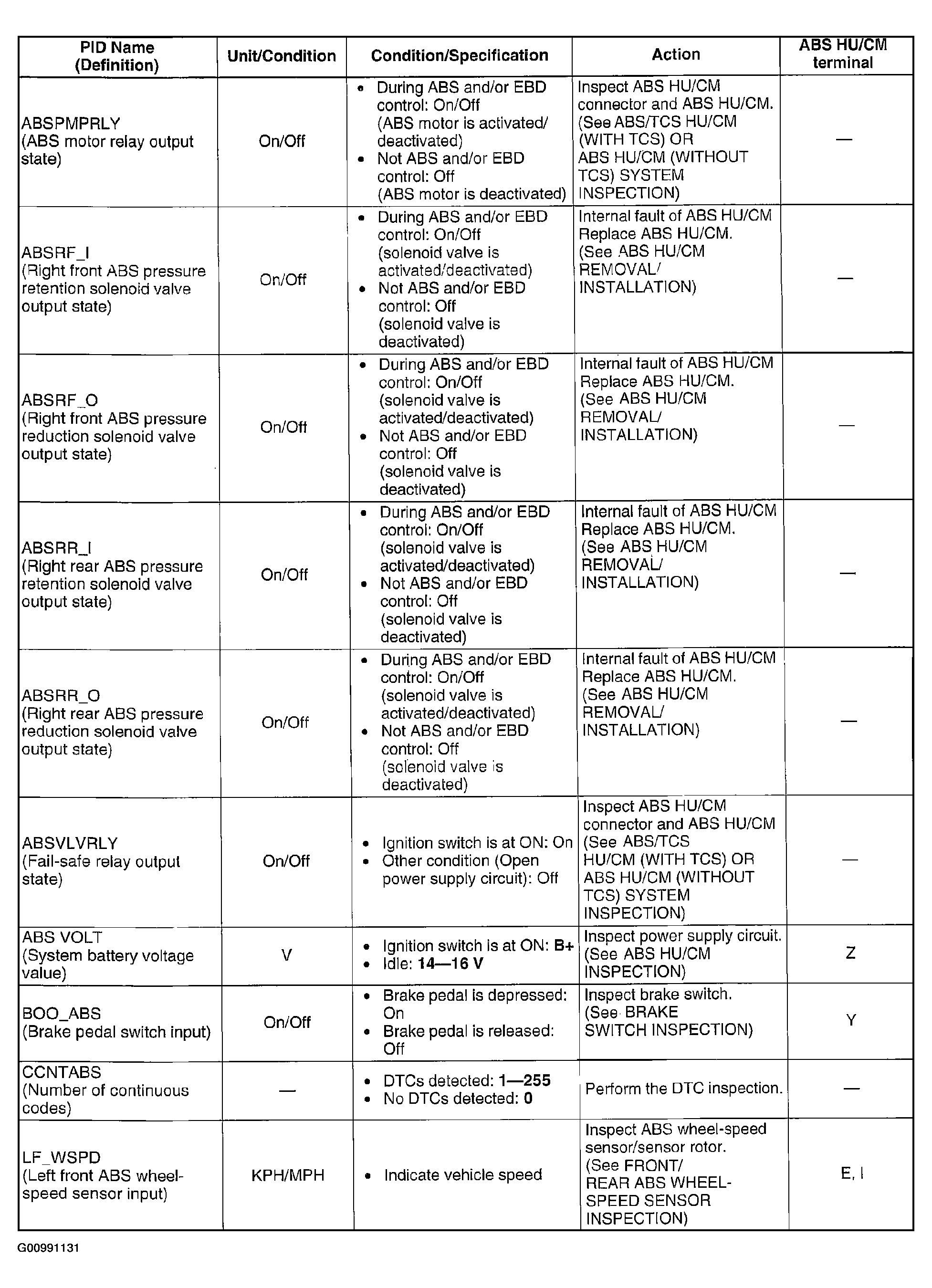

Fig 2: PID/DATA Monitor Table (2 Of 3)
G00991131Courtesy of MAZDA MOTORS CORP.

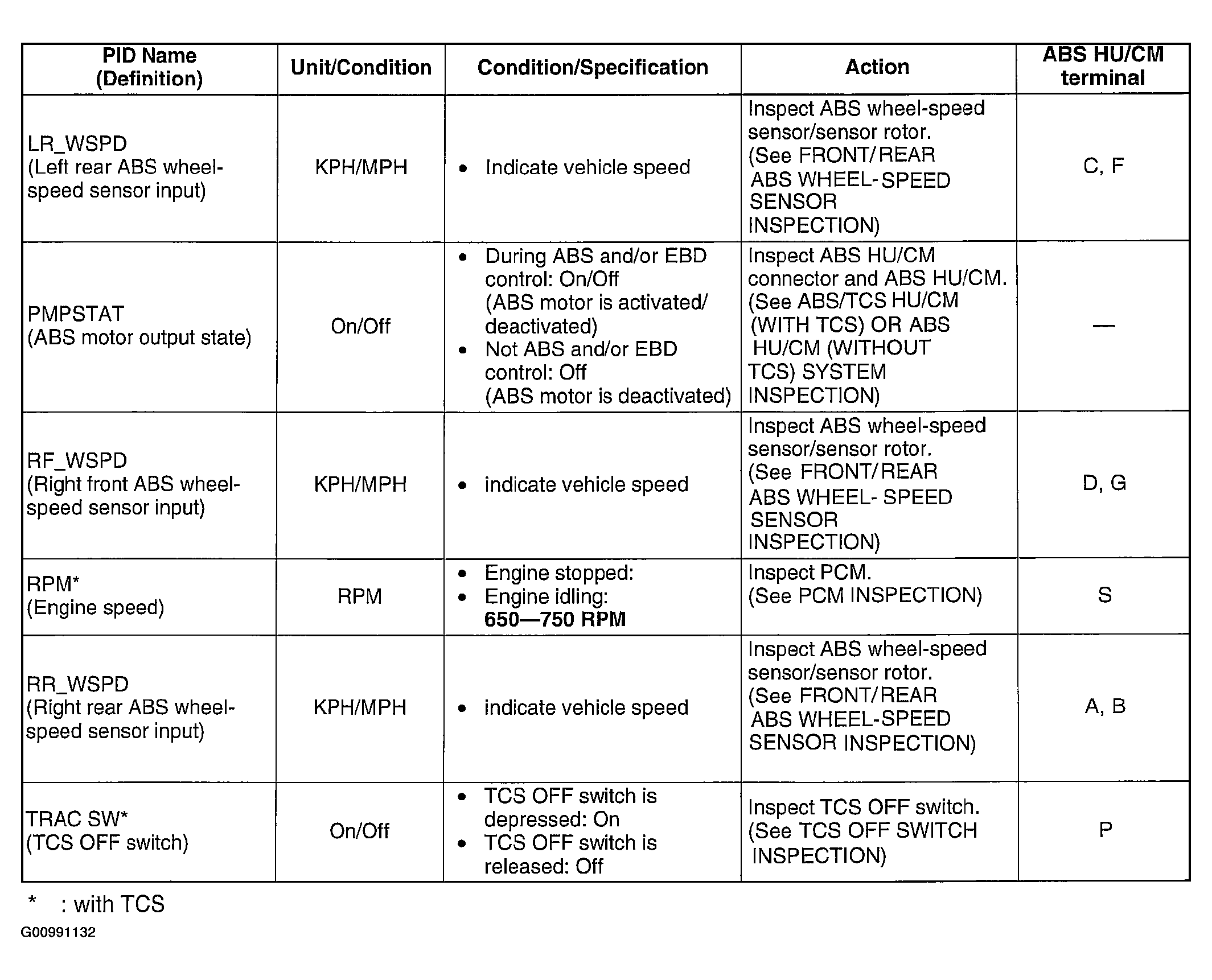

Fig 3: PID/DATA Monitor Table (3 Of 3)
G00991132Courtesy of MAZDA MOTORS CORP.
