Active Command Modes Table

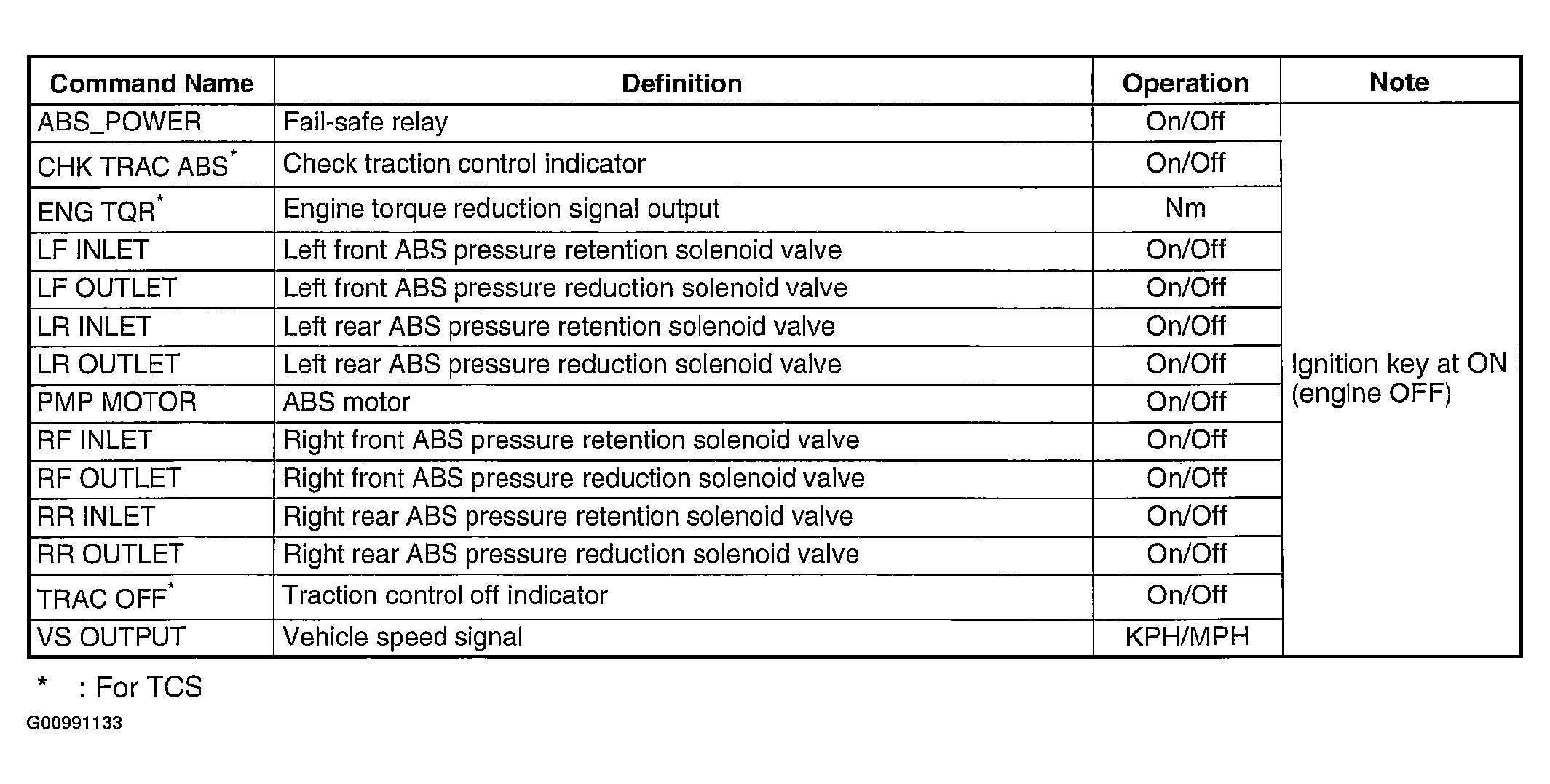

Fig 1: Active Command Modes Table
G00991133Courtesy of MAZDA MOTORS CORP.
NOTE:
  • When operating the ABS motor and each valve forcibly, turn ABS_POWER on, and then each command on, ABS_POWER regulates the power supply for the ABS motor and eight valves.
