Driver's Seat (Power Seat): Notes

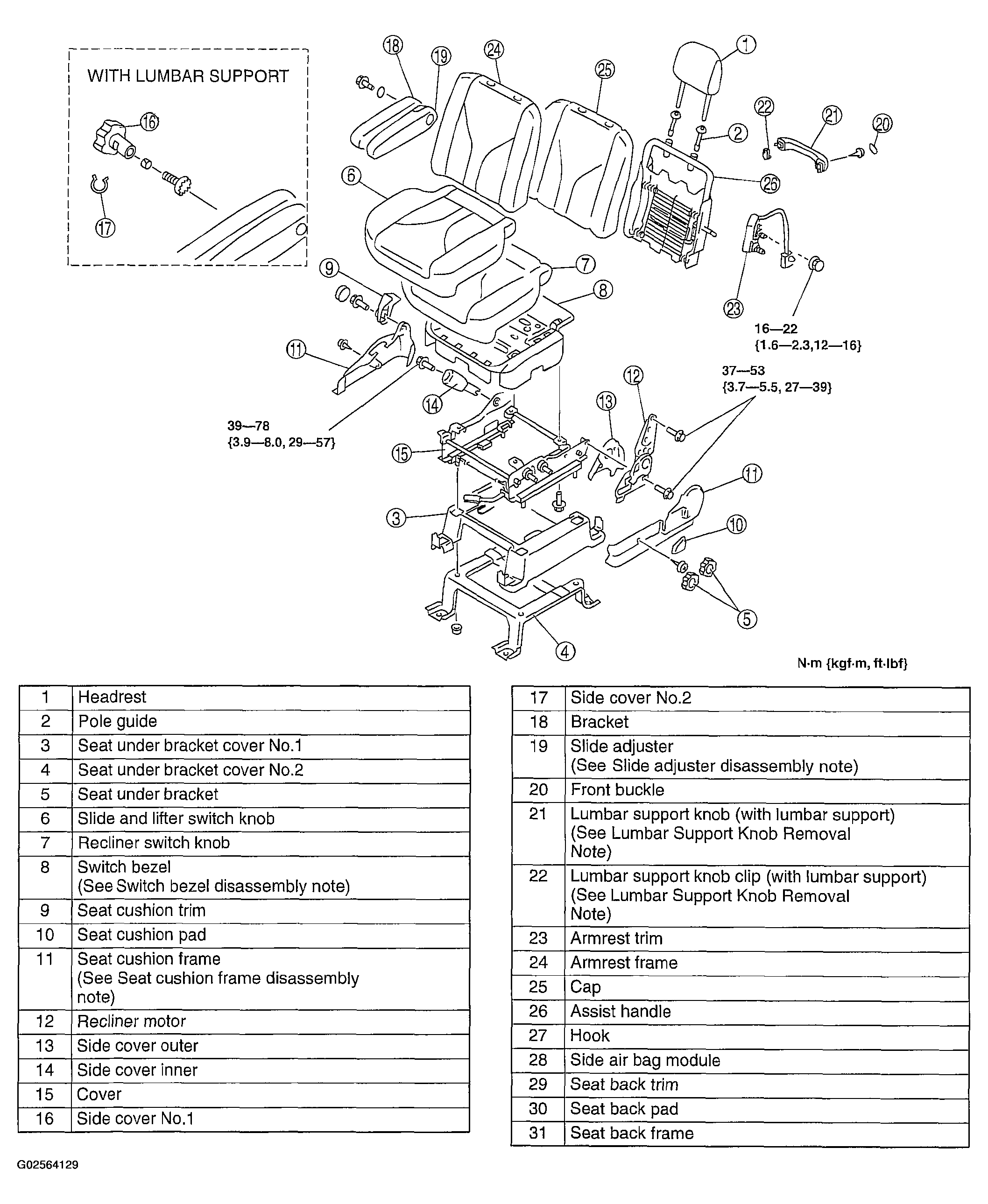

Fig 1: Disassembling/Assembling Front Seat - Driver's Seat (Power Seat)

G02564129

Courtesy of MAZDA MOTORS CORP.
