Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> On-Board Diagnostic [Cruise Control System) >> DTC 31: Brake Switch >> Notes

DTC 31: Brake Switch: Notes

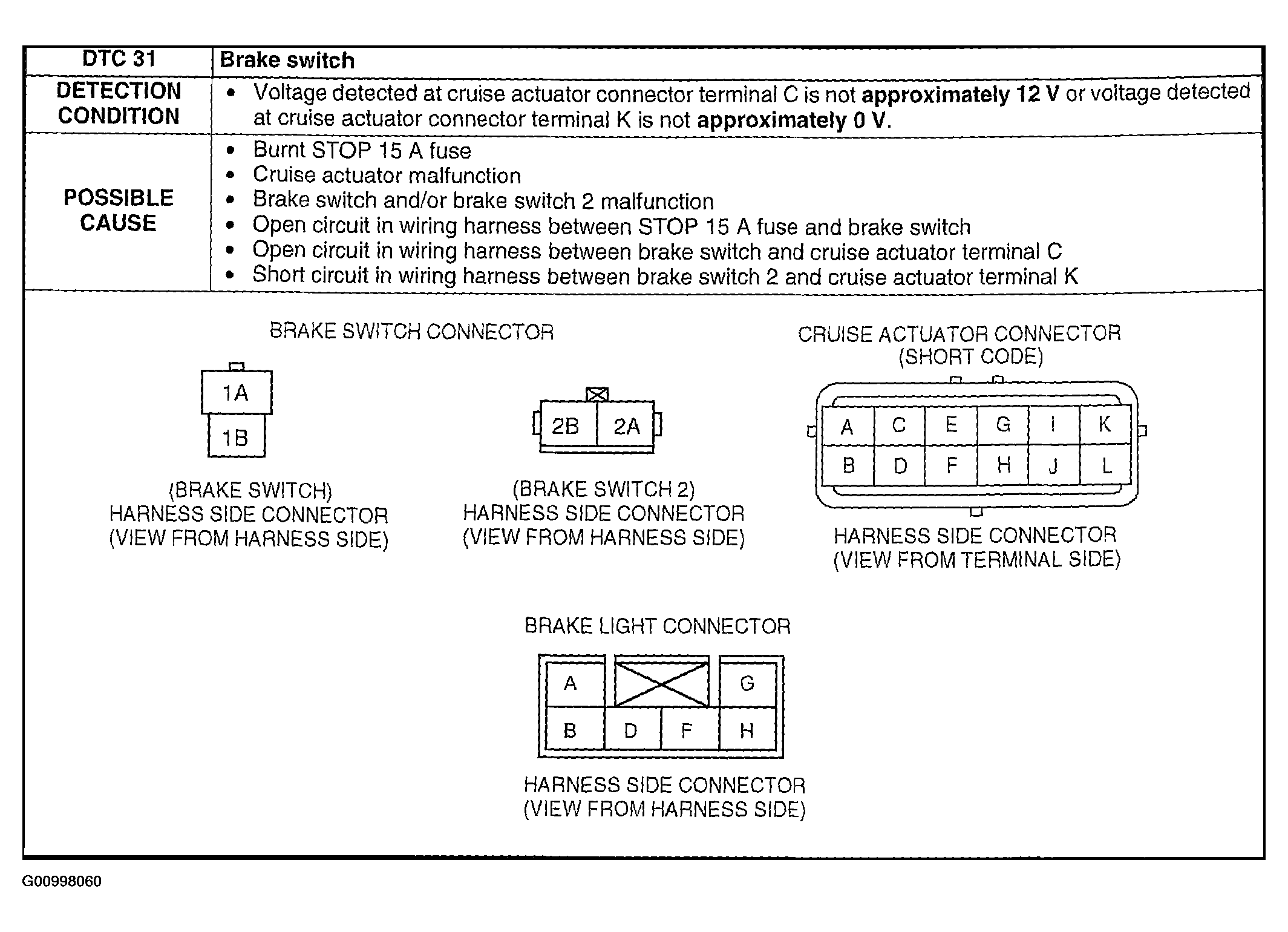

Fig 1: DTC 31 Detection Conditions & Possible Causes

G00998060

Courtesy of MAZDA MOTORS CORP.
