Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> On-Board Diagnostic [Cruise Control System) >> DTC 11: Cruise Control Switch (Set/Coast Switch)

DTC 11: Cruise Control Switch (Set/Coast Switch)

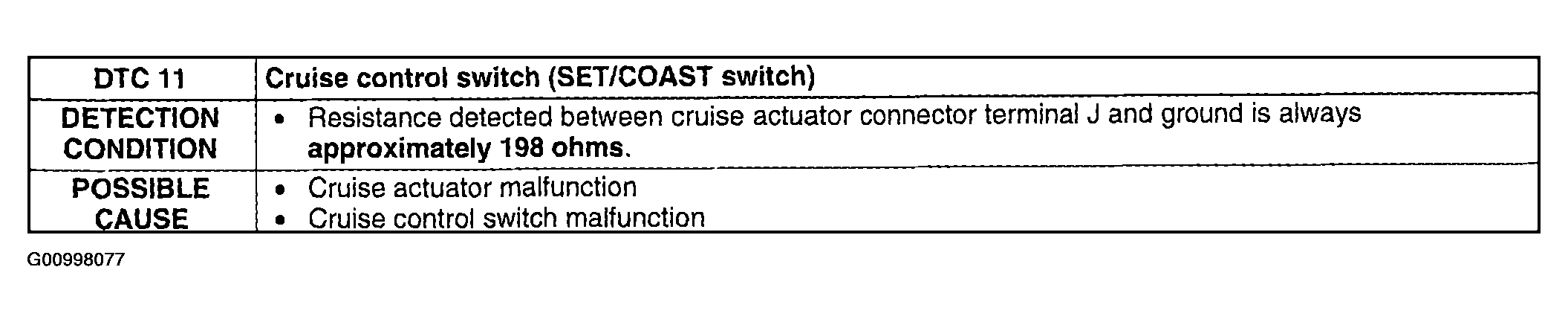

Fig 1: DTC 11 Detection Condition & Possible Cause

G00998077

Courtesy of MAZDA MOTORS CORP.

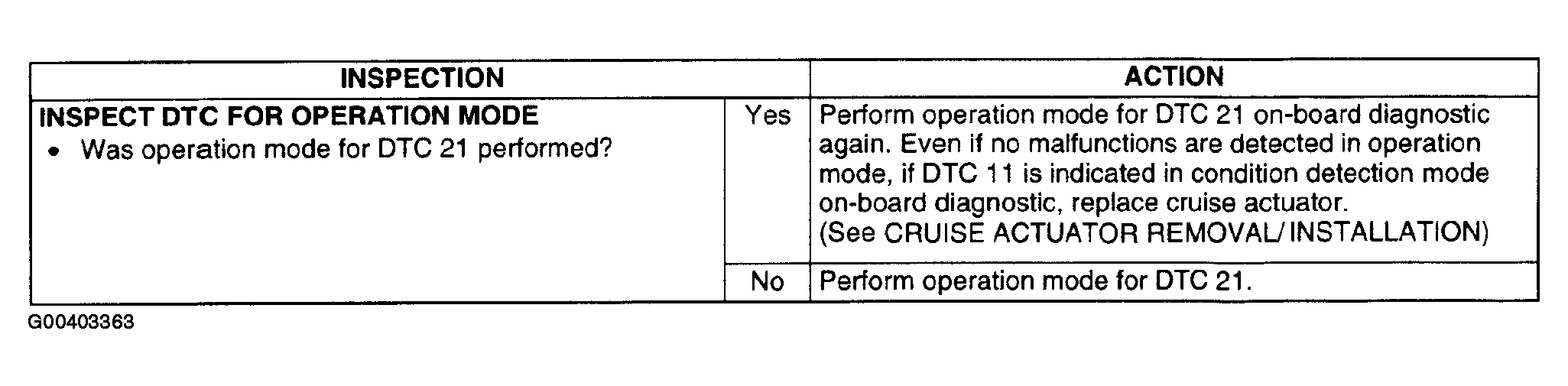

Fig 2: DTC 11 Diagnostic Procedure

G00403363

Courtesy of MAZDA MOTORS CORP.
