EC-At Control System

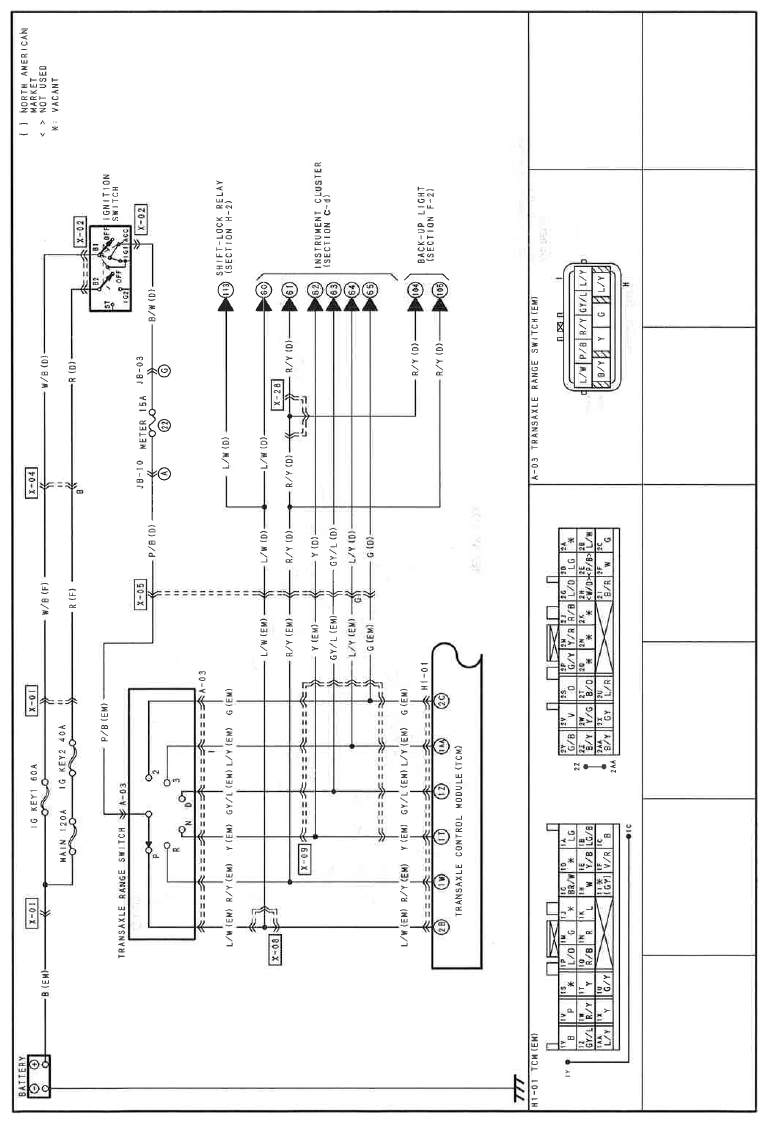

Fig 1: EC-AT Control System Wiring Diagram (H-1a; 1 Of 2)
G11559924Courtesy of MAZDA MOTORS CORP.

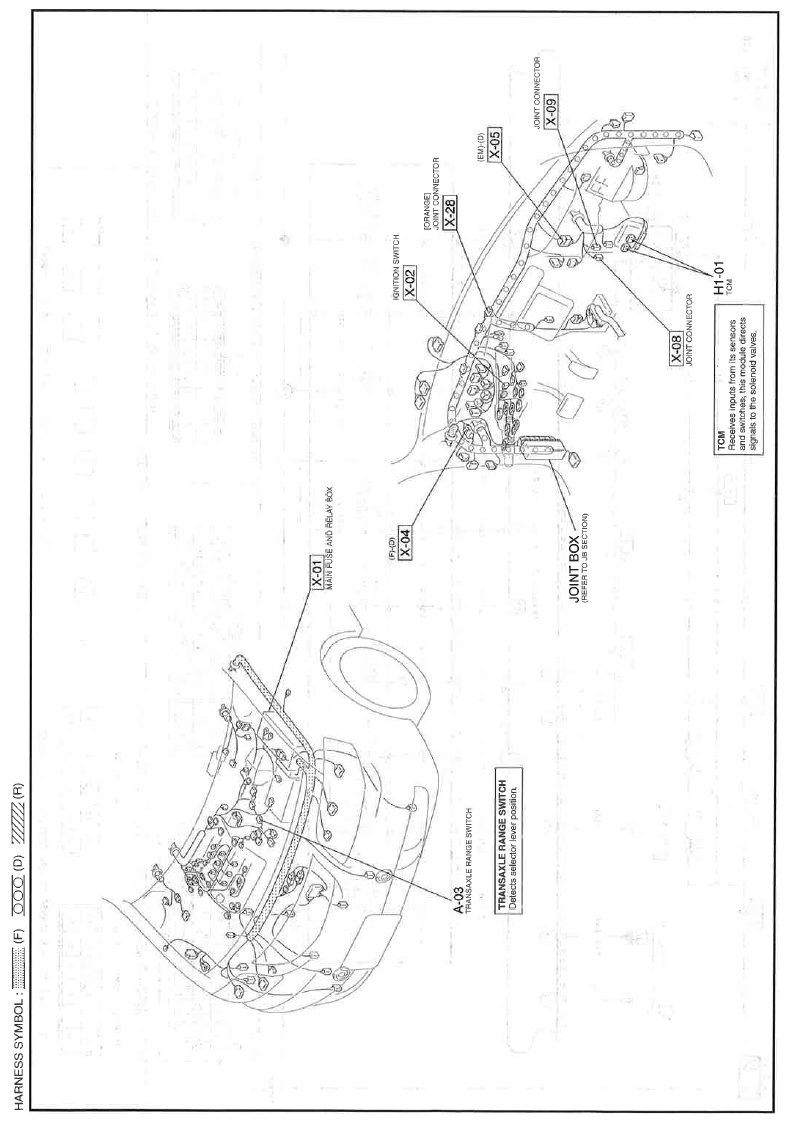

Fig 2: EC-AT Control System Wiring Diagram (H-1a; 2 Of 2)
G11559925Courtesy of MAZDA MOTORS CORP.

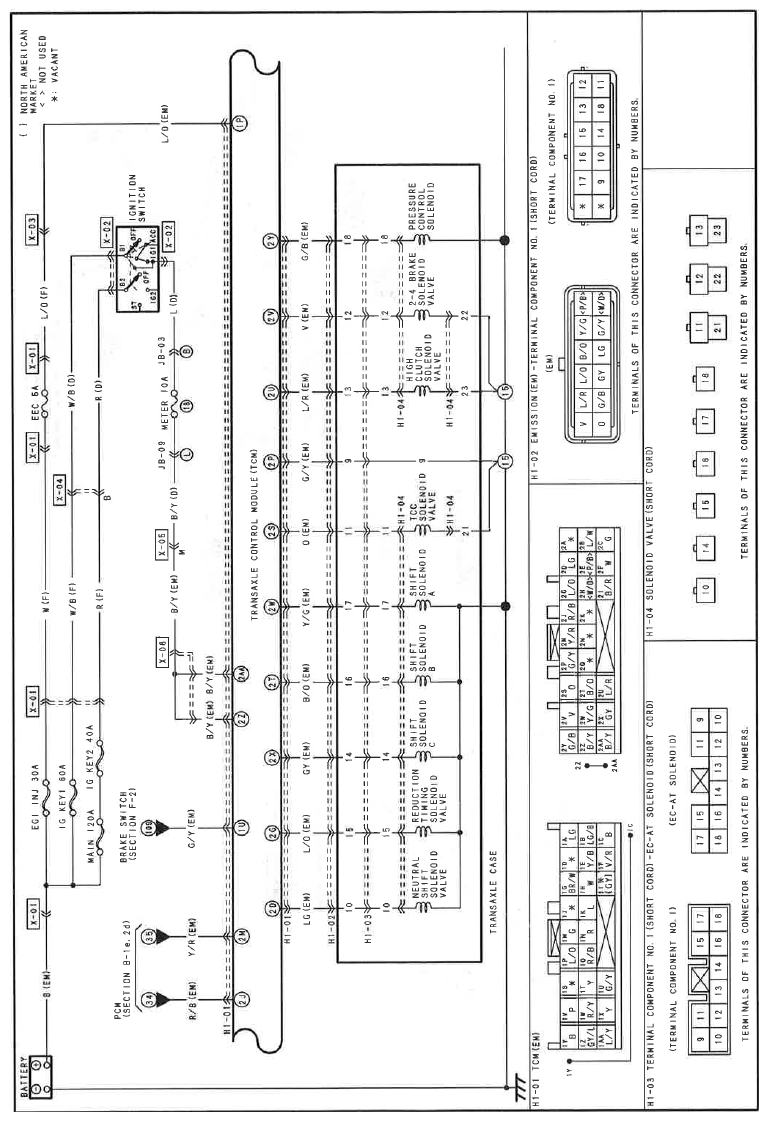

Fig 3: EC-AT Control System Wiring Diagram (H-1b; 1 Of 2)
G11559926Courtesy of MAZDA MOTORS CORP.

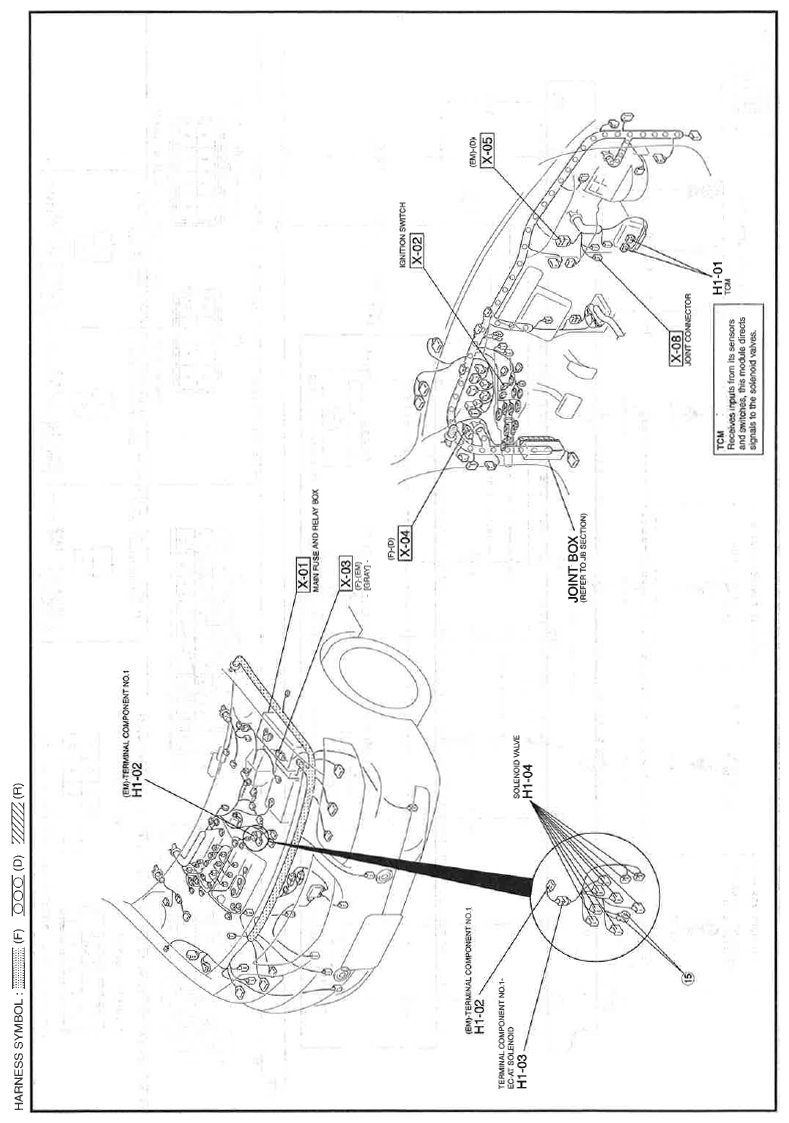

Fig 4: EC-AT Control System Wiring Diagram (H-1b; 2 Of 2)
G11559927Courtesy of MAZDA MOTORS CORP.

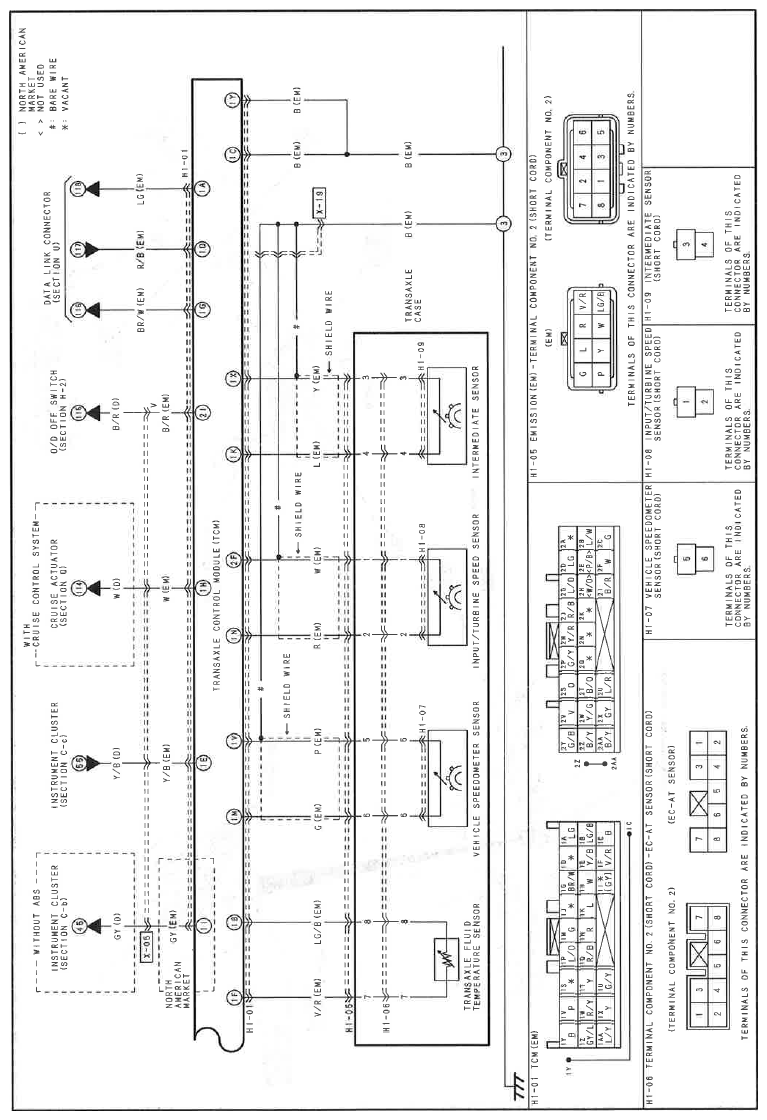

Fig 5: EC-AT Control System Wiring Diagram (H-1c; 1 Of 2)
G11559928Courtesy of MAZDA MOTORS CORP.

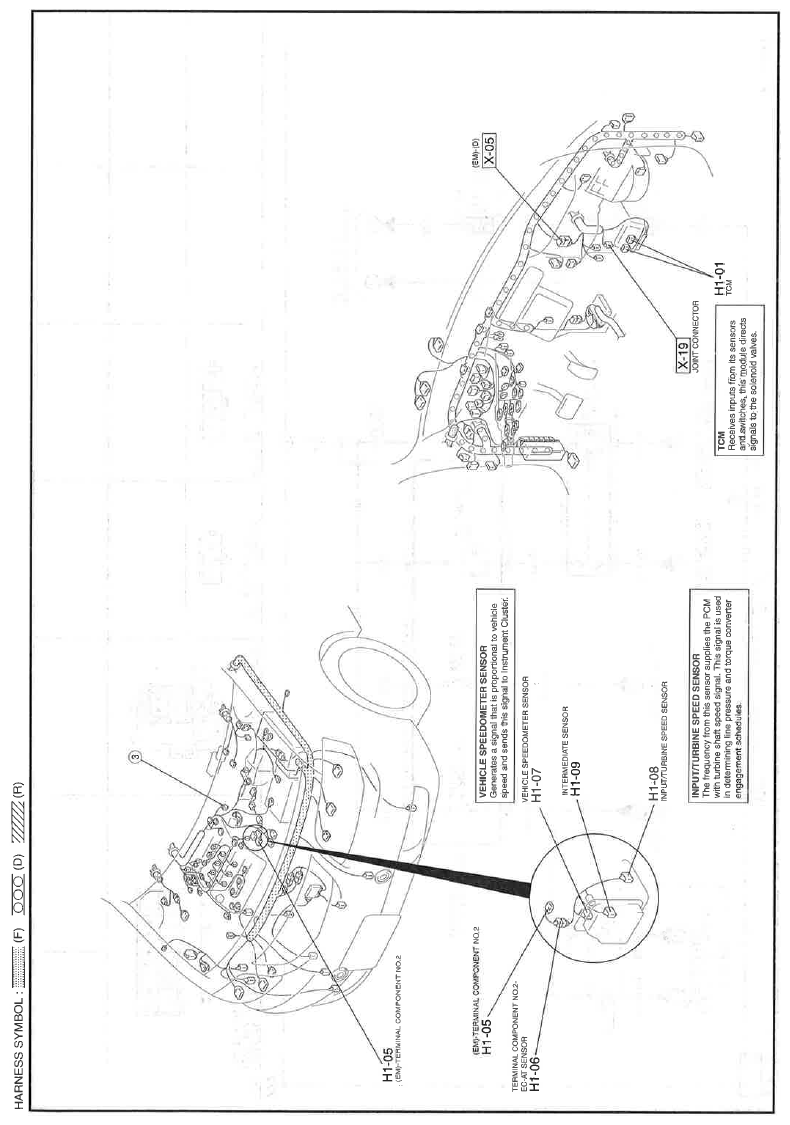

Fig 6: EC-AT Control System Wiring Diagram (H-1c; 2 Of 2)
G11559929Courtesy of MAZDA MOTORS CORP.
