Steering Gear Components

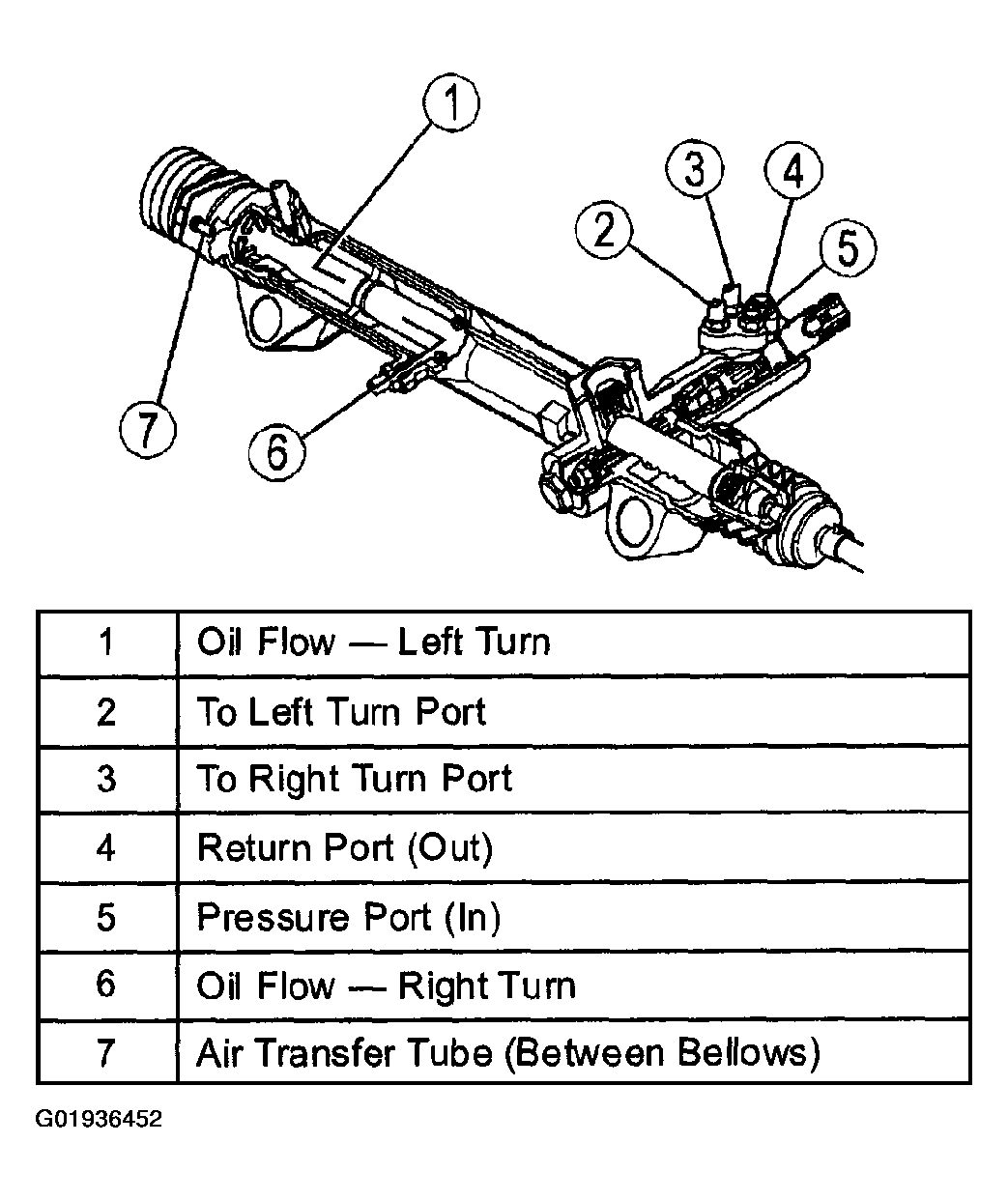

Fig 1: Locating Steering Gear Components

G01936452

Courtesy of MAZDA MOTORS CORP.
