Cooling System Pinpoint Test 1: Loss Of Coolant

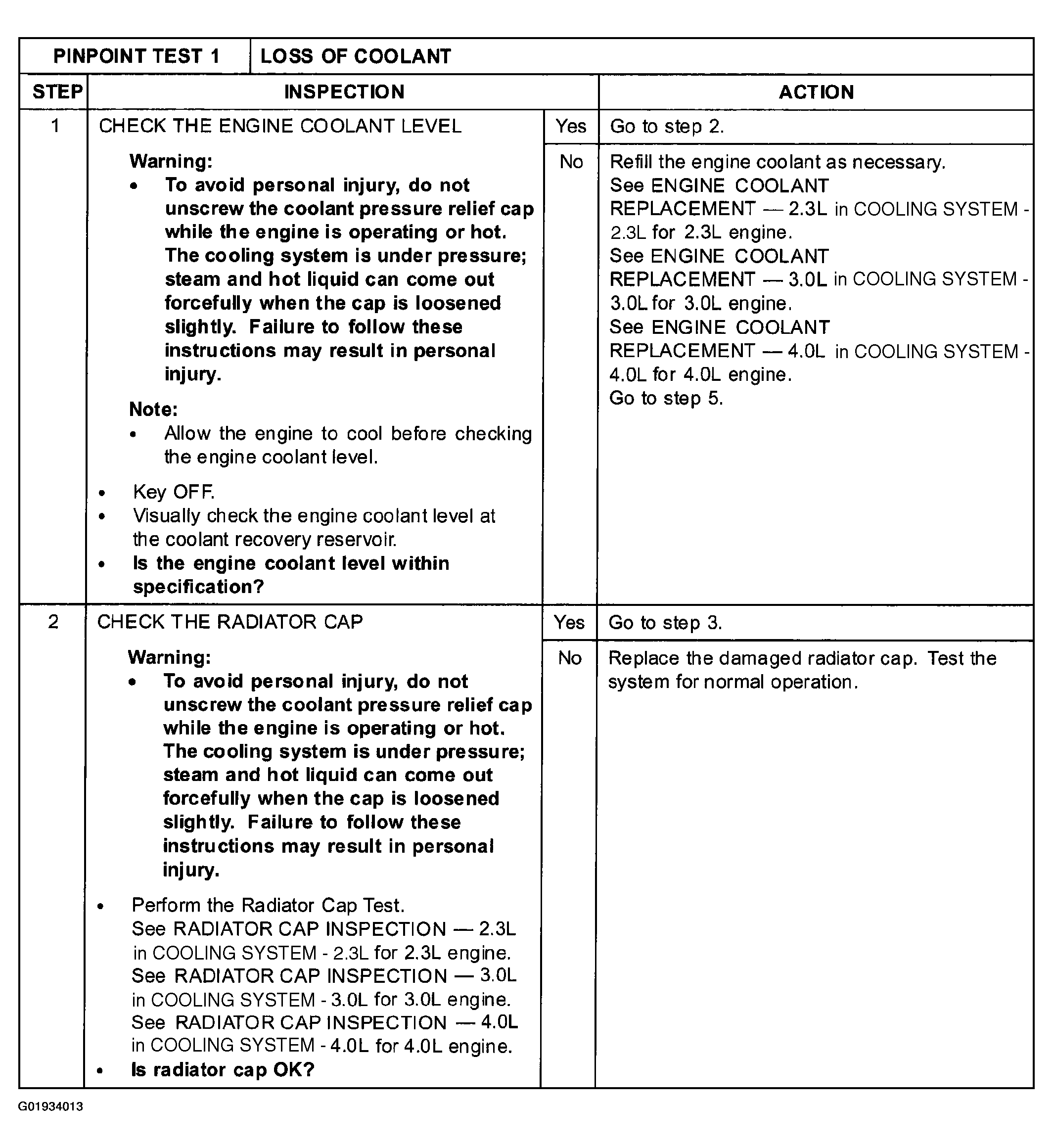

Fig 1: Cooling System Pinpoint Test 1: Loss Of Coolant (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

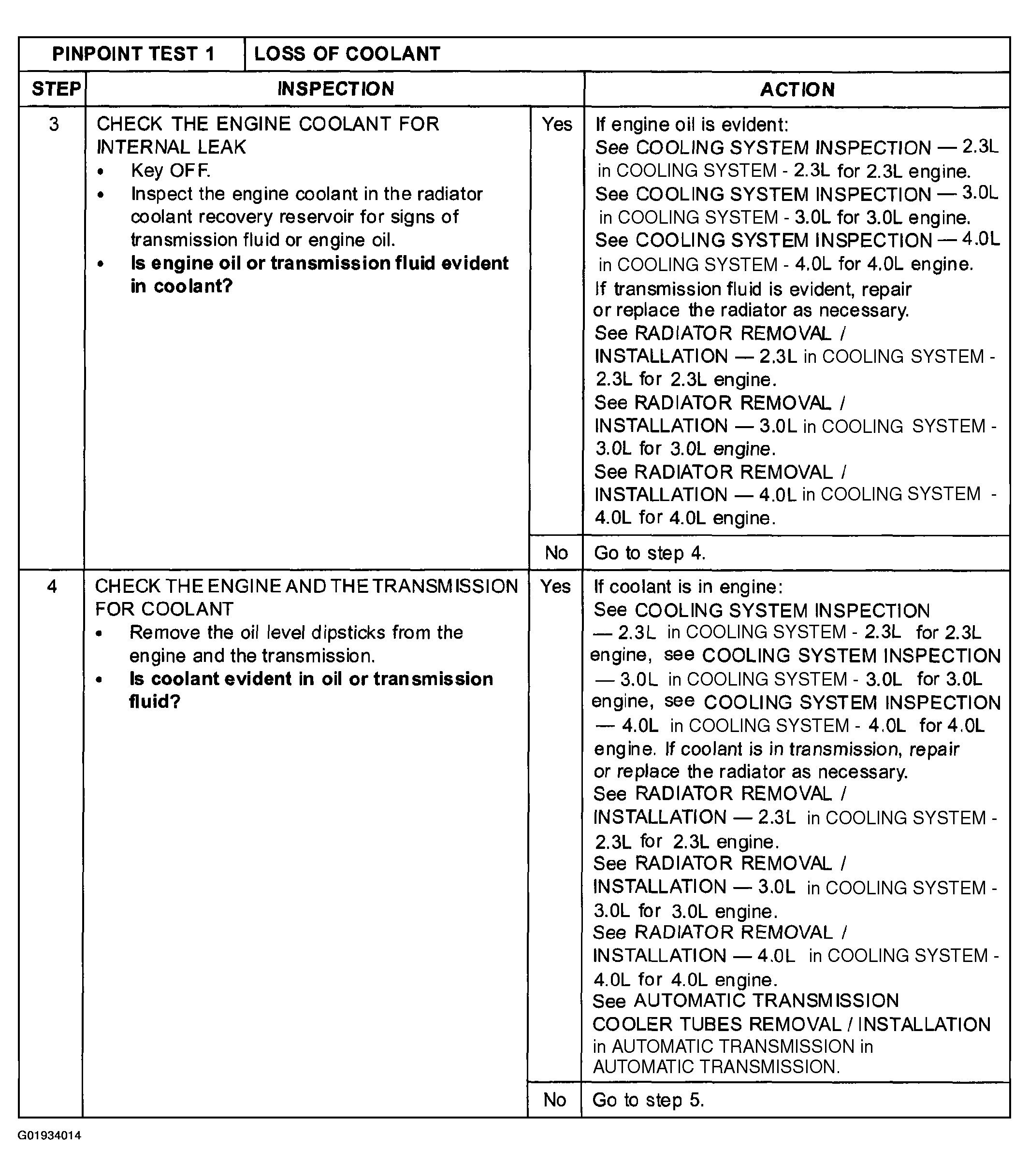

Fig 2: Cooling System Pinpoint Test 1: Loss Of Coolant (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

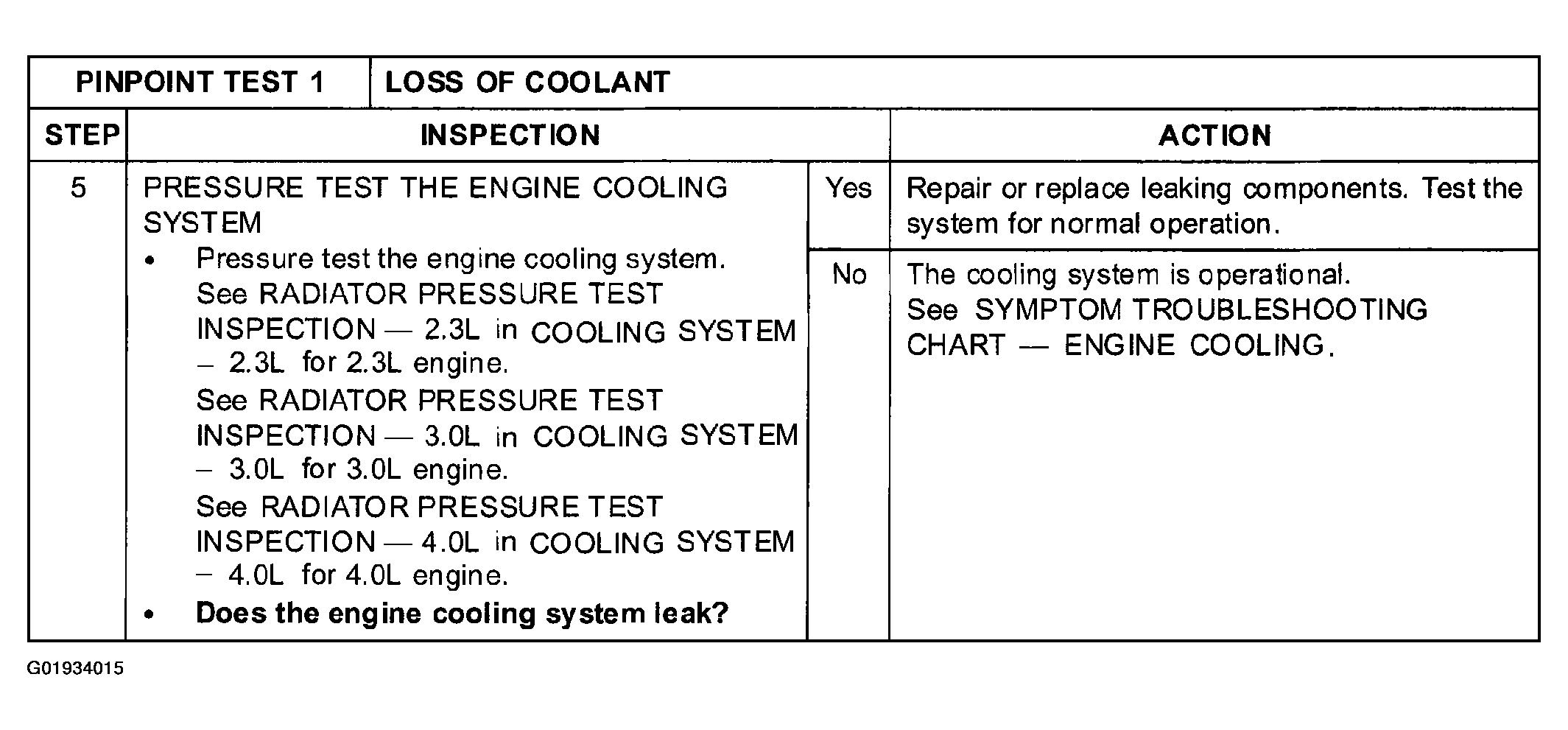

Fig 3: Cooling System Pinpoint Test 1: Loss Of Coolant (Step 5)

Courtesy of MAZDA MOTORS CORP.
