DTC P0460: Fuel Level Input (FLI) Circuit Malfunction

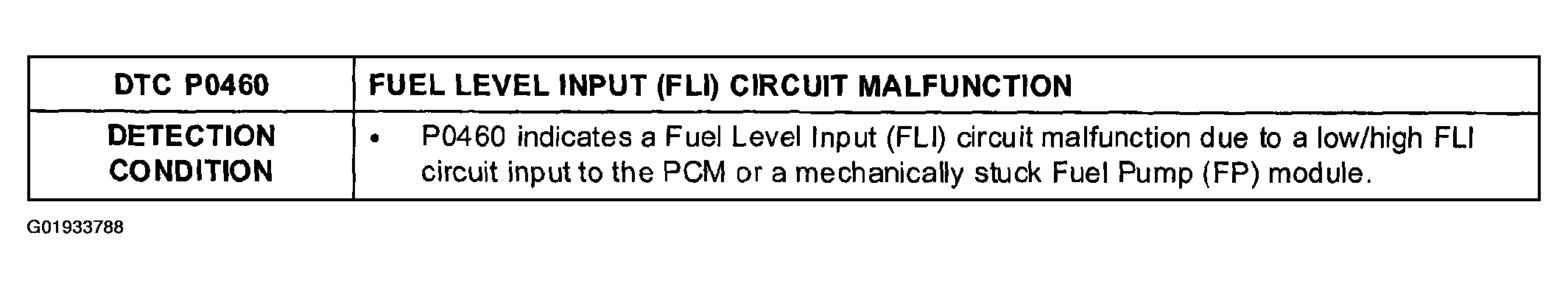

Fig 1: Fuel Level Input (FLI) Circuit Malfunction Detection Condition

Courtesy of MAZDA MOTORS CORP.

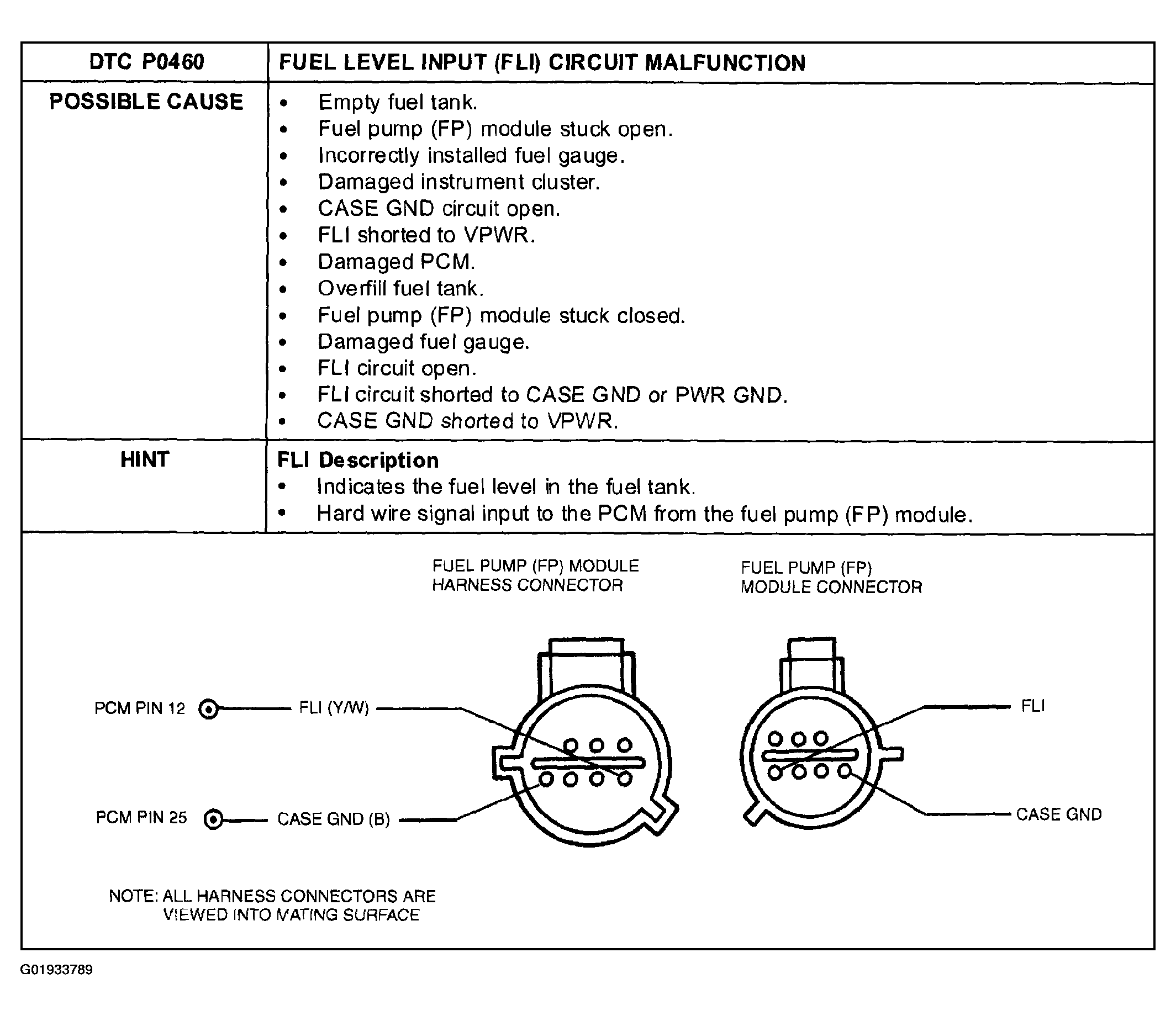

Fig 2: FLI Circuit Malfunction Possible Causes

Courtesy of MAZDA MOTORS CORP.

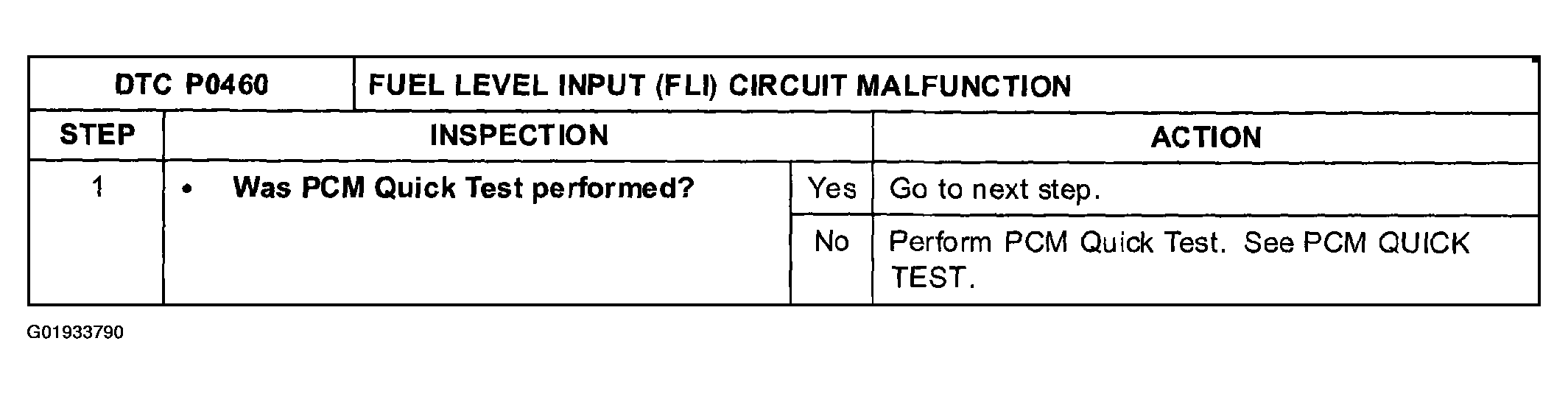

Fig 3: Diagnostic Procedure (DTC P0460) (Step 1)

Courtesy of MAZDA MOTORS CORP.

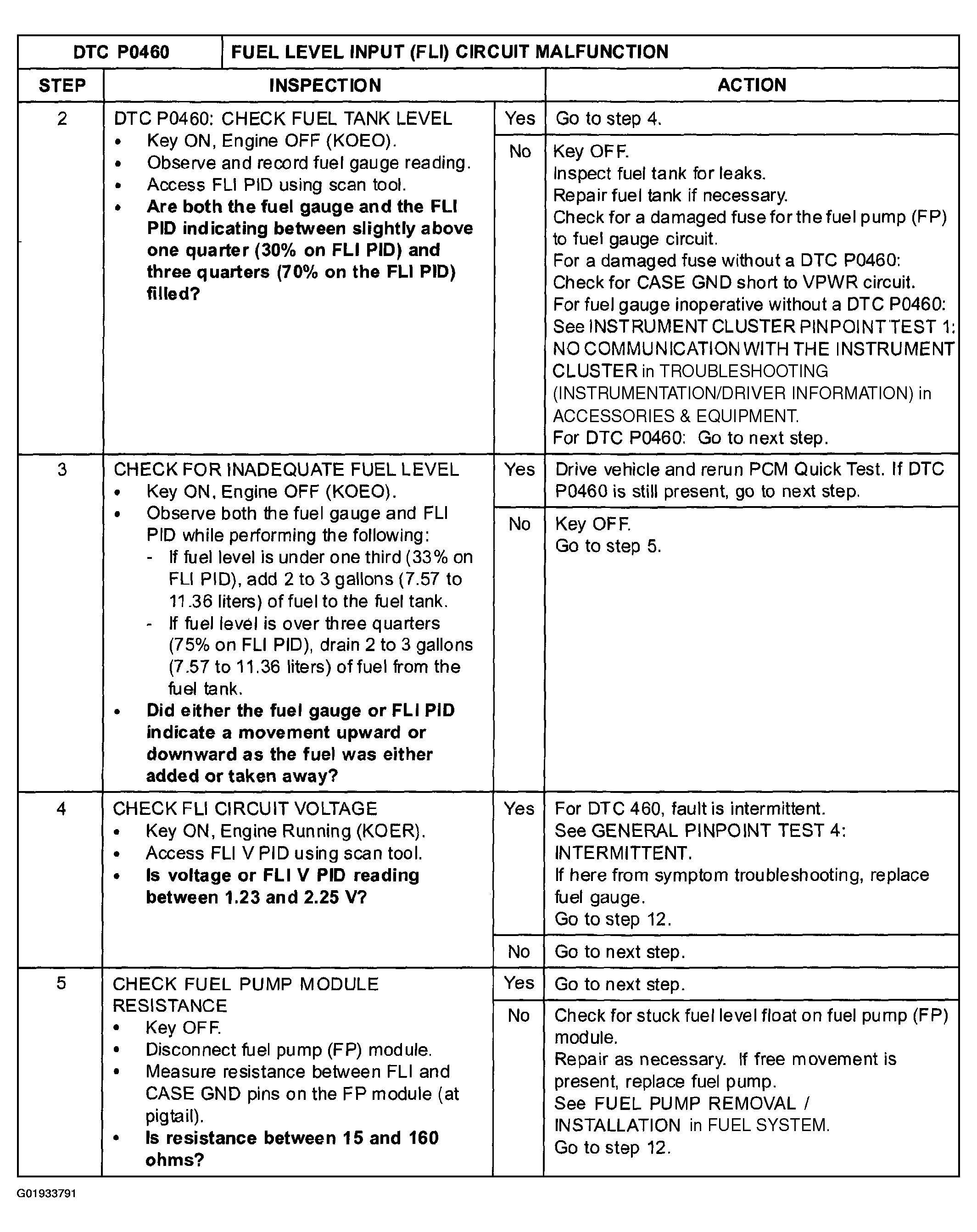

Fig 4: Diagnostic Procedure (DTC P0460) (Steps 2-5)

Courtesy of MAZDA MOTORS CORP.

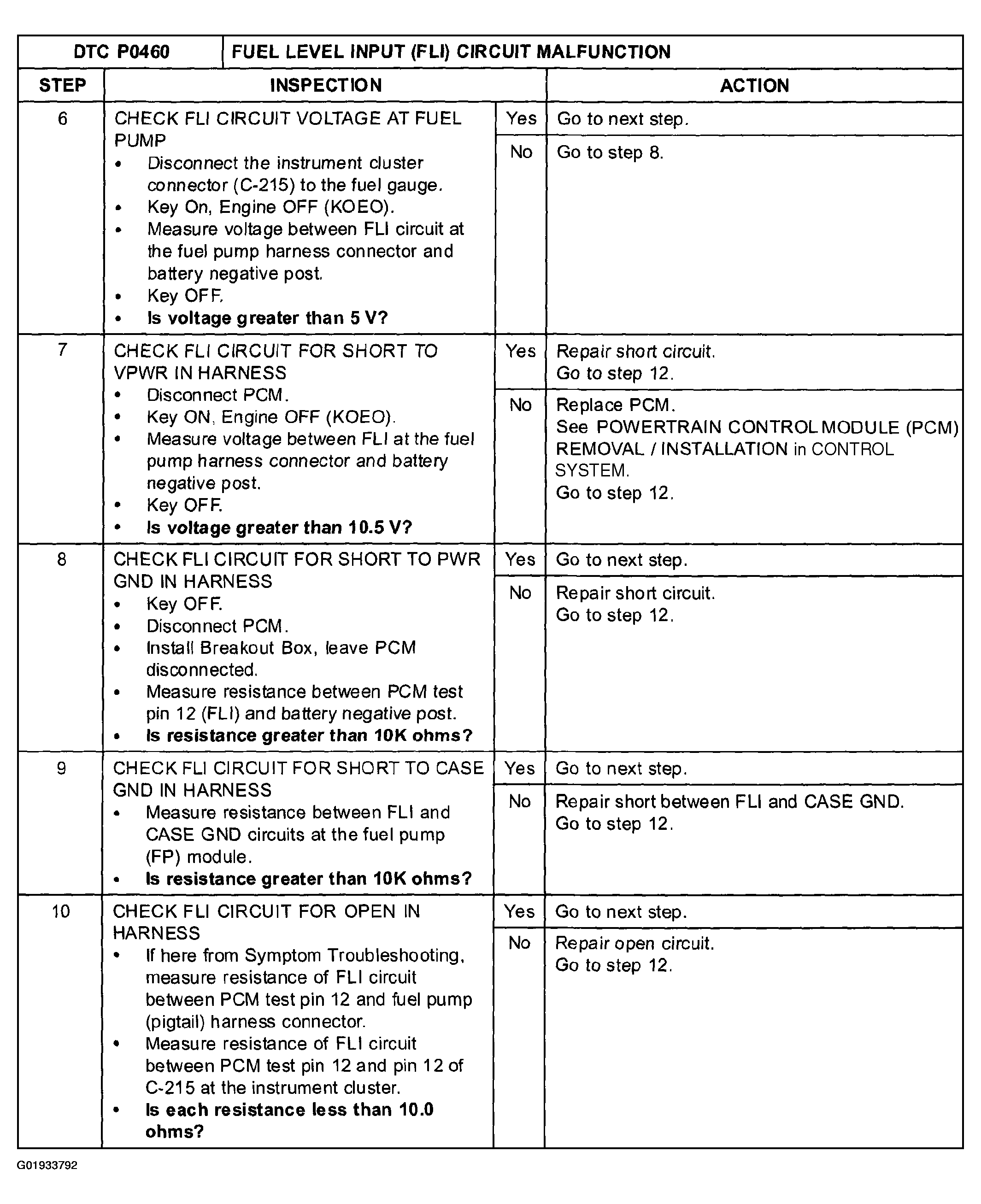

Fig 5: Diagnostic Procedure (DTC P0460) (Steps 6-10)

Courtesy of MAZDA MOTORS CORP.

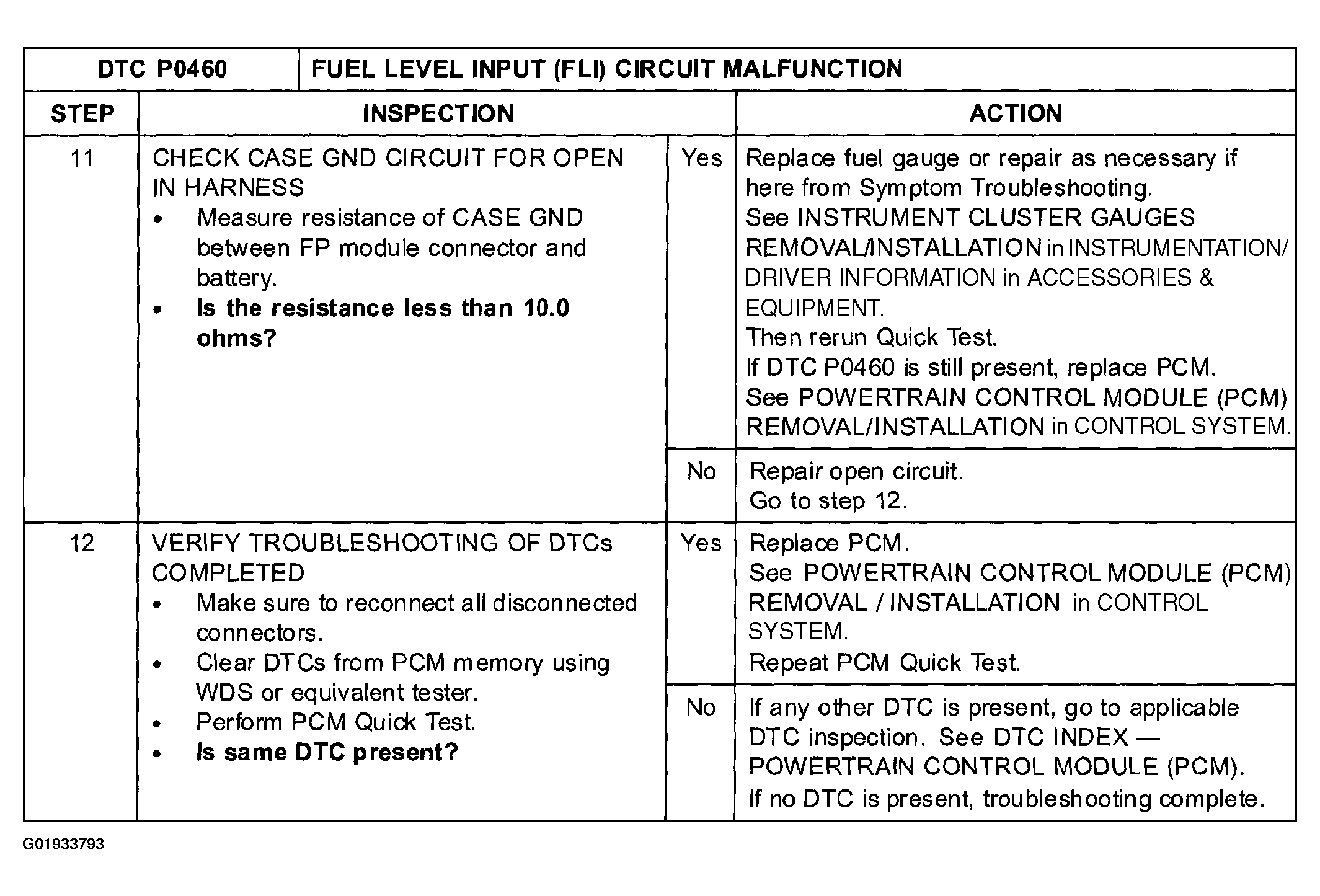

Fig 6: Diagnostic Procedure (DTC P0460) (Steps 11-12)

Courtesy of MAZDA MOTORS CORP.
