Symptom Troubleshooting Chart - Acceleration Control - 4.0L

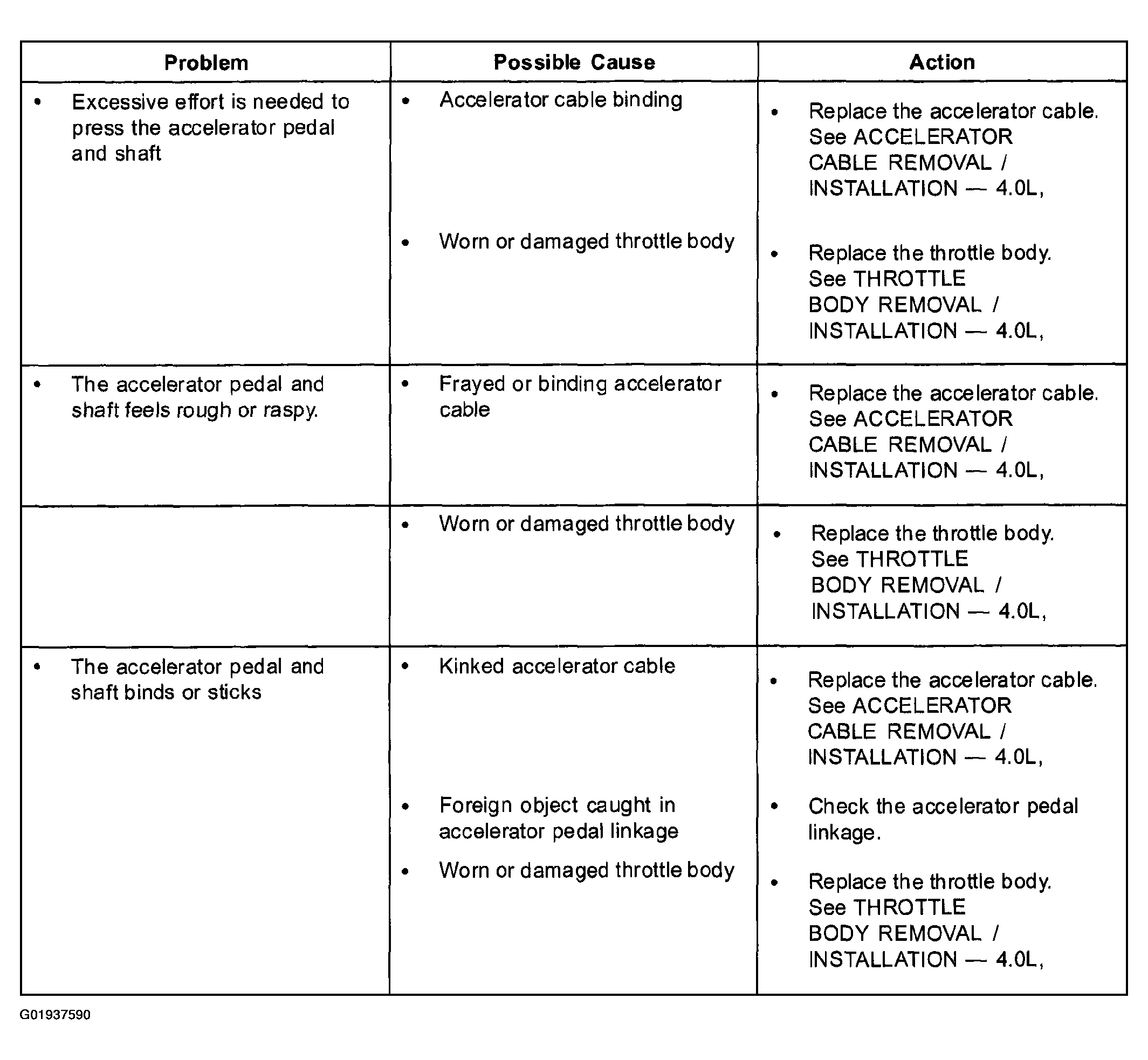

Fig 1: Symptom Troubleshooting Chart -Acceleration Control - 4.0L (1 Of 2)
G01937590Courtesy of MAZDA MOTORS CORP.

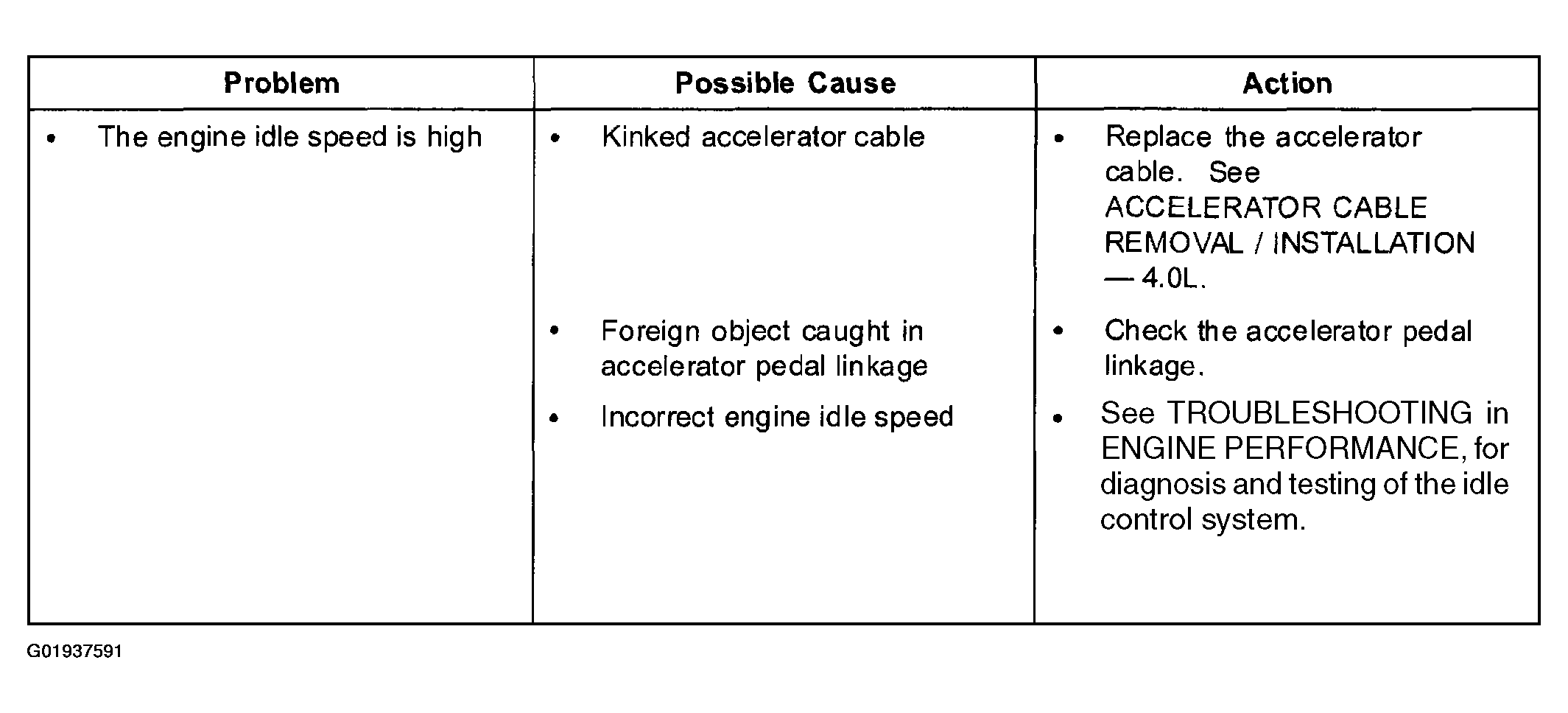

Fig 2: Symptom Troubleshooting Chart -Acceleration Control - 4.0L (2 Of 2)
G01937591Courtesy of MAZDA MOTORS CORP.
