Installation Note:

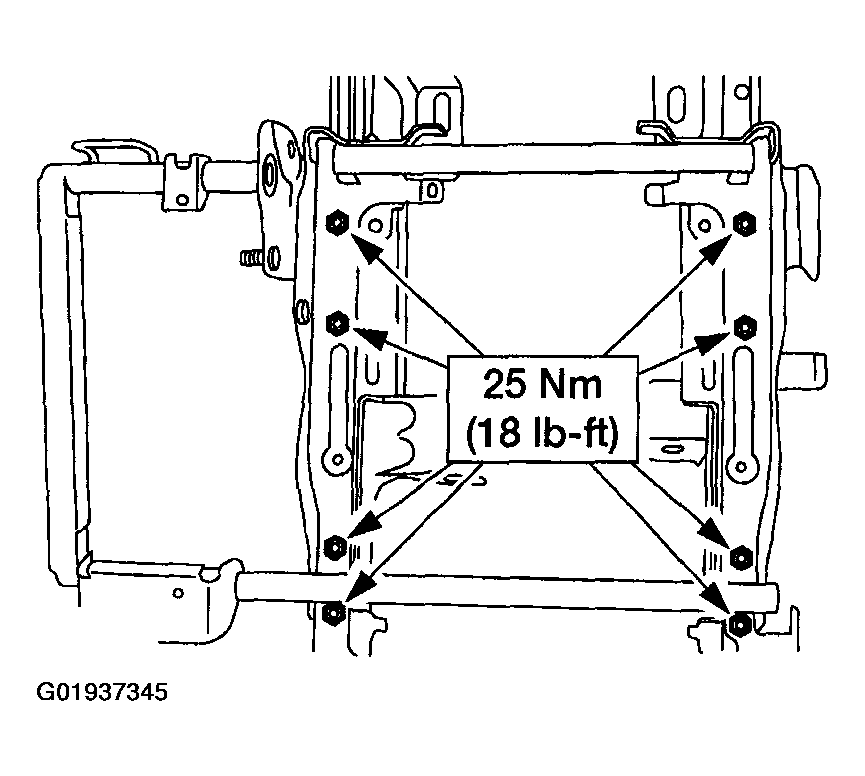

Fig 1: Installing Seat Track-To-Cushion Frame Nuts
G01937345Courtesy of MAZDA MOTORS CORP.
  1. Install the seat track-to-cushion frame and install the eight nuts.

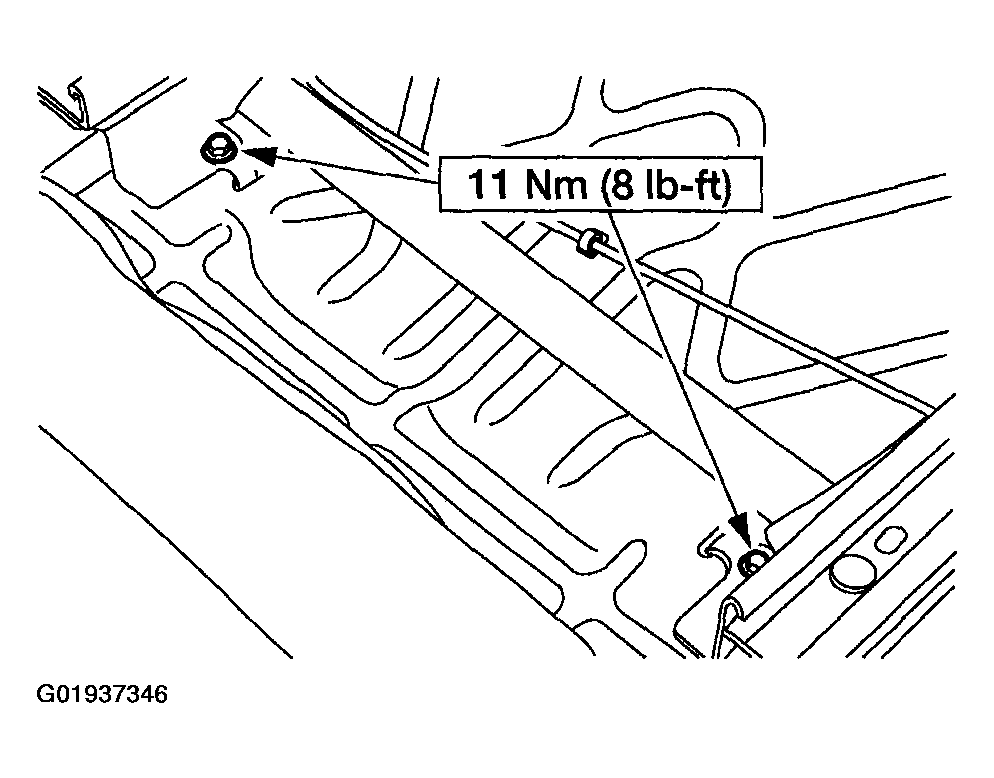

    Fig 2: Installing Front Seat Cushion-To-Frame Bolts
    G01937346Courtesy of MAZDA MOTORS CORP.
  2. Install the two front seat cushion-to-frame bolts.

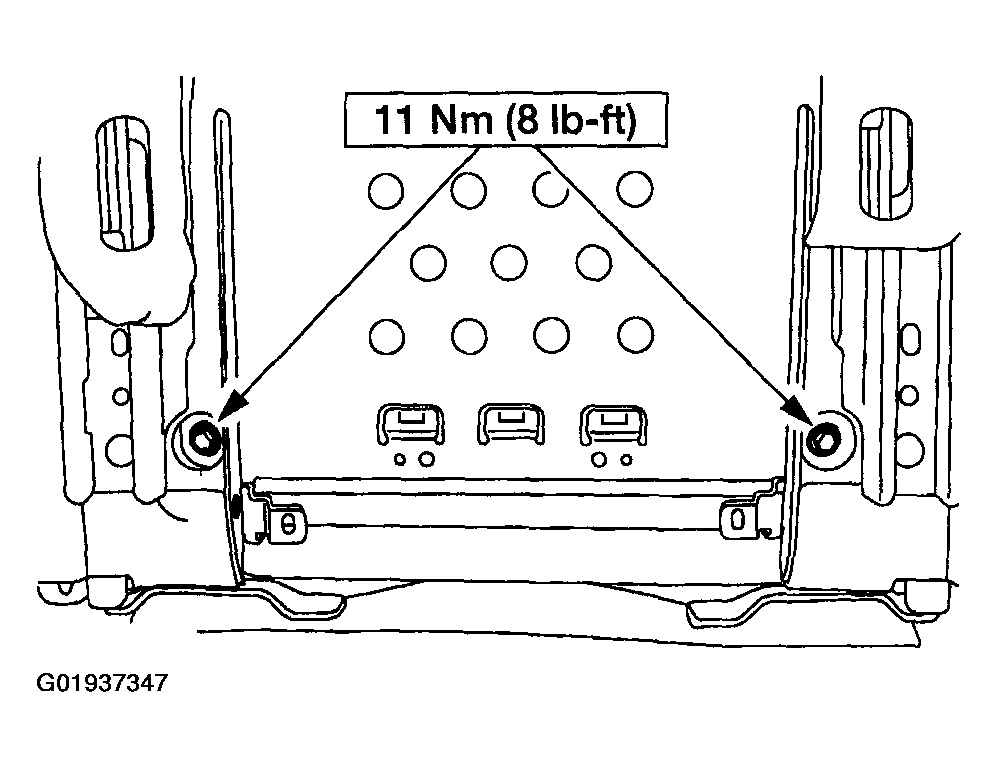

    Fig 3: Installing Rear Seat Cushion-To-Frame Bolts
    G01937347Courtesy of MAZDA MOTORS CORP.
  3. Install the two rear seat cushion-to-frame bolts.

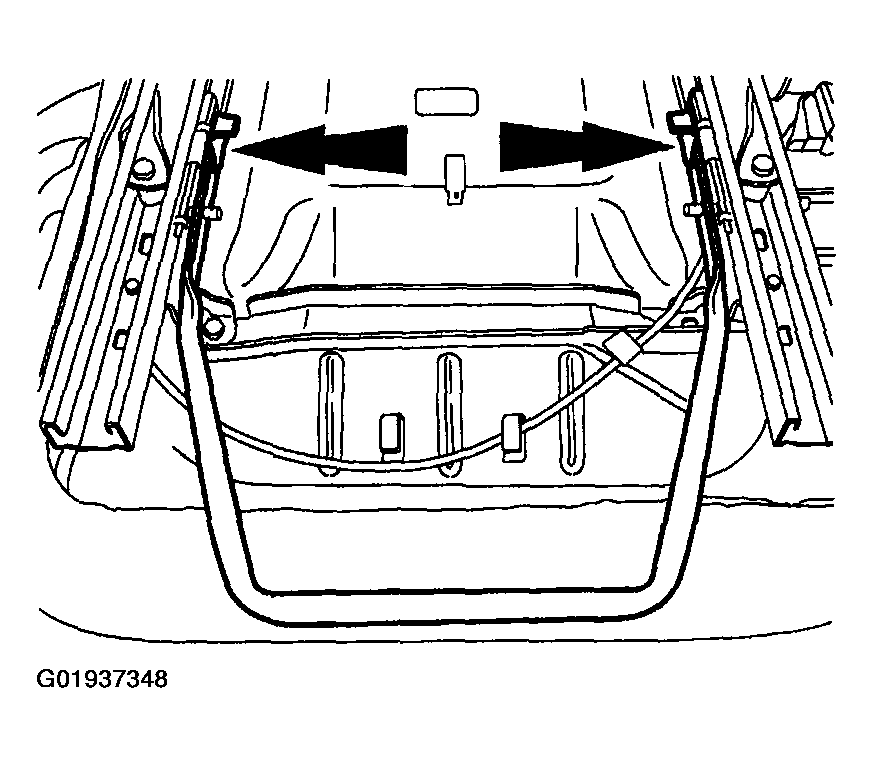

    Fig 4: Installing Seat Track Adjustment Lever
    G01937348Courtesy of MAZDA MOTORS CORP.
  4. Install the seat track adjustment lever.
    • Install one side of the seat track adjustment lever at a time.

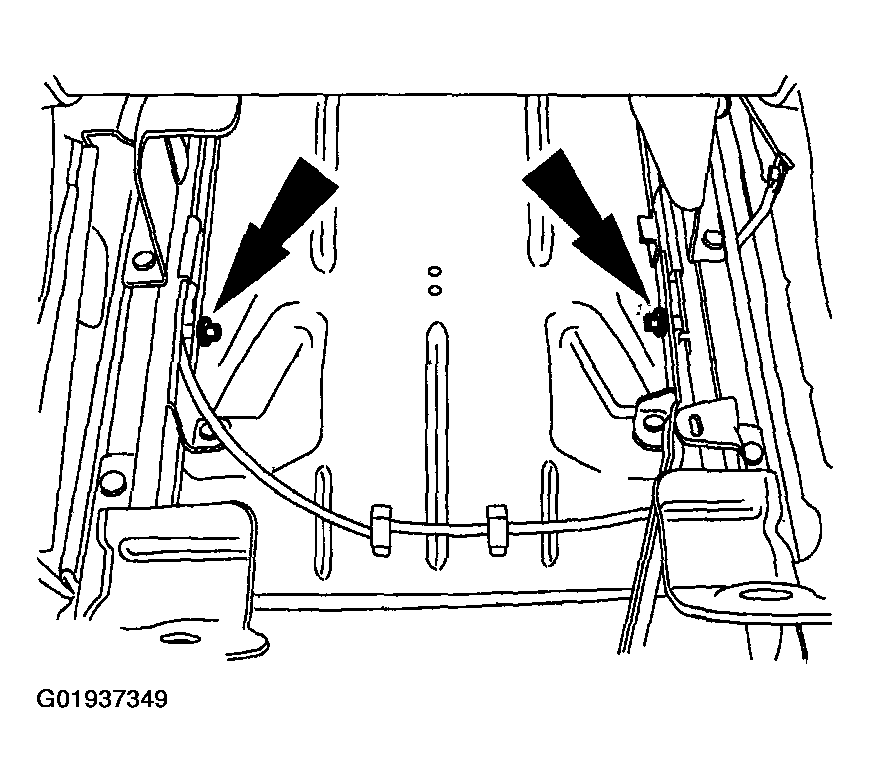

    Fig 5: Installing Push Nuts
    G01937349Courtesy of MAZDA MOTORS CORP.
  5. Install the push nuts.

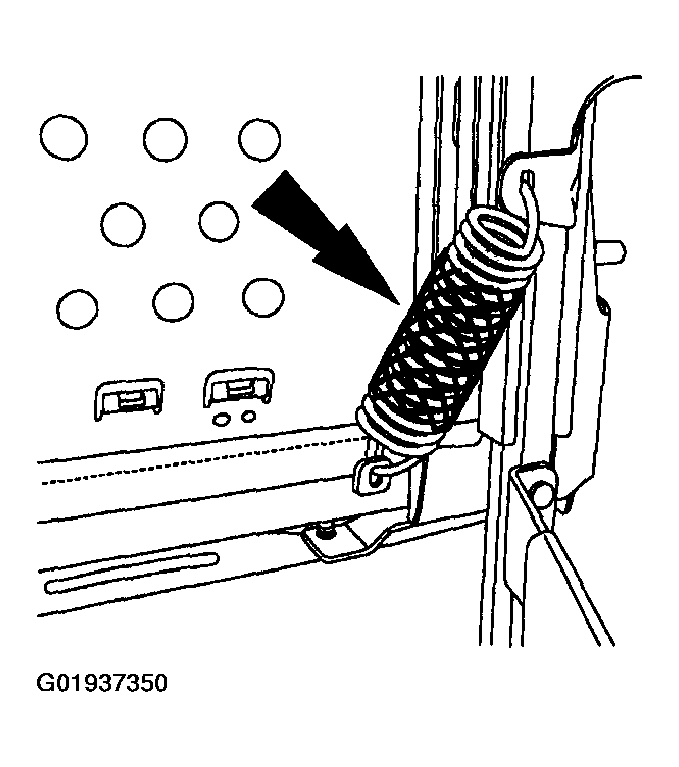

    Fig 6: Installing Seat Track Spring
    G01937350Courtesy of MAZDA MOTORS CORP.
  6. Install the seat track spring.
  7. Install the 60 percent bench seat backrest assembly. See SEAT BACKREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
  8. Install the 60 percent bench armrest. See SEAT ARMREST FRONT - 60 PERCENT BENCH REMOVAL/INSTALLATION  .
  9. Install the effected seat. See SEAT BUCKET FRONT REMOVAL/INSTALLATION  .
  10. Repower the SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
