DTC P1780: Transmission Control Switch (TCS) Or Transmission Control Indicator Lamp (TCIL) Circuit Malfunction
DTC P1780: Transmission Control Switch (TCS) Or Transmission Control Indicator Lamp (TCIL) Circuit Malfunction

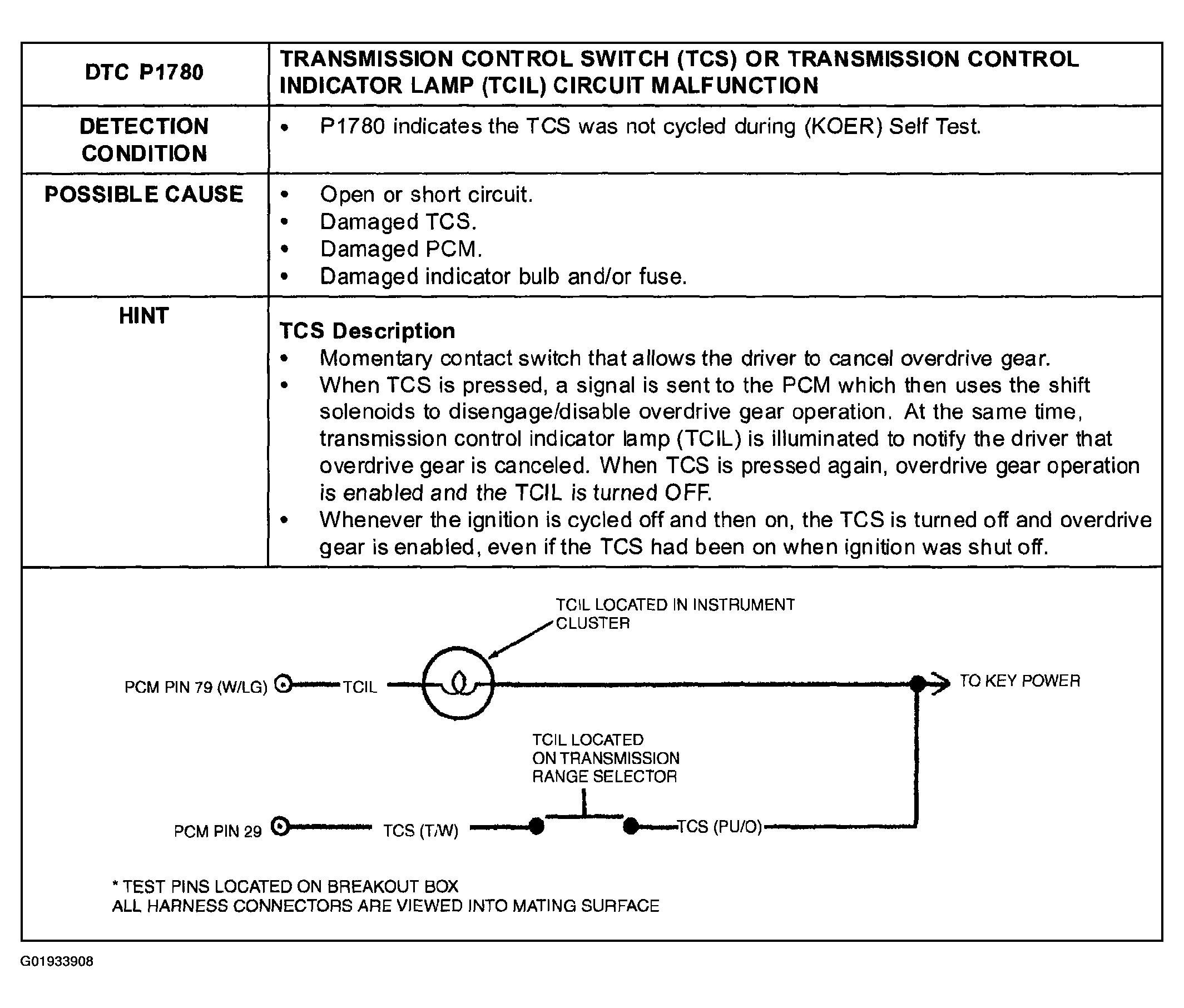

Fig 1: Transmission Control Switch (TCS) Or Transmission Control Indicator Lamp (TCIL) Circuit Malfunction Detection Condition
Courtesy of MAZDA MOTORS CORP.

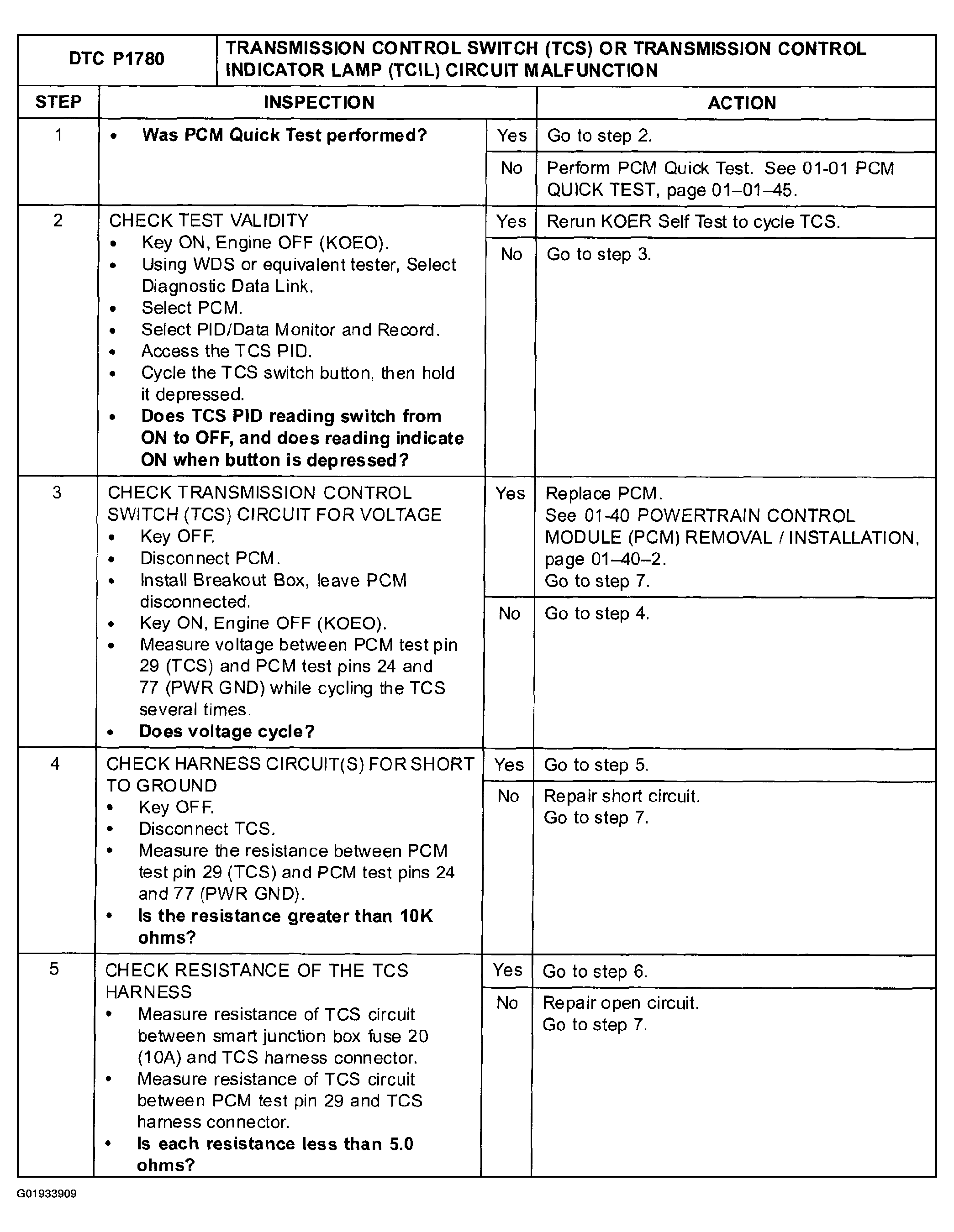

Fig 2: Diagnostic Procedure (DTC P1780) (Steps 1-5)
Courtesy of MAZDA MOTORS CORP.

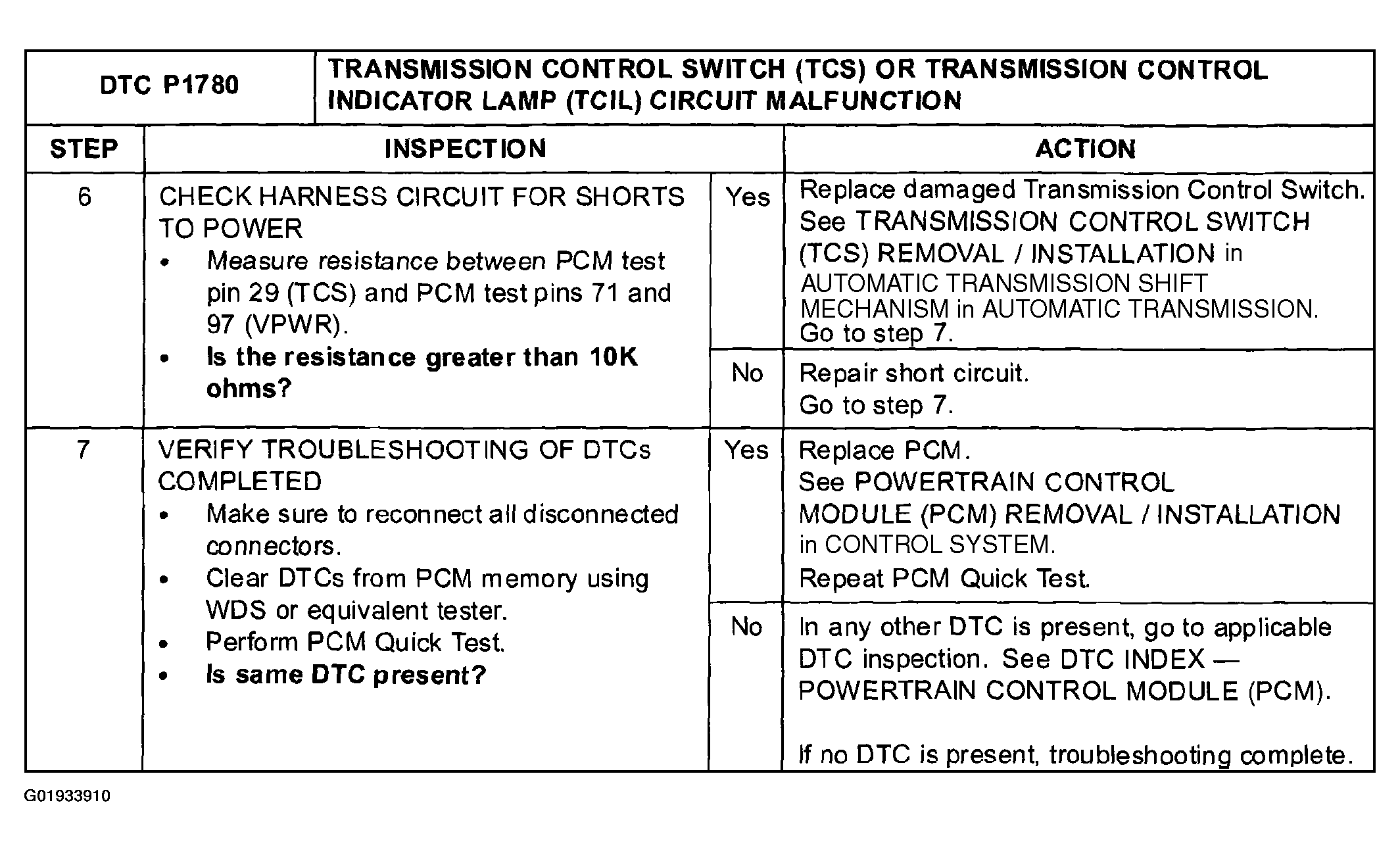

Fig 3: Diagnostic Procedure (DTC P1780) (Steps 6-7)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
