Module Does Not Respond To The WDS Tester - Diagnostic Monitor

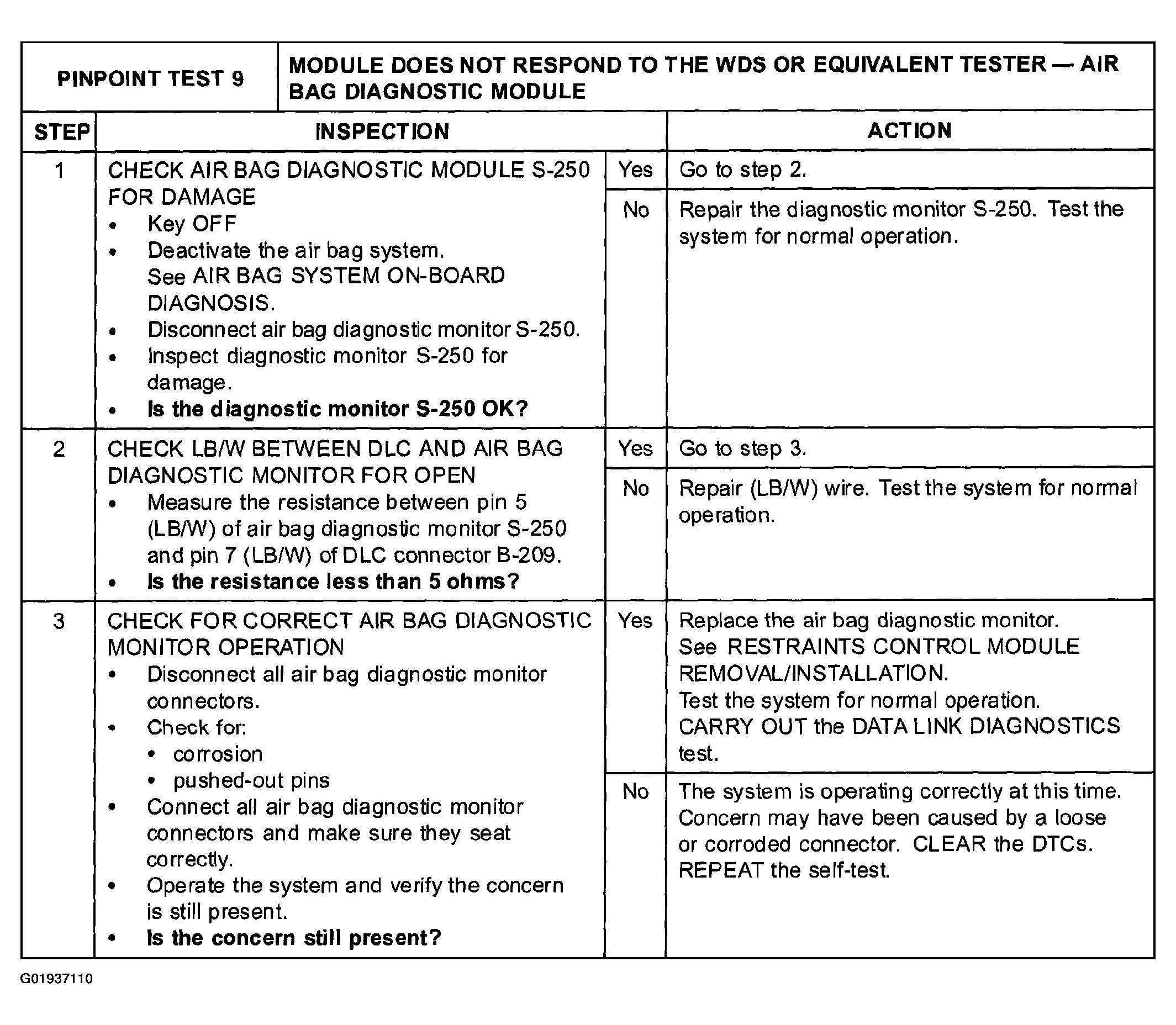

Fig 1: Pinpoint Test 9: Air Bag Diagnostic Module Does Not Respond To WDS Tester Inspection Table (Steps 1-3)
G01937110Courtesy of MAZDA MOTORS CORP.

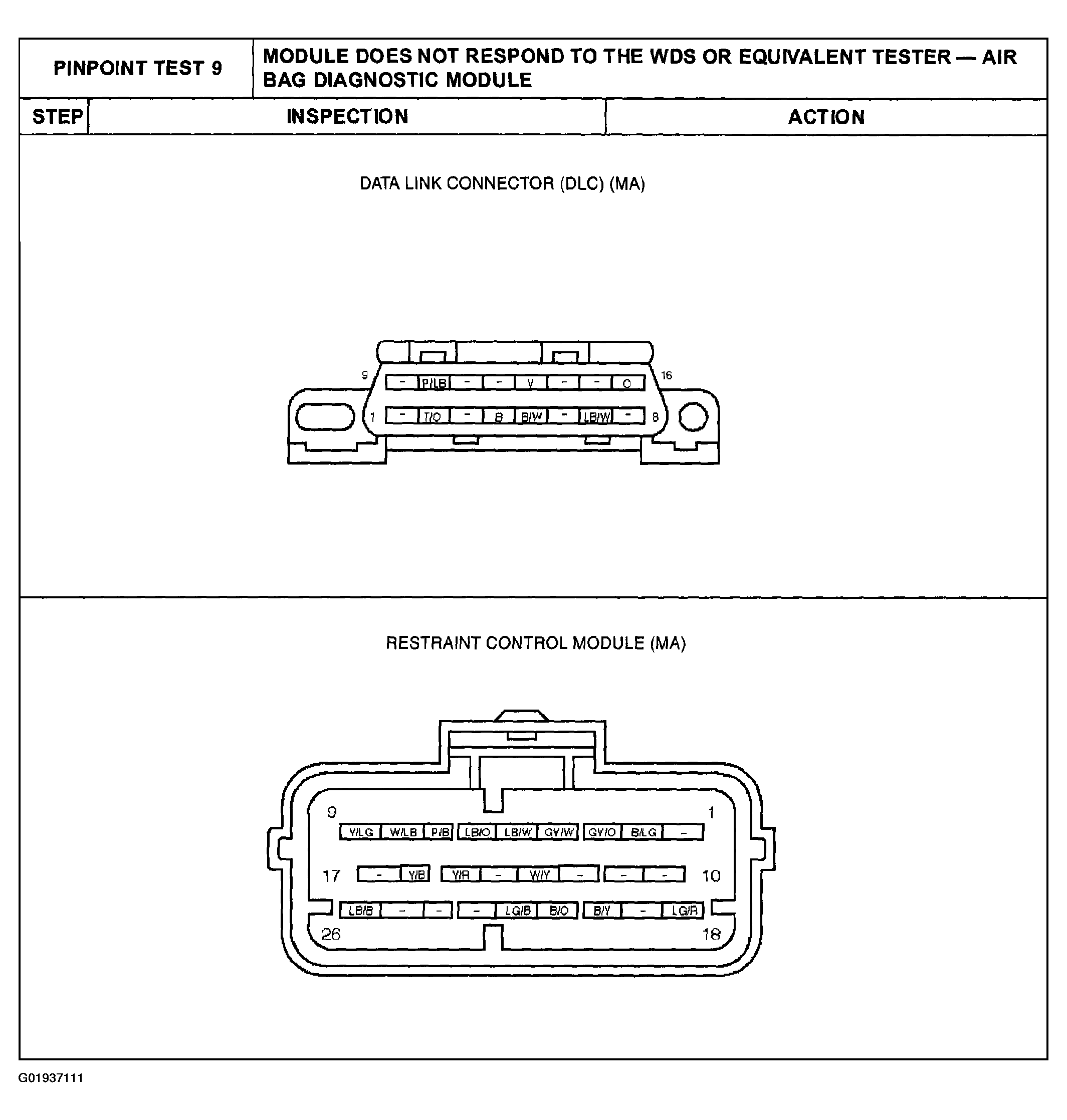

Fig 2: Identifying Data Link Connector (MA) And Restraint Control Module (MA) Connector Terminal Wire Color
G01937111Courtesy of MAZDA MOTORS CORP.
