Module Does Not Respond To The Diagnostic Tool - Anti-Lock Brake System (Abs)

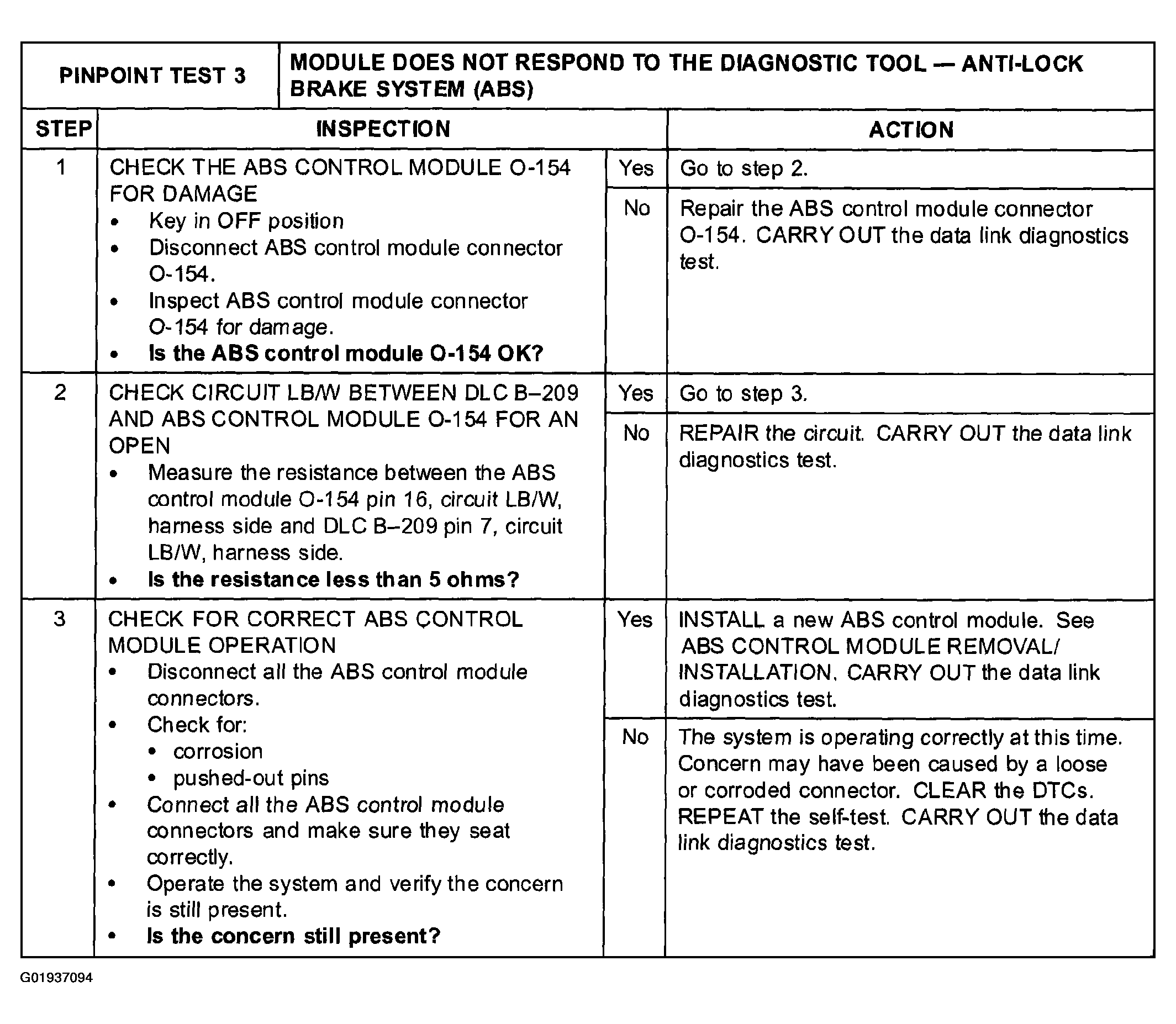

Fig 1: Pinpoint Test 3: Anti-Lock Brake System Module Does Not Respond To Diagnostic Tool Inspection Table (Steps 1-3)
G01937094Courtesy of MAZDA MOTORS CORP.

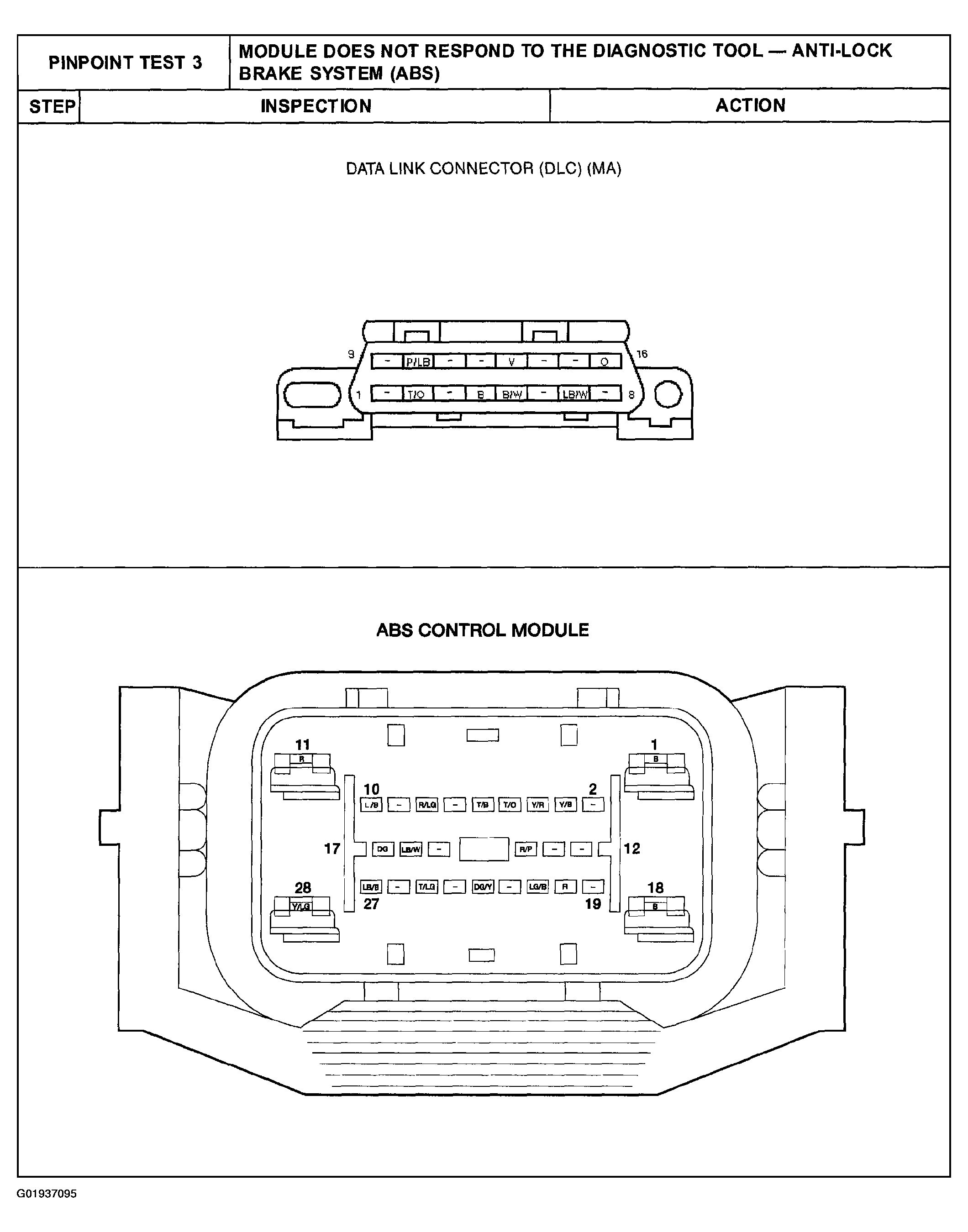

Fig 2: Identifying Data Link Connector And ABS Control Module Connector Terminal Wire Color
G01937095Courtesy of MAZDA MOTORS CORP.
