Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly

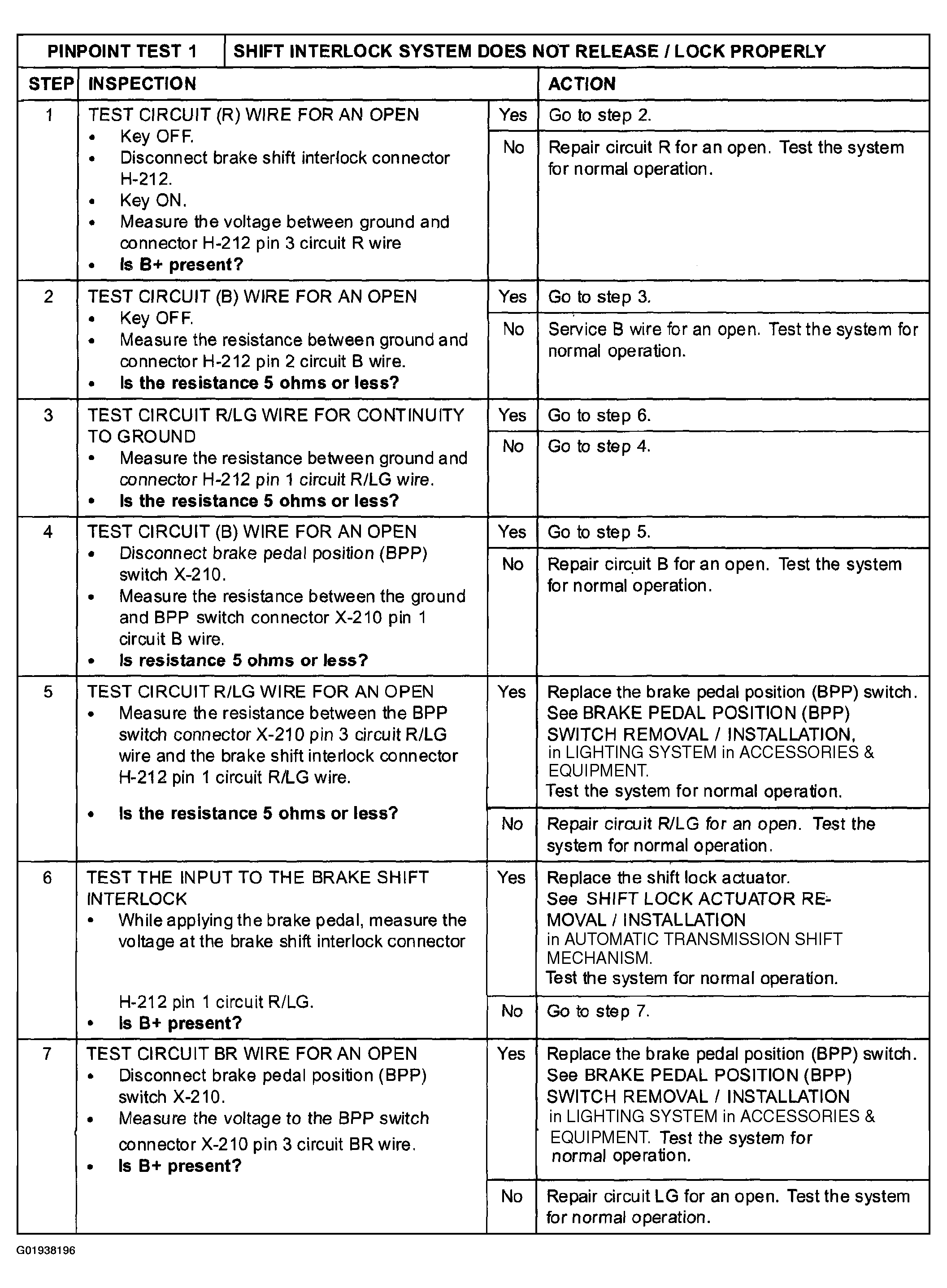

Fig 1: Automatic Transmission External Controls Pinpoint Test 1: Shift Interlock System Does Not Release/Lock Properly
G01938196Courtesy of MAZDA MOTORS CORP.
