Shoulder Height Adjuster Removal/Installation - Cab Plus 4

  1. Remove the rear door trim panel. See B-PILLAR TRIM (4-DOOR) REMOVAL/INSTALLATION .
  2. Remove the two bolts (1).
  3. Remove the height adjuster (2).

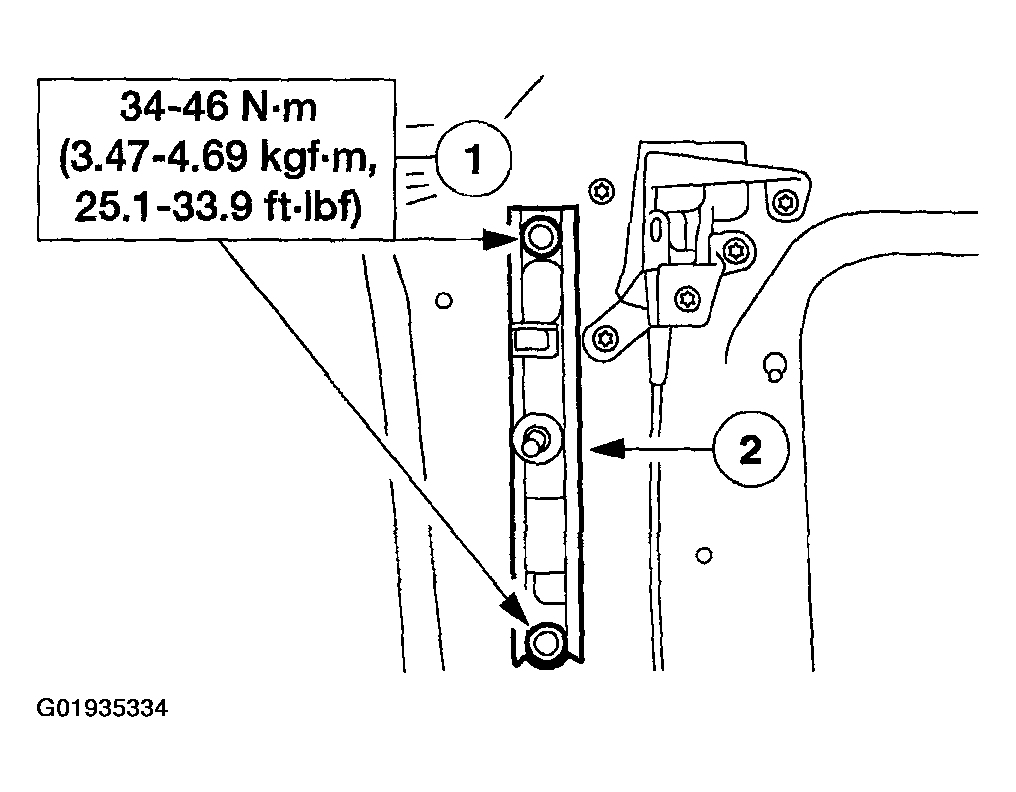

    Fig 1: Removing Shoulder Height Adjuster
    G01935334Courtesy of MAZDA MOTORS CORP.
  4. Install in reverse order of removal.
  5. Check the height adjuster for proper operation.
