A/C Does Not Cut-Off Under Wide Open Throttle Conditions

Fig 1: Pinpoint Test 21 -A/C Does Not Cut-Off Under Wide Open Throttle Conditions Description

Courtesy of MAZDA MOTORS CORP.

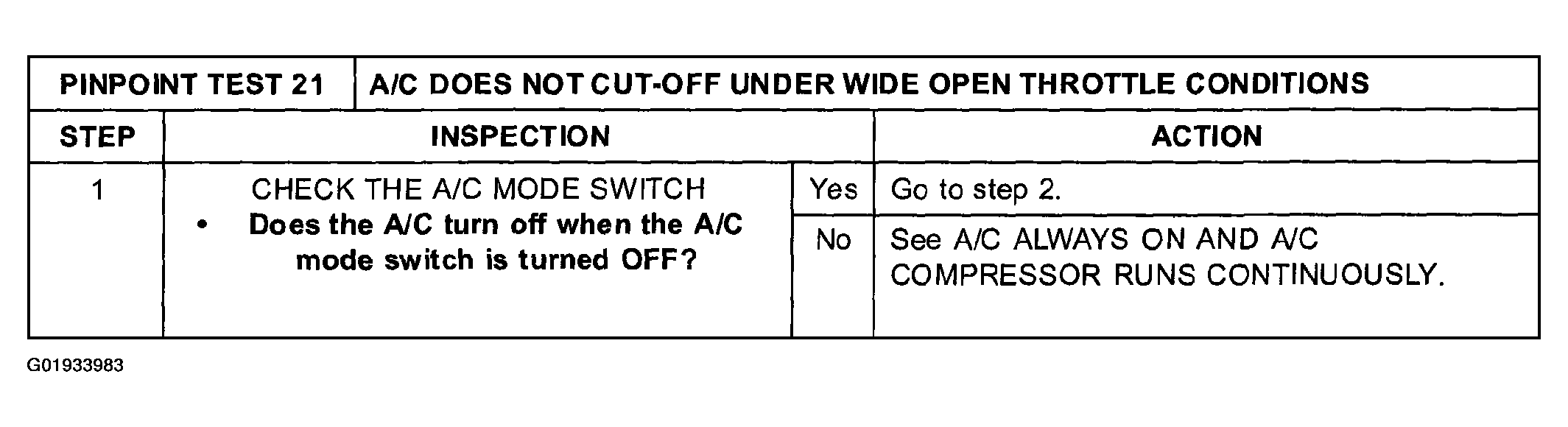

Fig 2: Pinpoint Test 21 -A/C Does Not Cut-Off Under Wide Open Throttle Conditions (Step 1)

Courtesy of MAZDA MOTORS CORP.

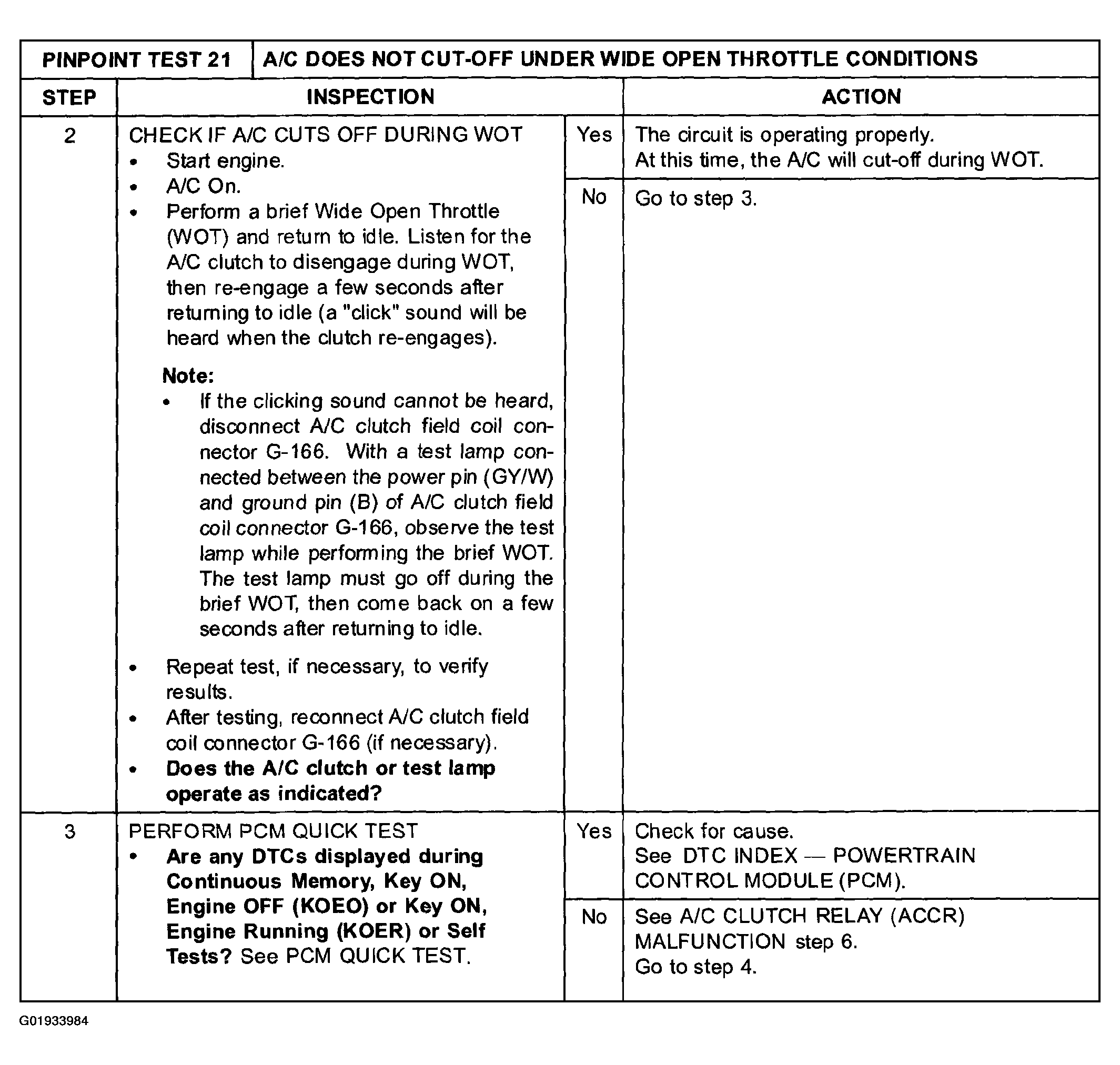

Fig 3: Pinpoint Test 21 -A/C Does Not Cut-Off Under Wide Open Throttle Conditions (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

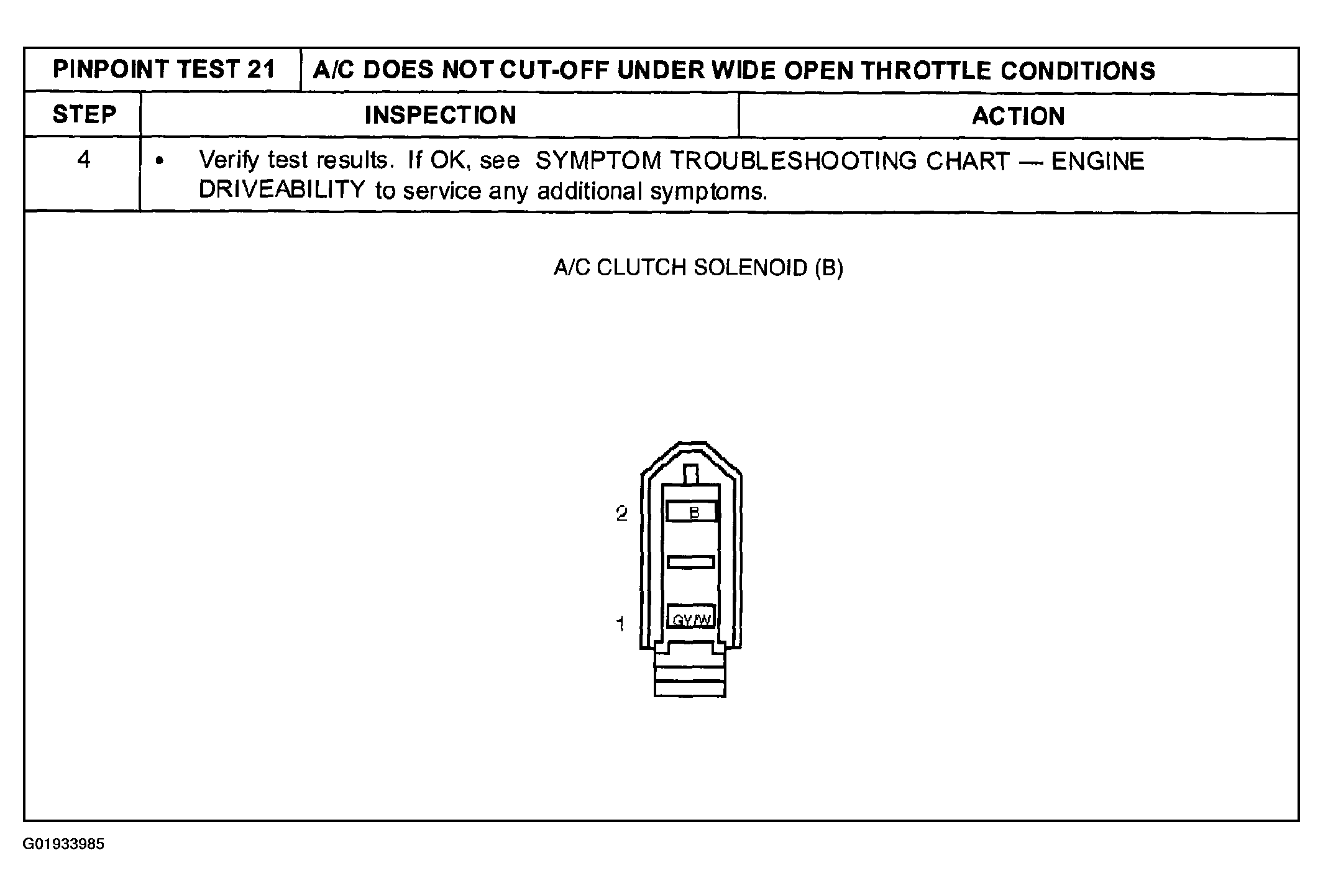

Fig 4: Pinpoint Test 21 -A/C Does Not Cut-Off Under Wide Open Throttle Conditions (Step 4)

Courtesy of MAZDA MOTORS CORP.
