Quarter Glass Rear (MOVEABLE) Removal/Installation

NOTE:
  • The rear quarter glass must be open to perform this step.
  1. Remove the two screws attaching the window latch to the glass.
    Fig 1: Removing Window Latch Screw
    G01937210Courtesy of MAZDA MOTORS CORP.
  2. Remove the B-pillar trim panel. See B-PILLAR TRIM (REGULAR CAB REMOVAL/INSTALLATION or See B-PILLAR TRIM (CAB PLUS - 2-DOOR)REMOVAL/INSTALLATION .
  3. Drill out the four rivets that attach the hinges to the body panel.

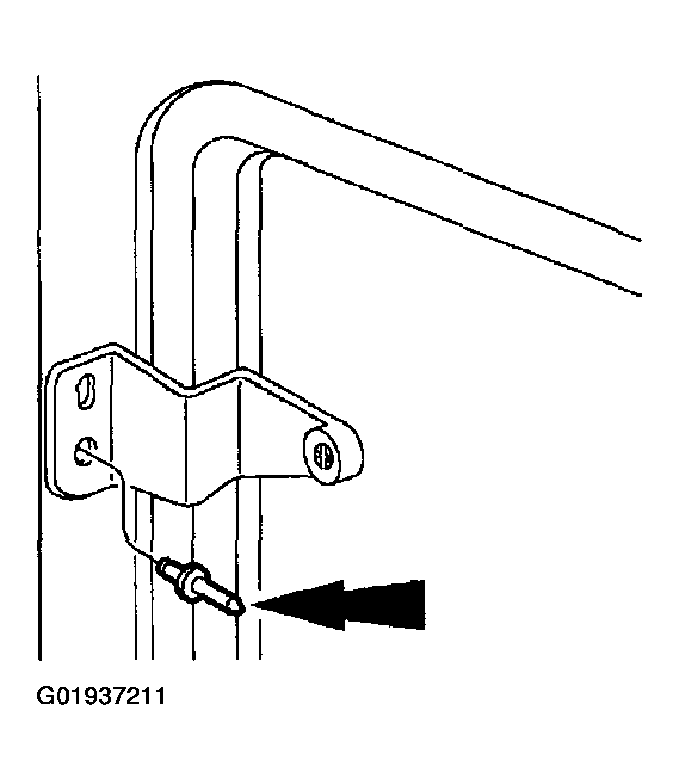

    Fig 2: Drilling Out Hinge Rivets
    G01937211Courtesy of MAZDA MOTORS CORP.
  4. Remove the rear quarter glass.
  5. Install in reverse order of removal.
