Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting [Engine Control System (AJ) >> No.20 Fuel Odor (In Engine Compartment) >> Notes

No.20 Fuel Odor (In Engine Compartment): Notes

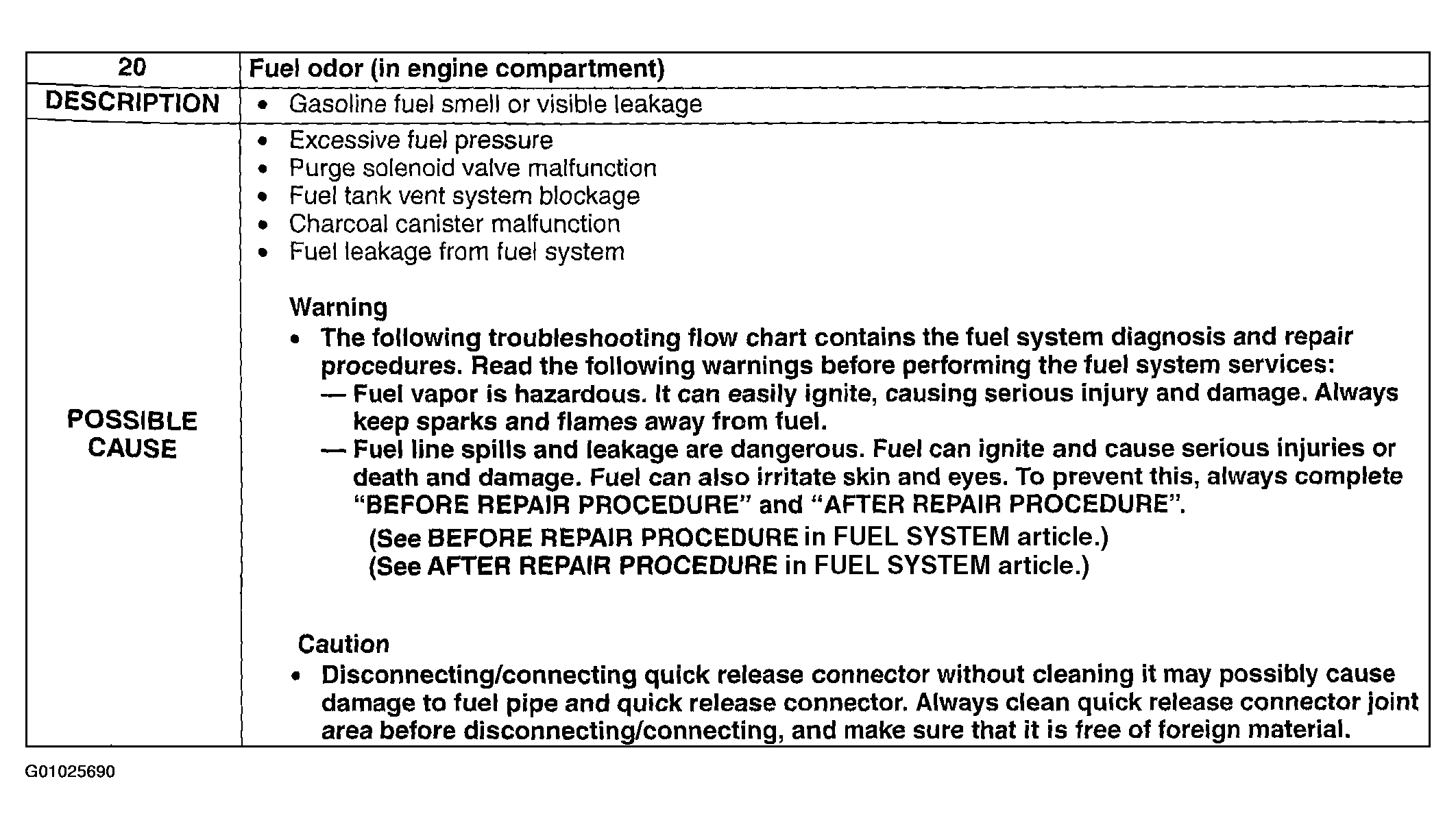

Fig 1: Symptom No.20 Fuel Odor (In Engine Compartment) - Description & Possible Causes
G01025690Courtesy of MAZDA MOTORS CORP.
