Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P2128: App Sensor No.2 Circuit High Input >> Diagnostic Procedure

Diagnostic Procedure

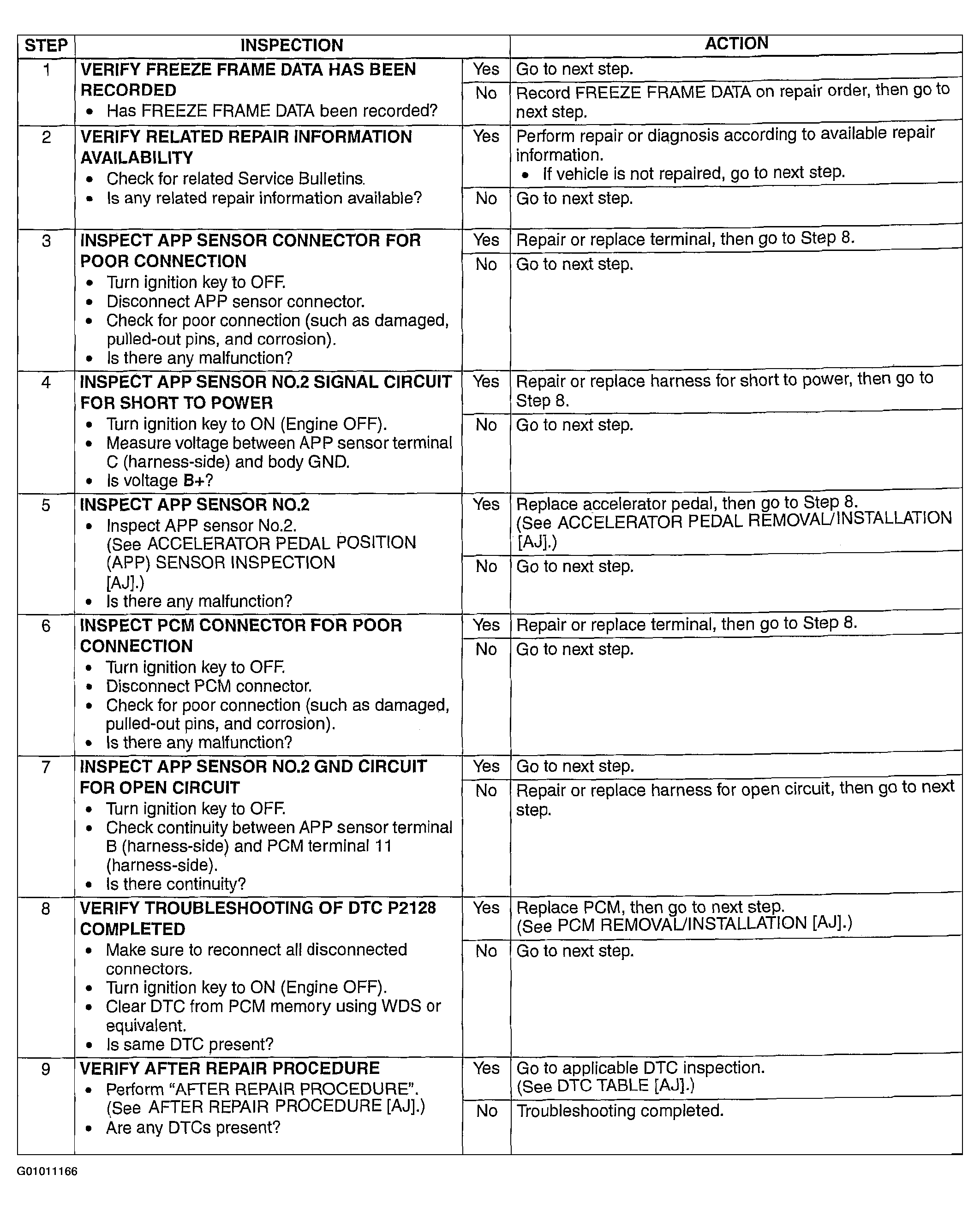

Fig 1: DTC P2128: Diagnostic Procedure Chart
G01011166Courtesy of MAZDA MOTORS CORP.
