Diagnostic Procedure

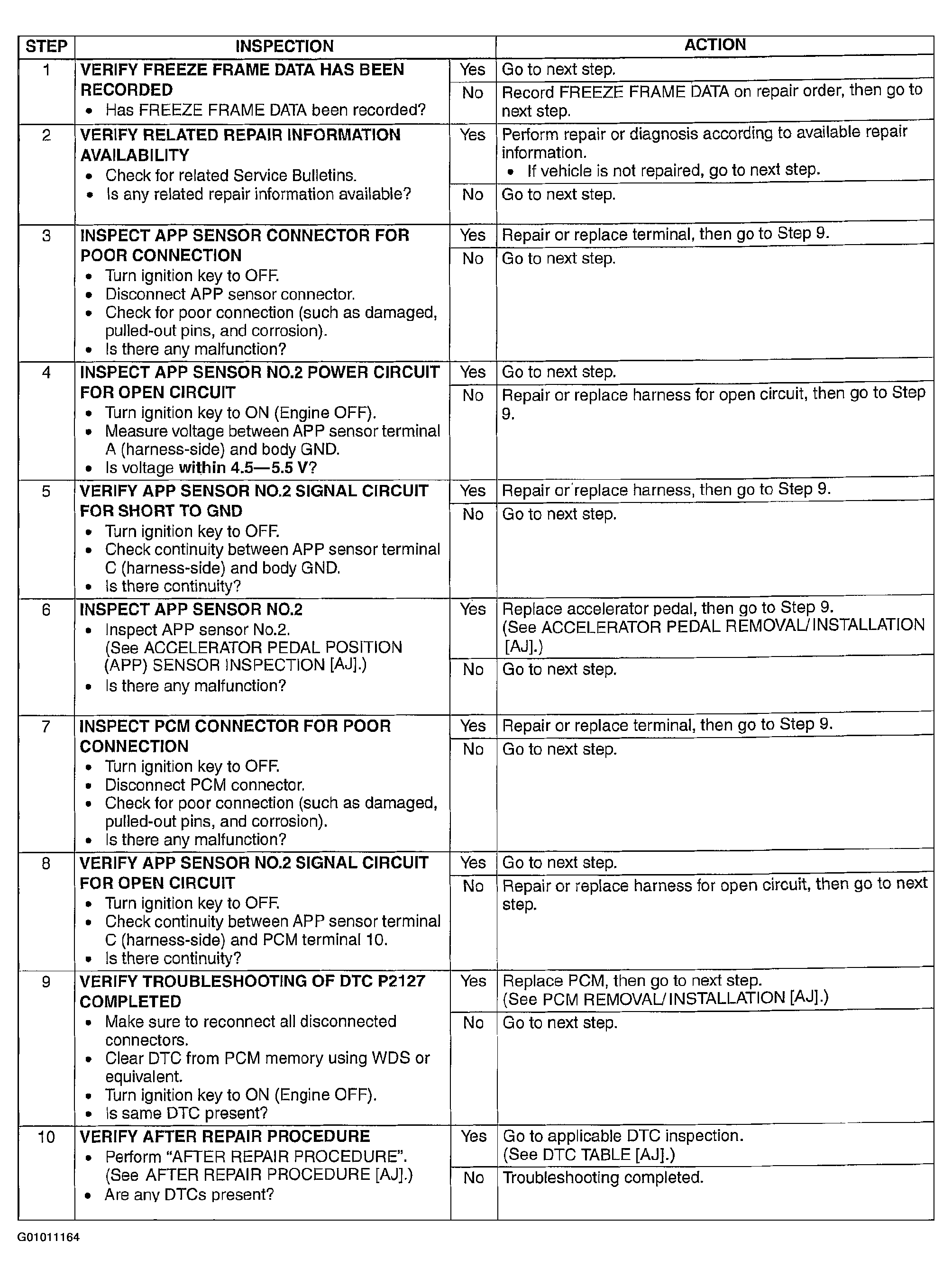

Fig 1: DTC P2127: Diagnostic Procedure Chart
G01011164Courtesy of MAZDA MOTORS CORP.
