On-Board Diagnostic [Engine Control System AJ)
>>
DTC P1410: VAD Control System Circuit Malfunction
>>
Diagnostic Procedure
Diagnostic Procedure

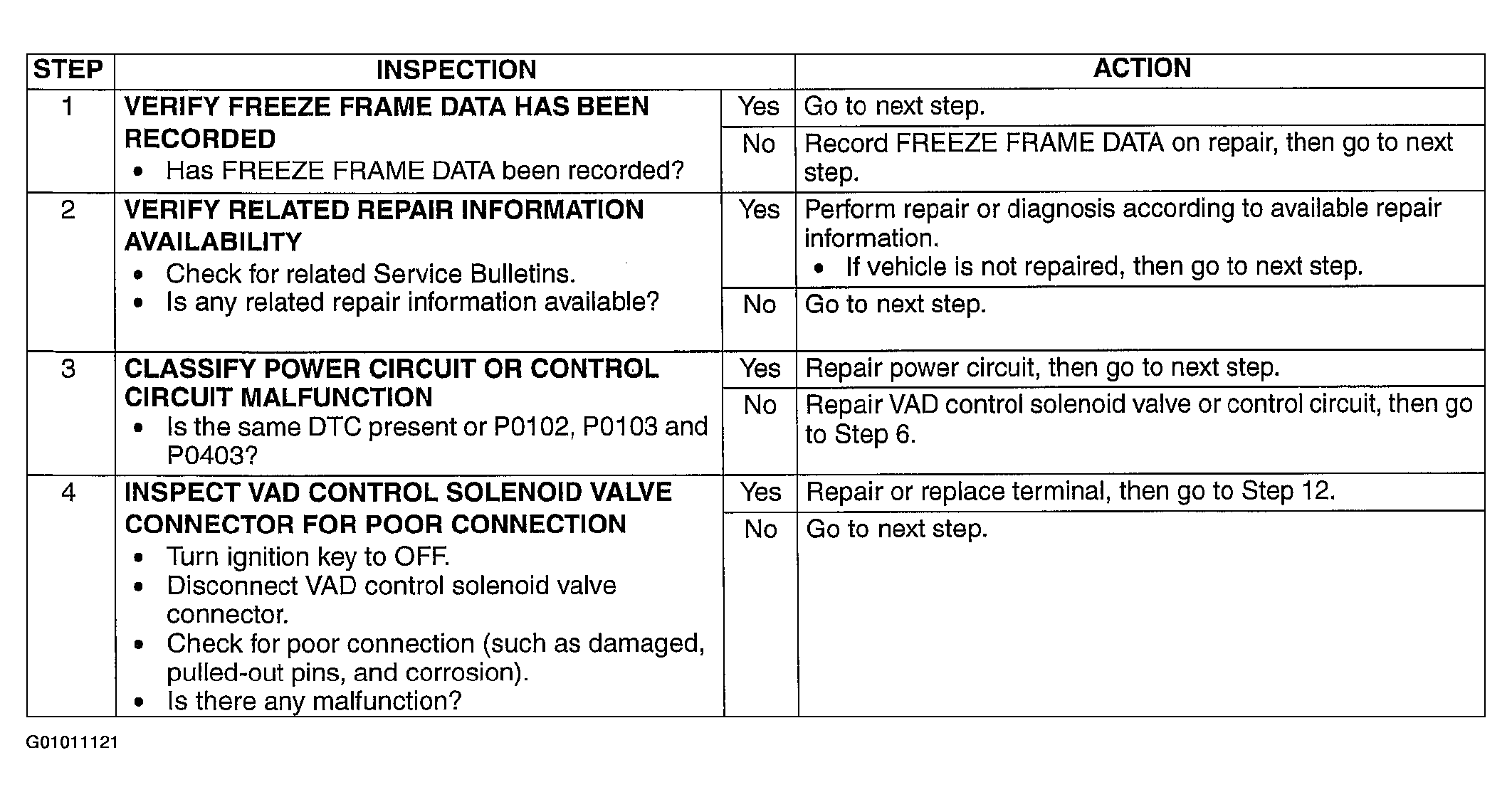

Fig 1: DTC P1410 Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

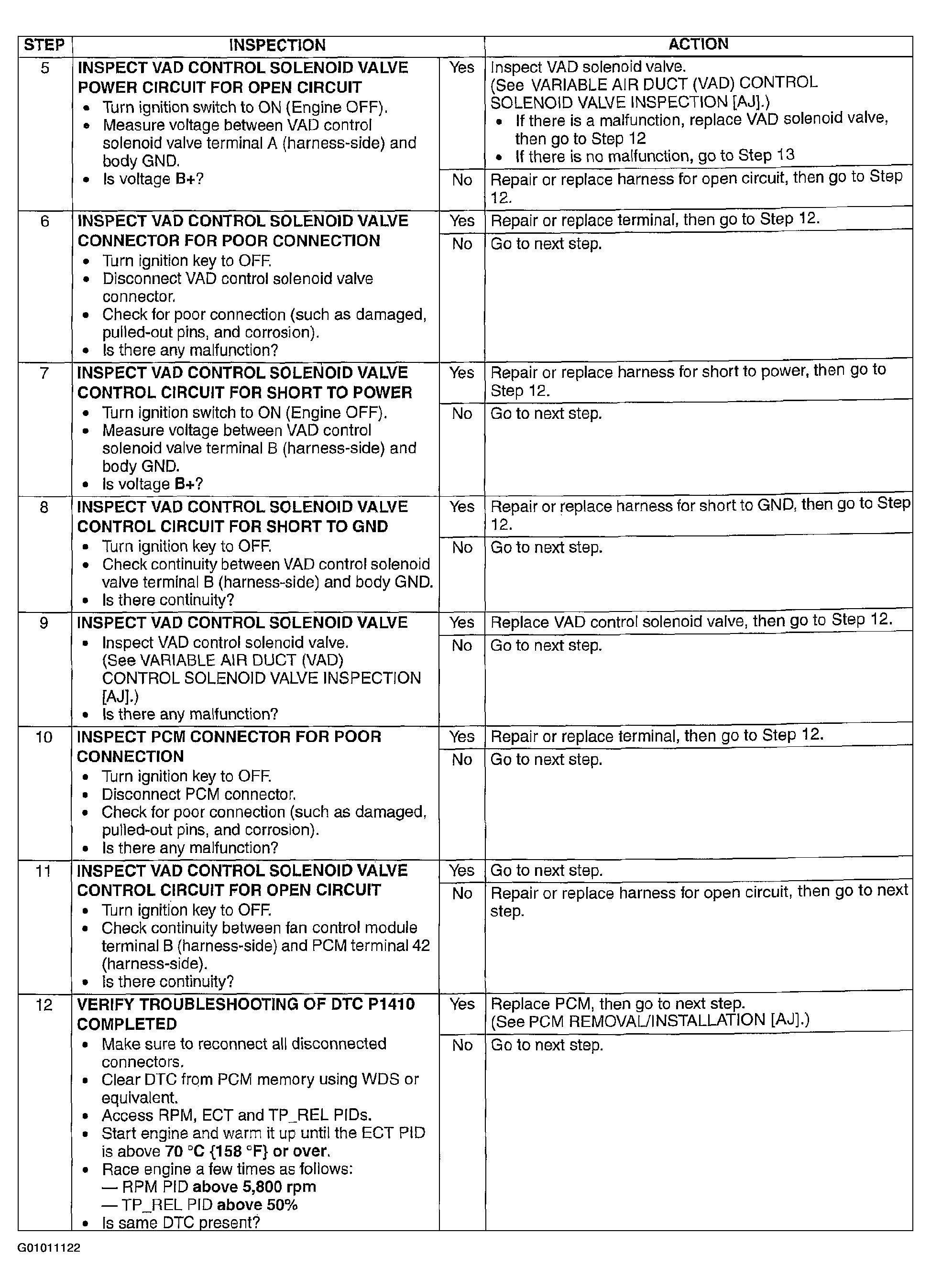

Fig 2: DTC P1410: Diagnostic Procedure Chart (Steps 5-12)
Courtesy of MAZDA MOTORS CORP.

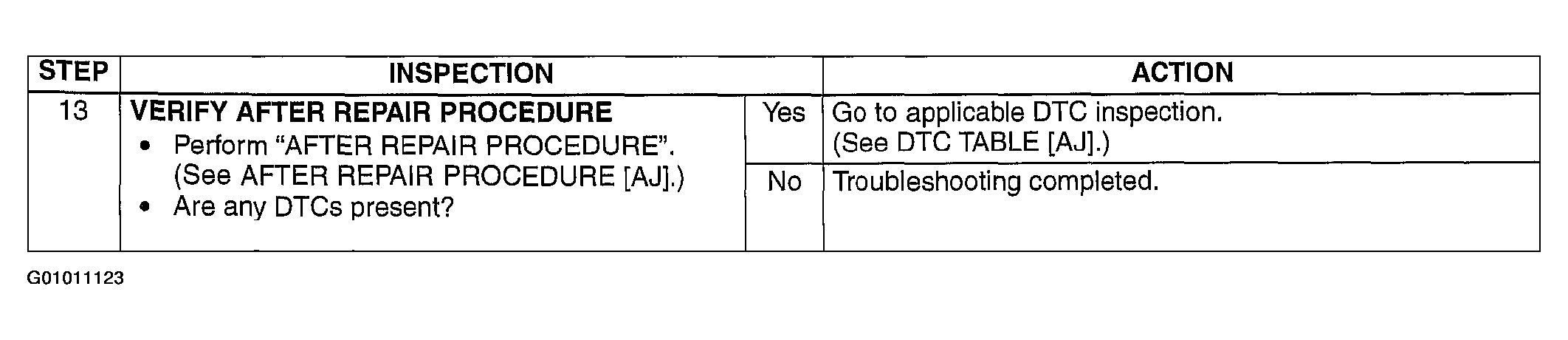

Fig 3: DTC P1410: Diagnostic Procedure Chart (Step 13)
Courtesy of MAZDA MOTORS CORP.
