Diagnostic Procedure

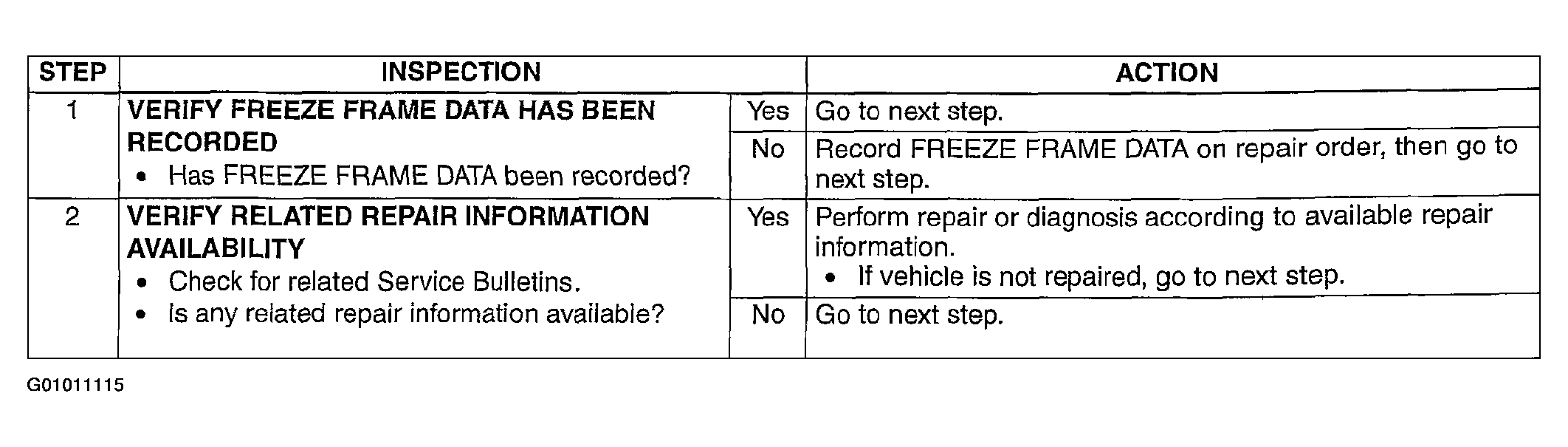

Fig 1: DTC P0850: Diagnostic Procedure Chart (Steps 1-2)
G01011115Courtesy of MAZDA MOTORS CORP.

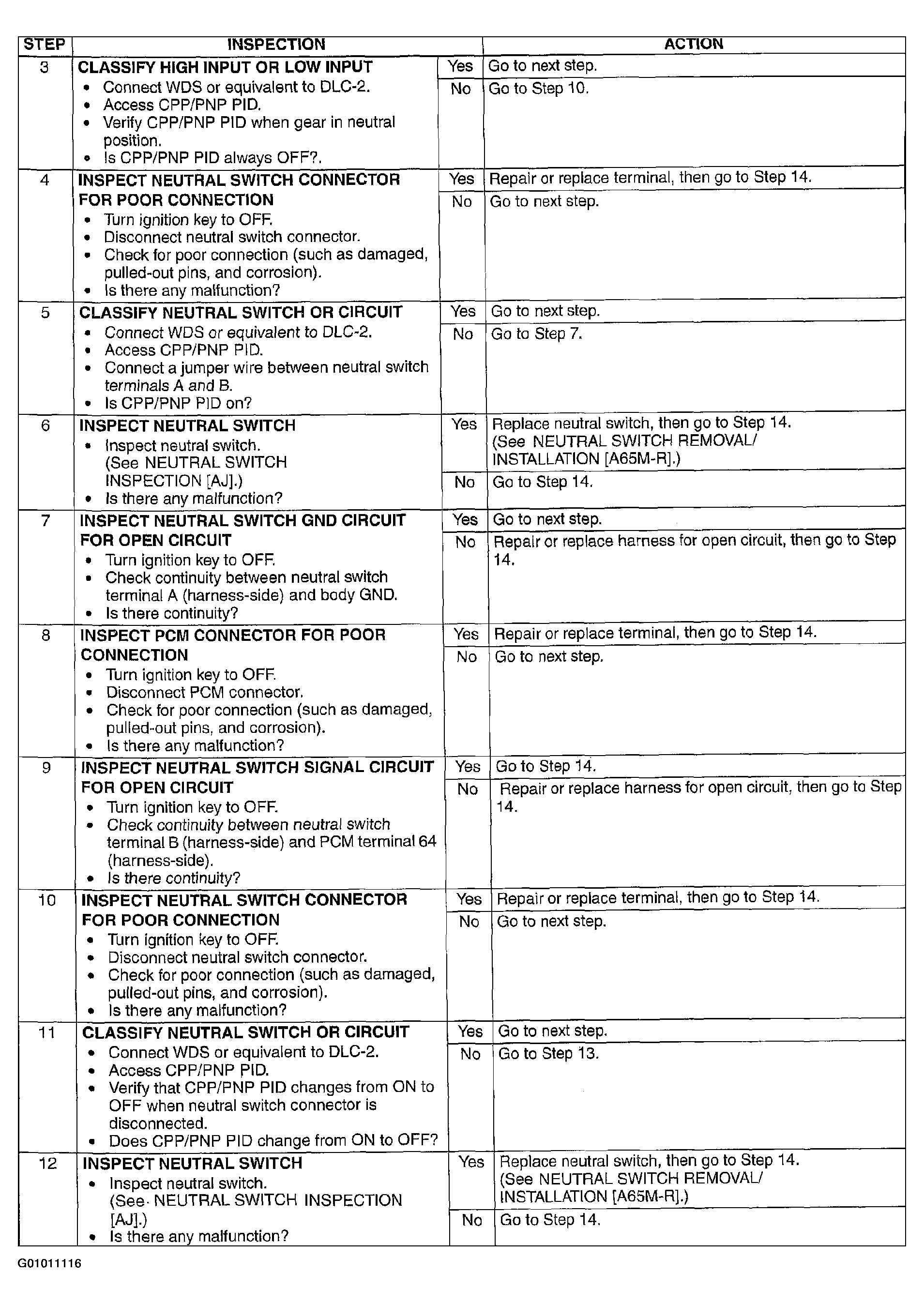

Fig 2: DTC P0850: Diagnostic Procedure Chart (Steps 3-12)
G01011116Courtesy of MAZDA MOTORS CORP.

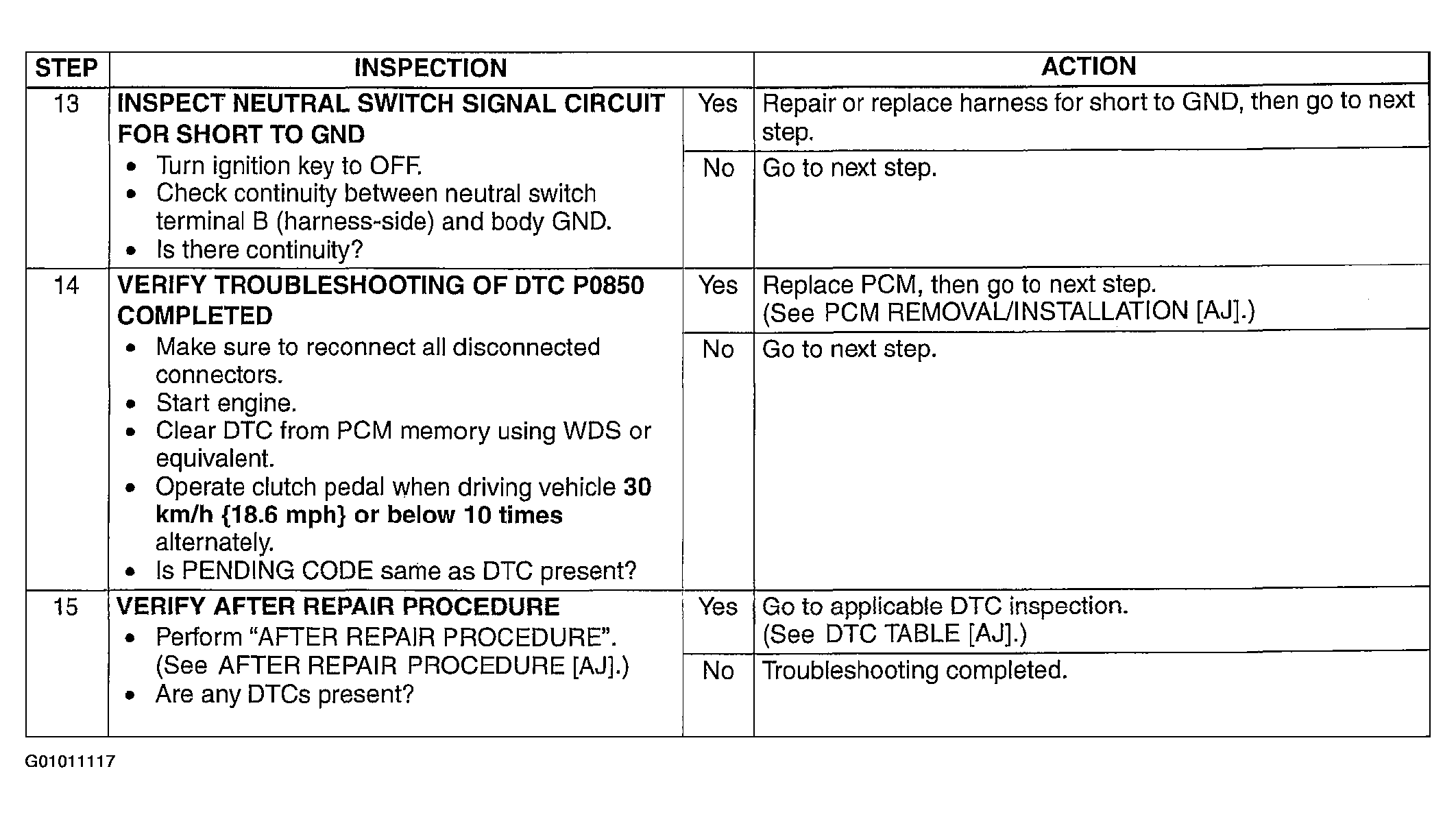

Fig 3: DTC P0850: Diagnostic Procedure Chart (Steps 13-15)
G01011117Courtesy of MAZDA MOTORS CORP.
