Home
>>
Mazda
>>
2004
>>
6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0606: ECM/Pcm Processor
>>
Diagnostic Procedure
Diagnostic Procedure

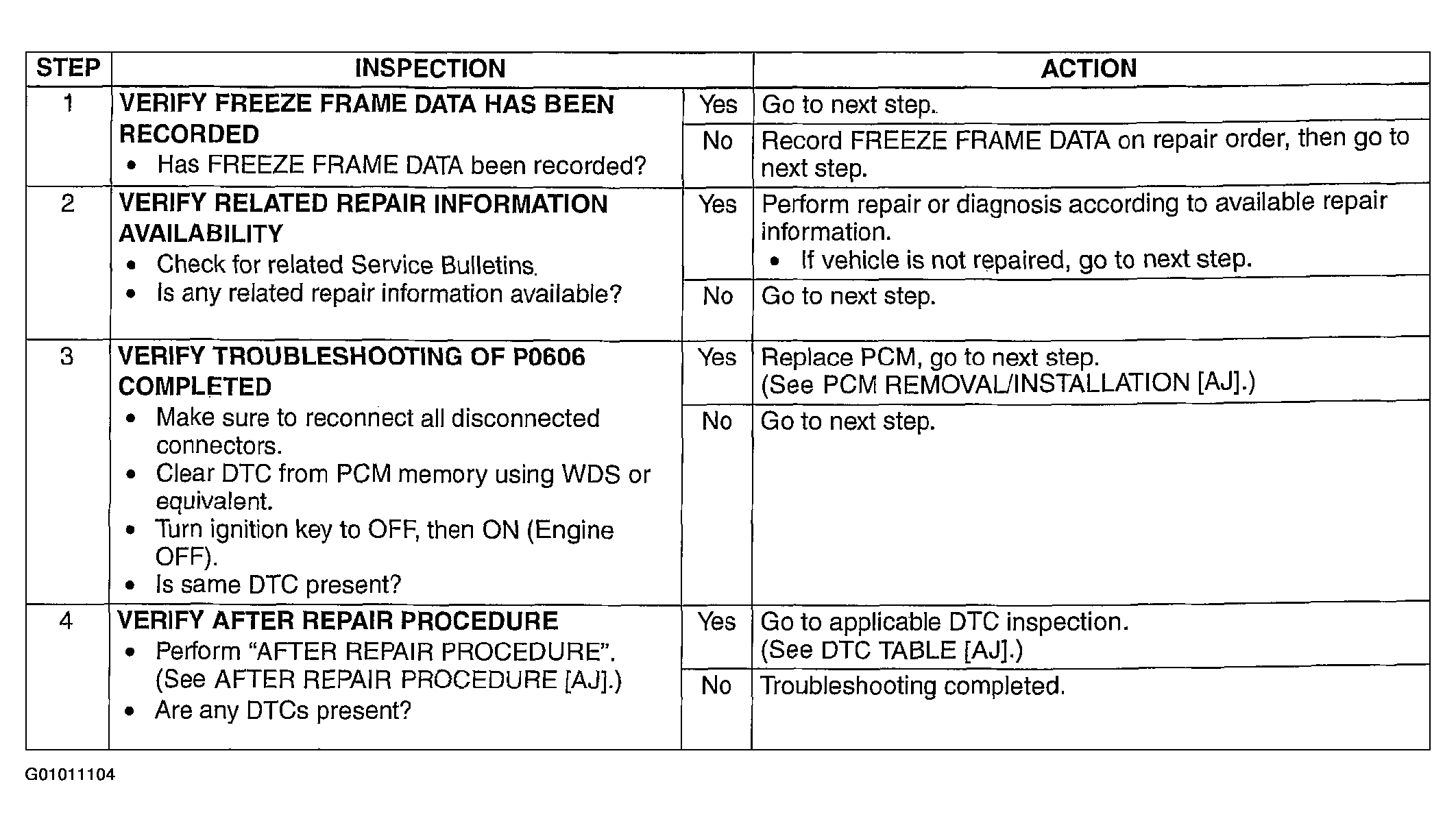

Fig 1: DTC P0606: Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
