6 s, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0505: Idle Control System Malfunction
>>
Diagnostic Procedure
Diagnostic Procedure

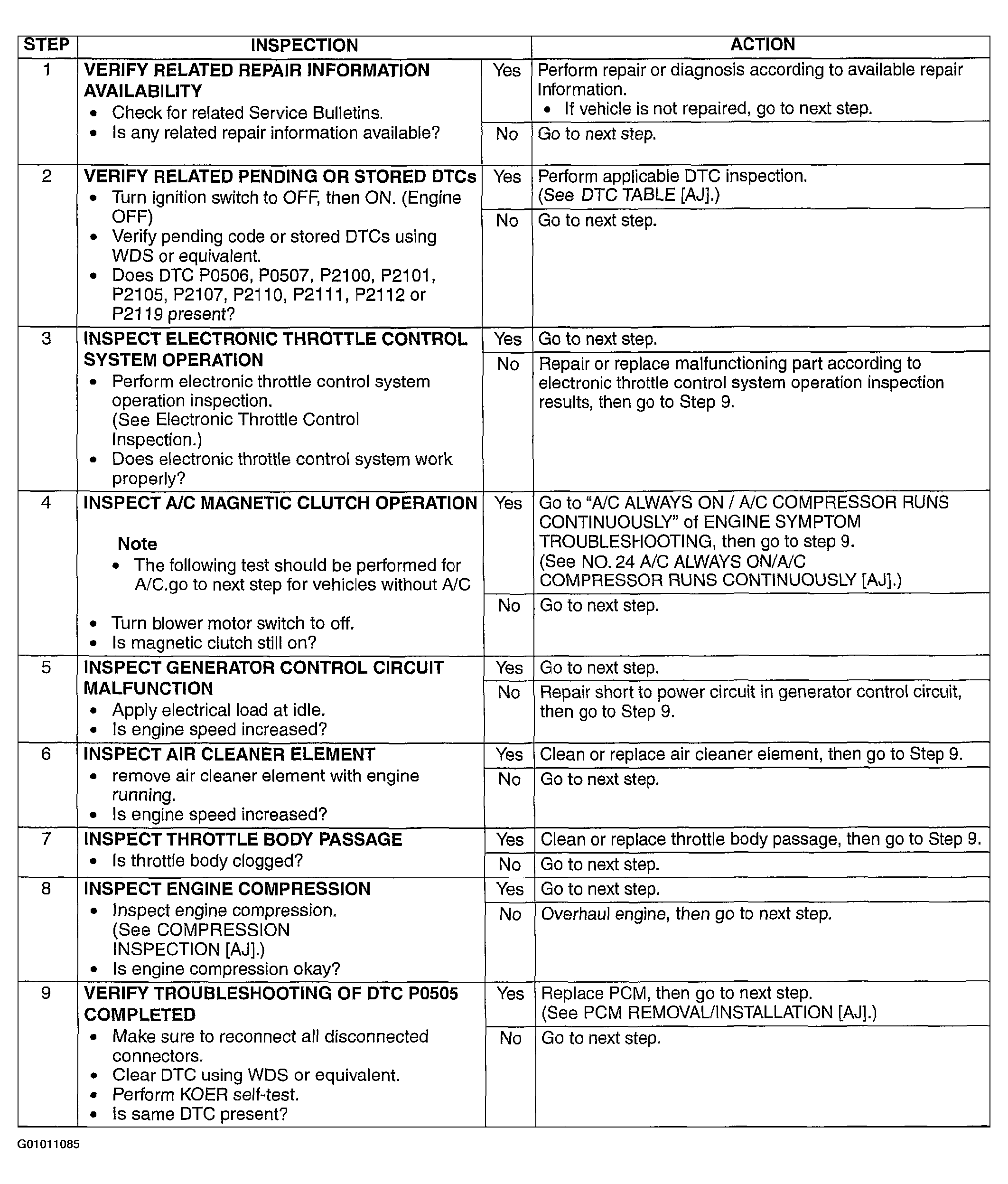

Fig 1: DTC P0505: Diagnostic Procedure Chart (Steps 1-9)
Courtesy of MAZDA MOTORS CORP.

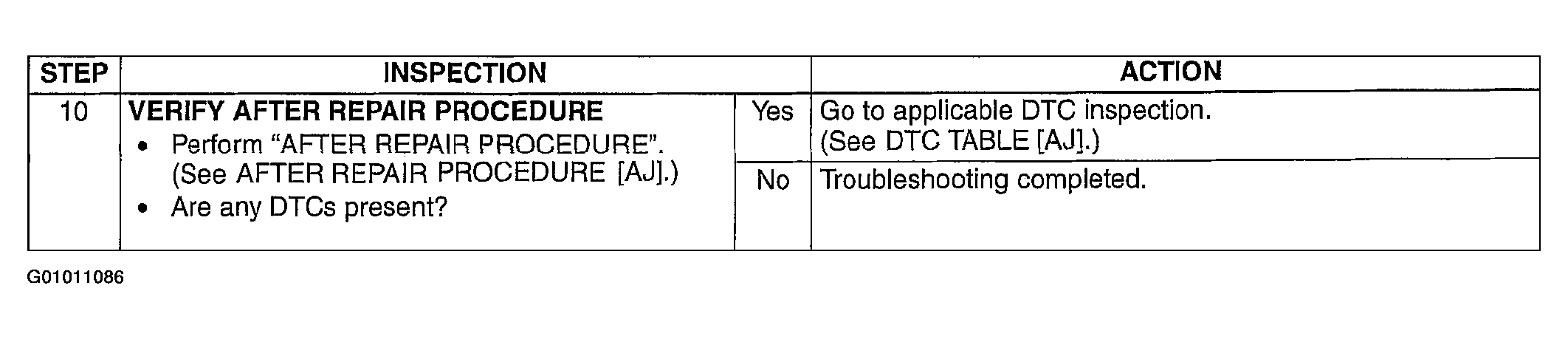

Fig 2: DTC P0505: Diagnostic Procedure Chart (Step 10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
