On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0443: EVAP Control System Purge Control Valve Circuit Malfunction
>>
Diagnostic Procedure
Diagnostic Procedure

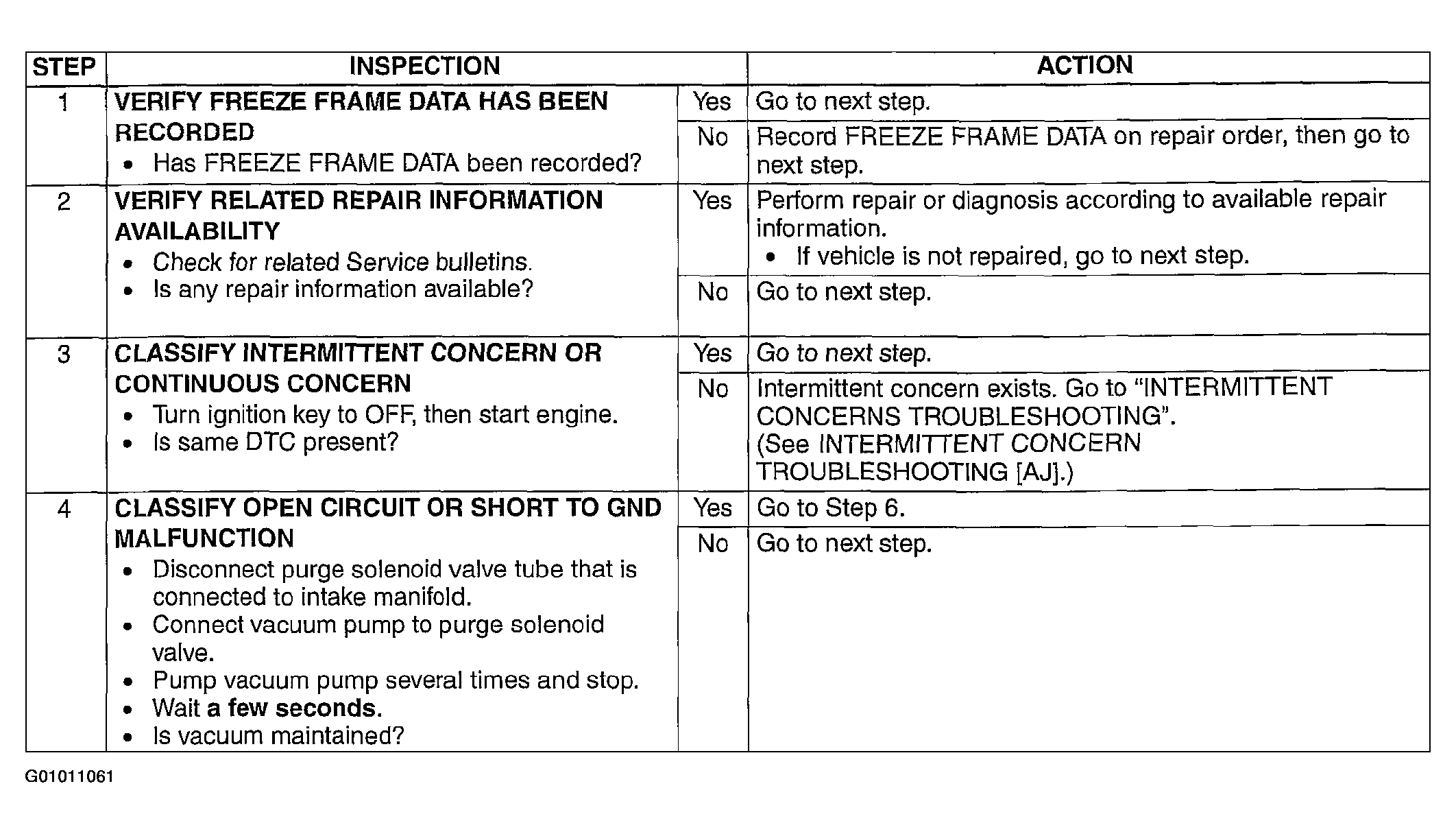

Fig 1: DTC P0443: Diagnostic Procedure Chart (Steps 1-4)
Courtesy of MAZDA MOTORS CORP.

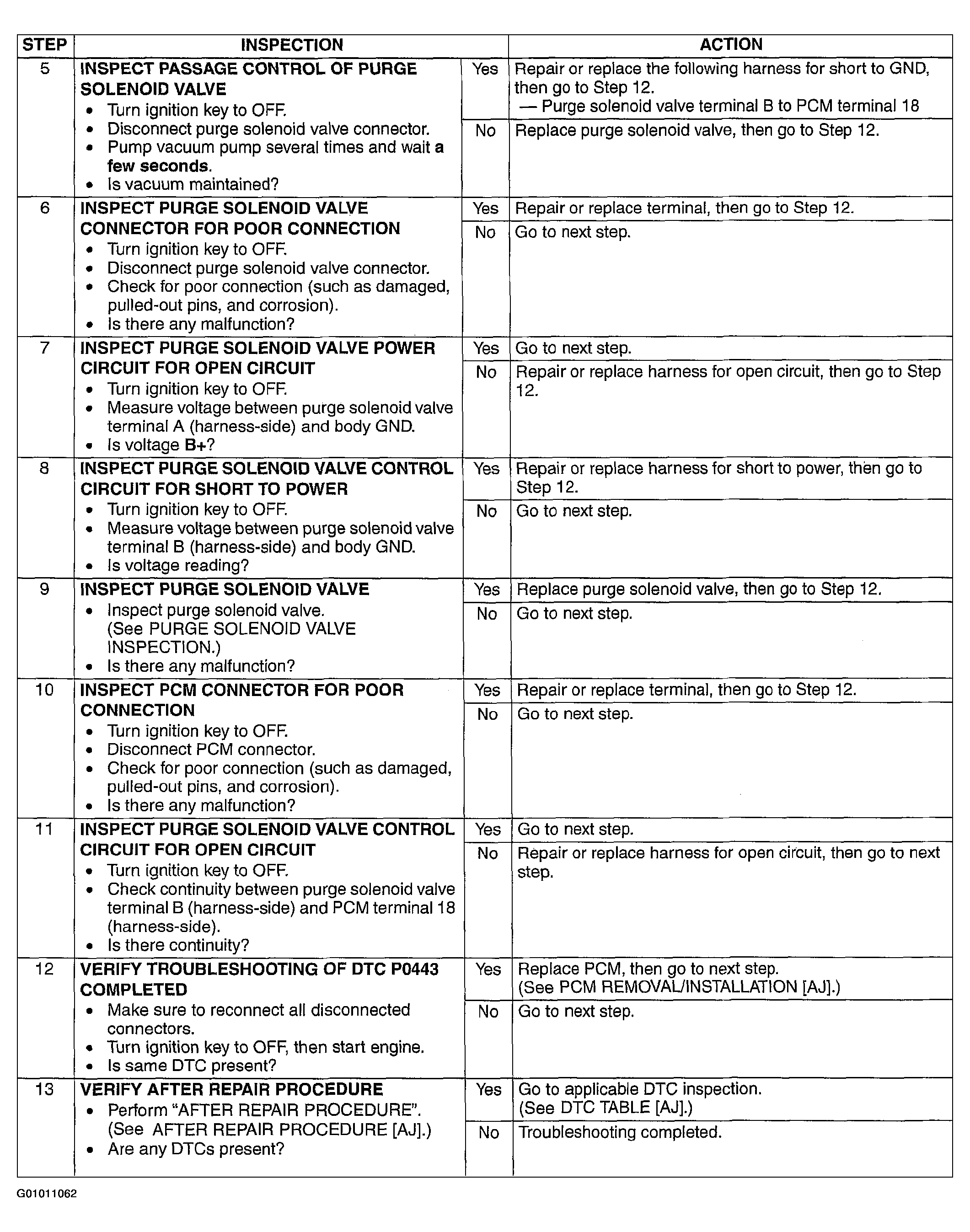

Fig 2: DTC P0443: Diagnostic Procedure Chart (Steps 5-13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
