On-Board Diagnostic [Engine Control System AJ)
>>
DTC P0401: EGR Flow Insufficient Detected
>>
Diagnostic Procedure
Diagnostic Procedure

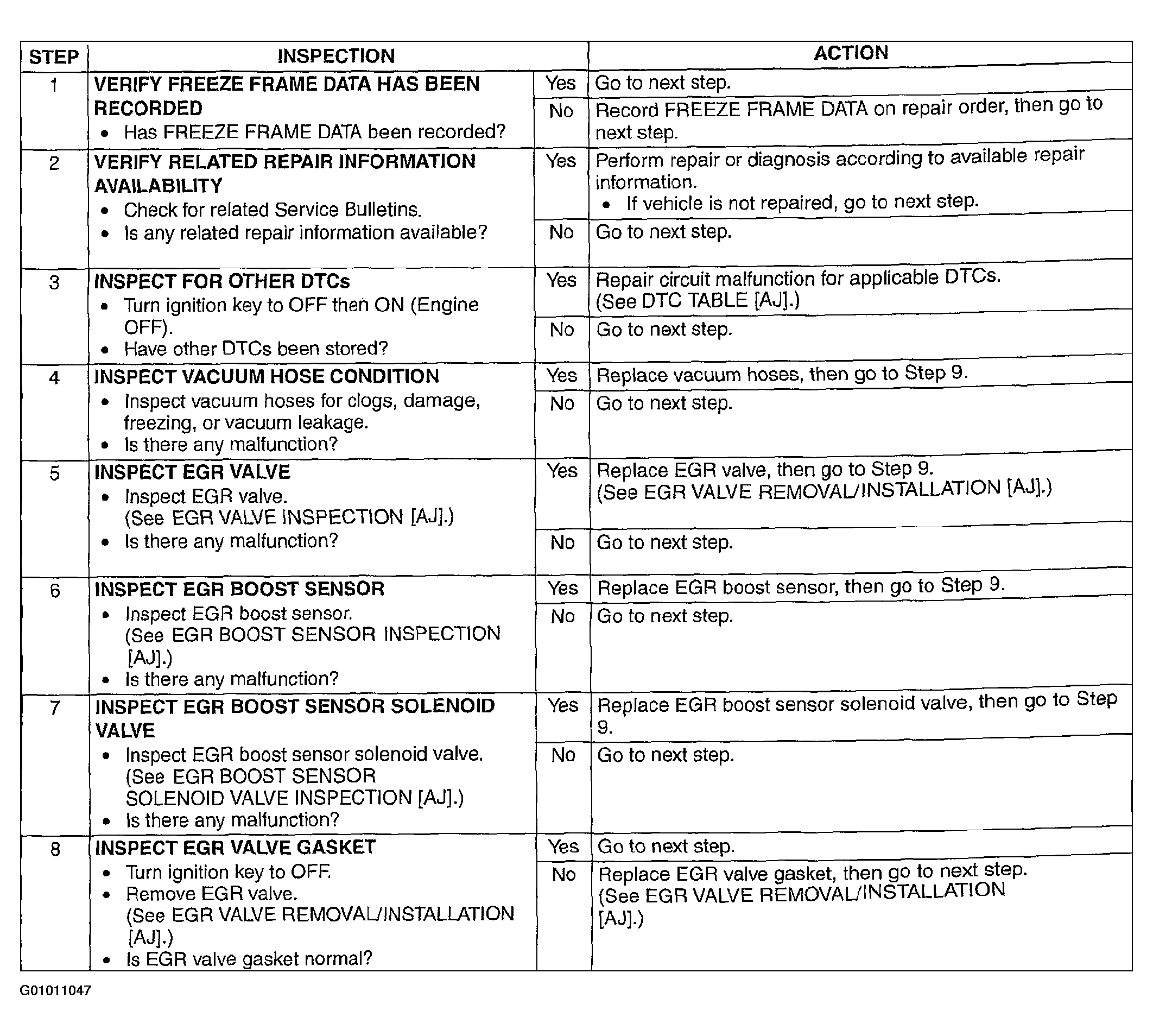

Fig 1: DTC P0401: Diagnostic Procedure Chart (Steps 1-8)
Courtesy of MAZDA MOTORS CORP.

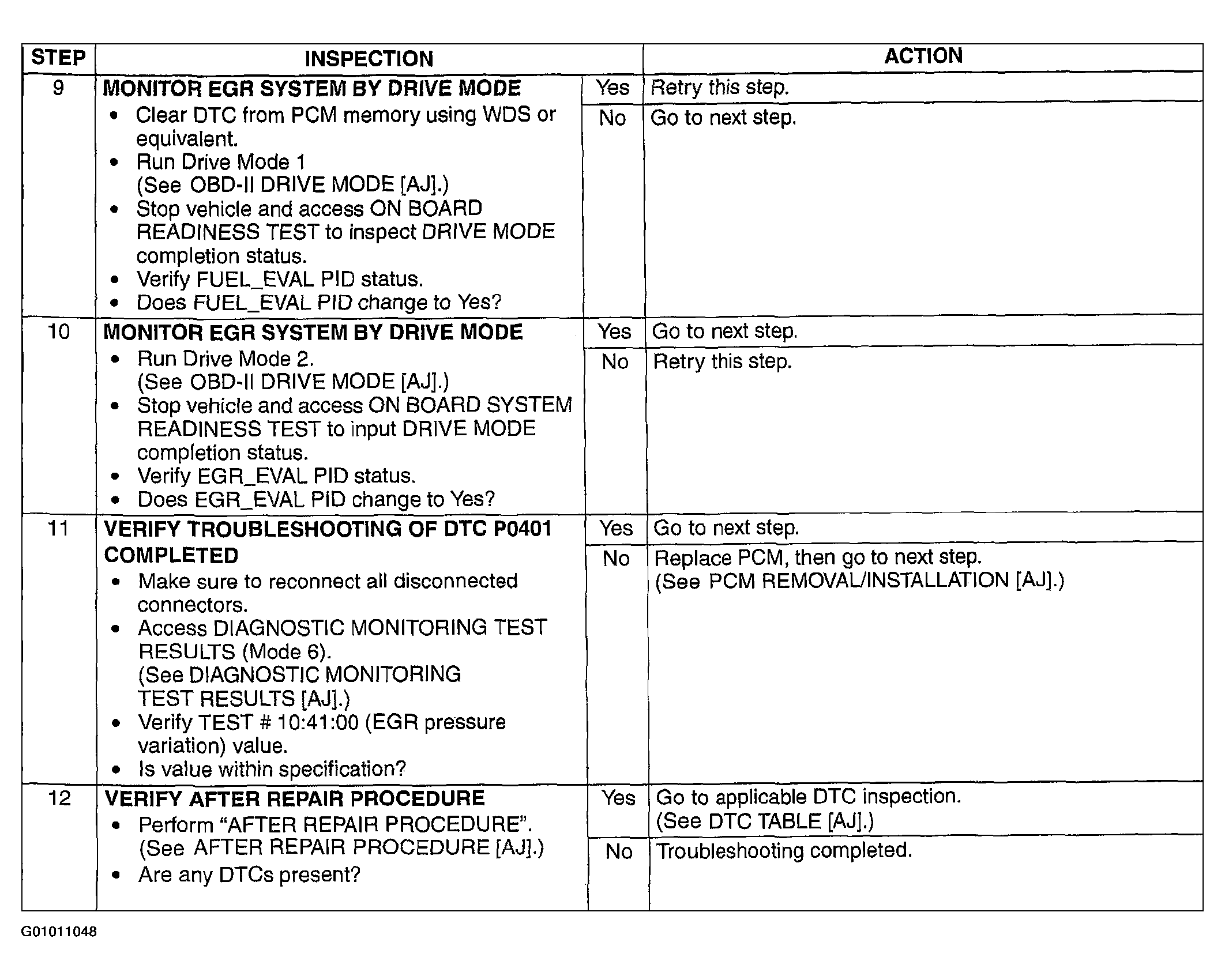

Fig 2: DTC P0401: Diagnostic Procedure Chart (Steps 9-12)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
