Home >> Mazda >> 2004 >> 6 s, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ) >> DTC P0132 & P0152: Ho2S (RF) Circuit High Input >> Notes

DTC P0132 & P0152: Ho2S (RF) Circuit High Input: Notes

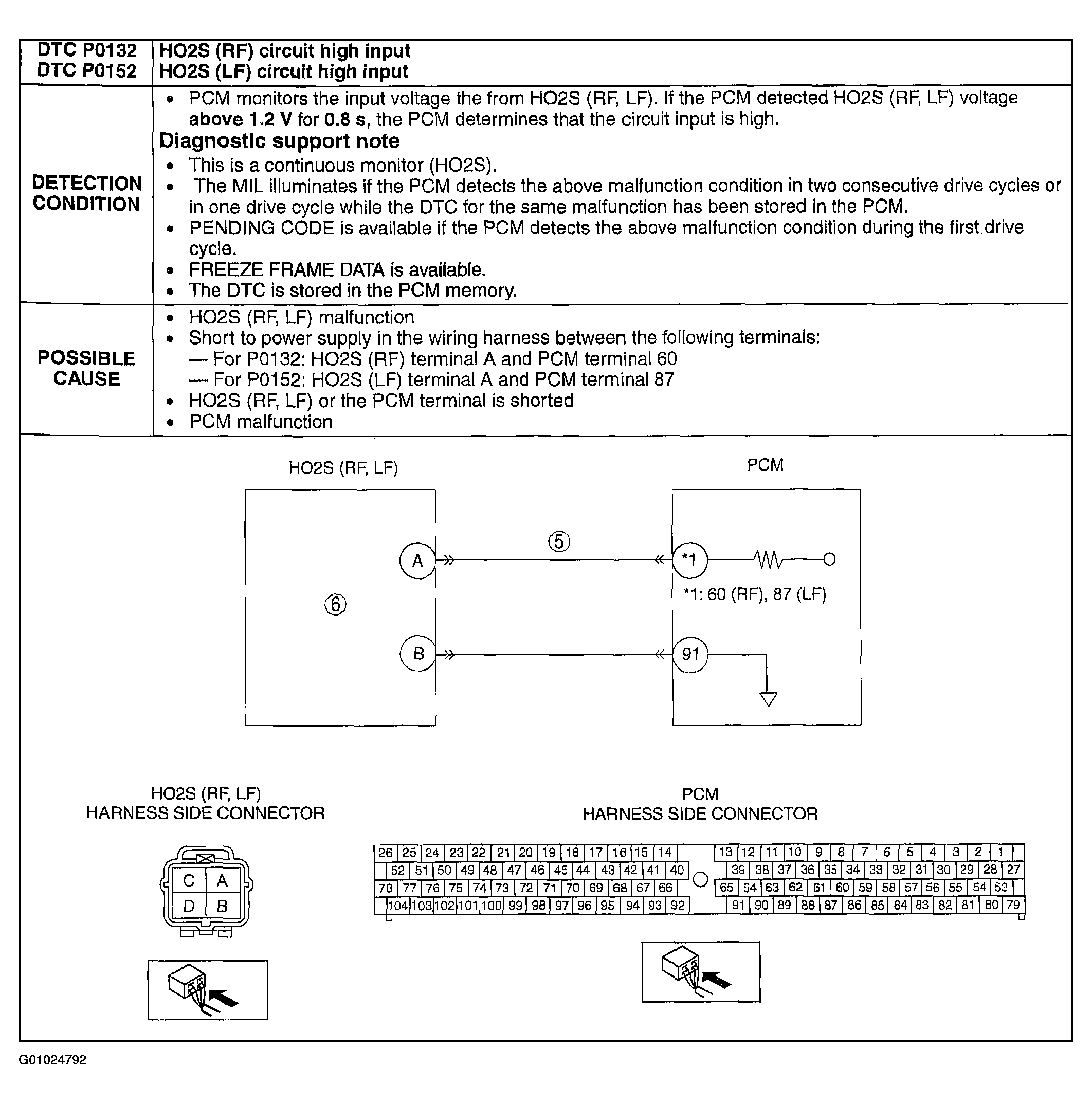

Fig 1: DTC P0132 & P0152: Detection Condition & Possible Causes Chart

G01024792

Courtesy of MAZDA MOTORS CORP.
